HD Active Video Balun
Model
TT-4501T
Features
1. Power supply: 12VDC input;
2. Plug & Play, real
e transmit HD-CVI/TVI/AHD/CVBS signals, more clear, more stable;
3. Unique Design: ABS engineering plas
4. Connectors: Male BNC connectors for coax, and with push-pin terminals.
Overview

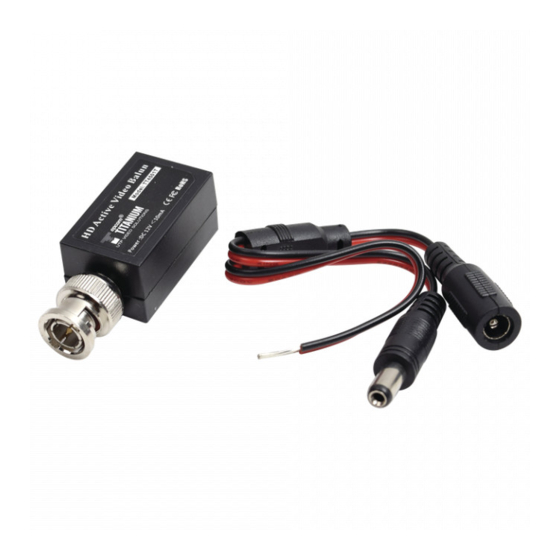

TT4501T is single channel HD active UTP Video Transmitter over Cat5e/6, compatible with HD-CVI/TVI/AHD/CVBS analog cameras. It is widely applied to
the field of CCTV Video Transmission.
HD Picture
ase, Classic and elegant;
HD Active Video Balun
Advertisement
Related Manuals for epcom TITANIUM TT-4501T
Summary of Contents for epcom TITANIUM TT-4501T
- Page 1 HD Active Video Balun Model TT-4501T Features 1. Power supply: 12VDC input; 2. Plug & Play, real e transmit HD-CVI/TVI/AHD/CVBS signals, more clear, more stable; 3. Unique Design: ABS engineering plas ase, Classic and elegant; 4. Connectors: Male BNC connectors for coax, and with push-pin terminals.
- Page 2 HD Active Video Balun Installation steps 1.Before installation, please check the devices and accessories as blow included in the package; If not, please contact with the manufacturer directly. TT4501T 2) User Manual 2. Please follow the below steps for installation. 1) Power off, make sure no damage for the device；...
- Page 3 HD Active Video Balun Trouble shooting If something has gone wrong with the device, please follow up the below steps to solve the problems: 1) Check whether the connection is well or not according to the user manual； 2) Check whether the UTP cable connect well or not, with open circuit or not, and the pin connection table of transmitter and receiver right or not； 3) Check the transmission distance is no more than the max transmission distance；...
- Page 4 HD Active Video Balun Application Diagram HD Active Video Balun...
