Summary of Contents for DENTIUM ICT MOTOR

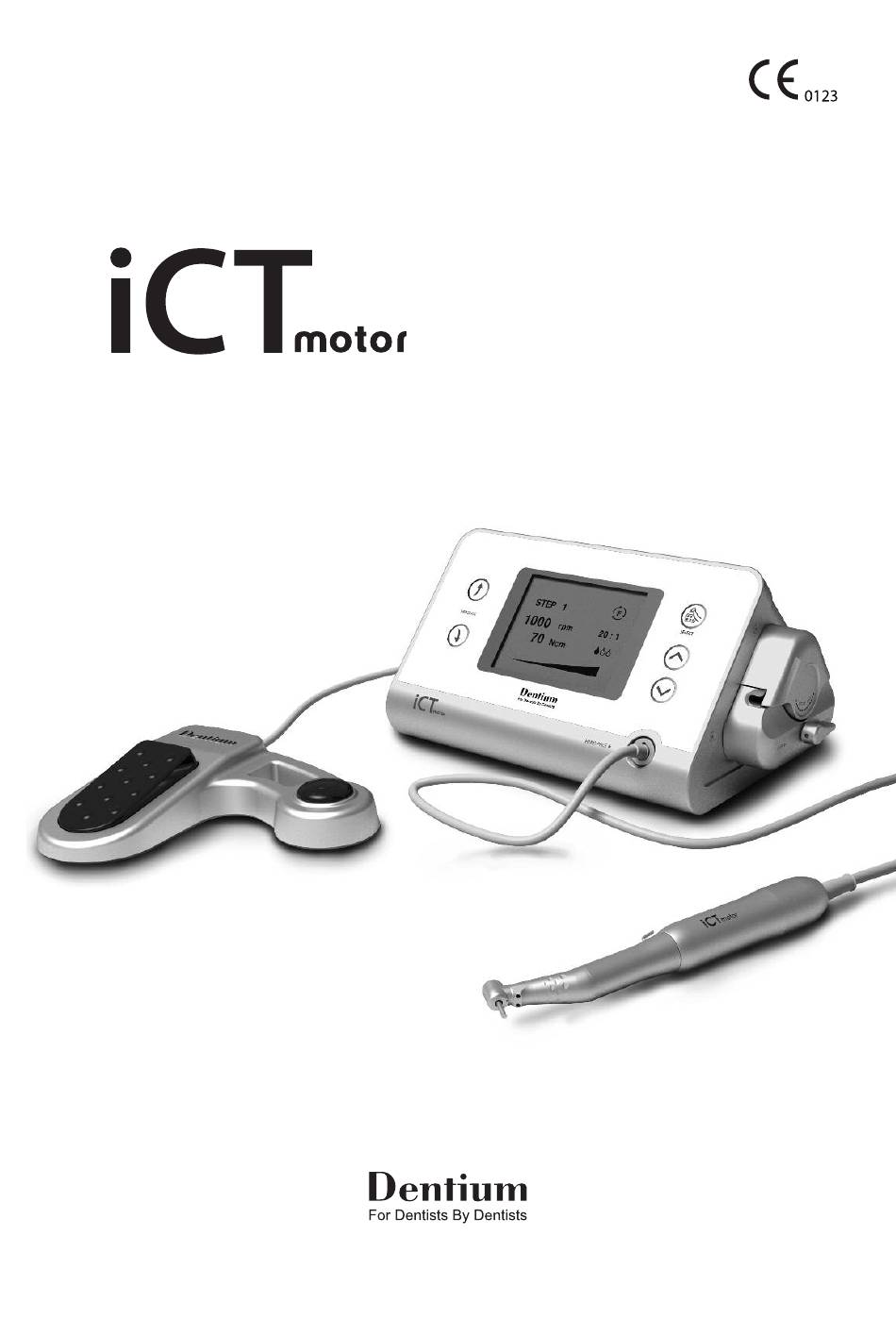

- Page 1 Operating Instruction...
-
Page 2: Table Of Contents
13. Electromagnetic compatibility Dear Customers The iCTmotor from Dentium is a driving engine for dental handpiece, designed for dentists to perform dental surgery and implantology. The main unit is designed to operate a specific dental micromotor that drives dental handpiece fitted with appropriate tools to cut hard and soft tissues in the mouth and to screw dental implants. -
Page 3: Safety Guidelines
NOTIFICATION Indication for use The Dentium surgical micromotor iCTmotor and Implant system, are microprocessor driven surgical micromotors used in implantology procedures. The Dentium surgical micromotors iCTmotor, consists of a microprocessor controlled unit, foot pedal, electric micromotor, support rods and sterile, disposable, irrigation tubes. -
Page 4: Components
Operating Instruction iCTmotor 4 3. Components ① ② ③ ④ ⑤ ⑥ ⑦ Name Quantity Main body(Including irrigation pump) Foot controller ① Micromotor(Including cable) ② Irrigation Stanchion ③ AC power cable ④ Sterilization cap ⑤ Tube holder ⑥ Handpiece rack ⑦... -
Page 5: Technical Specification
5 Operating Instruction iCTmotor 4. Technical specification Main body: 25(W)×17(D)×14(H) cm Dimension Micromotor: Ø2.6×13.4 (L) cm Foot controller: 18(W)×16(D)×3.8(H) cm Main body: Plastic Material specification Foot controller: Plastic Micromotor: Aluminum Main body: 2.5 kg Weight Foot controller: 0.45 kg Micromotor: 0.4 kg Rotational speed: 20 - 2000 rpm Speed and torque range Rotational torque: 5 - 70 N·cm... -
Page 6: Components Description
Operating Instruction iCTmotor 6 5. Components description 5.1 Main body (iCTmotor(WH-1) ※ Actual components may look different with this drawing. Program(STEP) up Mode / Memory Program(STEP) down Data up Data down Handpiece connector Irrigation pump stanchion hole Open / Close lever Power socket Power switch Foot controller socket... -
Page 7: Foot Controller
7 Operating Instruction iCTmotor 5. Components description 5.2 Foot controller Foot connector Program(STEP) shift Foot switch 5.3 Micromotor Micromotor connector Handpiece adaptor Micromotor... -
Page 8: Product Installation
Operating Instruction iCTmotor 8 6. Product installation 6.1 Power connection WARNING • Dry your hand completely before connecting the power cable • This product has the Free voltage function (AC100-240V~ 50/60Hz) • To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth ❖... -
Page 9: Connection Of Irrigation Tube Of Handpiece
9 Operating Instruction iCTmotor 6. Product installation 6.3 Connection of irrigation tube of handpiece WARNING • More detailed information on the handpiece can be referred to the user manual of handpiece or contra-angle provider • The irrigation tube is a disposable. Do not reuse it. 6.4 Connection of components WARNING •... - Page 10 Operating Instruction iCTmotor 10 6. Product installation ❖ Connection of 1) Align the foot connector key with the socket and then insert it.[Figure-10] 2) Turn the tightening nut clockwise. foot controller [Figure-10] ❖ Foot controller 1) Turn the tightening nut counterclockwise. 2) When disconnecting, Grab and pull the tightening nut.
-
Page 11: Operation
11 Operating Instruction iCTmotor 7. Operation 7.1 Turn on the unit Power switch (I/O) can be found in the back side of the product. Press “I” side down. 7.2 Control panel functions Button Description of Function Move the user program (“STEP”) up Move the user program (“STEP”) down Activate the data mode to initiate program modification and save the changed data Increase the data cursor is on... -
Page 12: Program Choice And Modification
7.4 Program choice and modification iCTmotor provides you with the optimized program solution for each STEP of protocol for the Dentium implant installation as default from the factory as below <Table-1>. This program can be changed by the user according to preferences. -
Page 13: Program Change And Save
13 Operating Instruction iCTmotor 7. Operation 7.5 Program change and save WARNING All program changes completely after stopping the operation of the machine must be running. ❖ Change STEP 1) Program button “ ” will move the steps upward (STEP 1-2-3-4-5-6) - If you press the button continuously, steps will rotate. -
Page 14: Change Direction
Operating Instruction iCTmotor 14 7. Operation ❖ Change direction 1) Press the SELECT “ ” button to active the cursor 2) Move the cursor to the rotating direction change sector by pressing the “SELECT” button repeatedly. 3) Press “ ” or “ ” button to change direction. 4) Press “SELECT”... -
Page 15: Change The Irrigation Amount
15 Operating Instruction iCTmotor 7. Operation ⑧ Compatible contra-angles are summarized in the Table-4. Follow the instructions of respective manufacturer for the maintenance or detailed practical usage. Manufacturer Model Gear ratio Maximum torque W&H(Austria ) WI–75 E/KM 20 : 1 5 - 70 N cm Bien-Air(Swiss) CA20 : 1... -
Page 16: Foot Controller
Operating Instruction iCTmoto 16 7. Operation ❖ Foot controller Standard Option ⑧ The device makes short beep sounds when the actual torque value reaches 90% of the target torque value. Once torque value reaches 100% of the target torque, the device makes long beep sound and the Micromotor will stop in 0.5 second. -
Page 17: Sterilization
17 Operating Instruction iCTmotor 8. Sterilization Please follow the instructions in the below to prevent secondary infection due to contamination of the equipment. WARNING • Sterilize and clean the equipment before operation. • When sterilizing with high-pressure steam, wrap and seal the equipment with the sterilizing pouch. -
Page 18: Cleaning And Storage
Operating Instruction iCTmotor 18 9. Cleaning and storage WARNING • Electrical components MUST be disconnected with the A/C power when cleaning. • DO NOT bend the power cabel, micromotor cable or foot controller cable. • AVOID cleaning the device and sub-components using the compressed air by nozzle. 9.1 Main body and foot controller 1) Wash outside of the equipment body only by using 80% of ethylic alcohol or the exclusive cleaning solution for prevention of microbial infection. -
Page 19: Maintenance
• In case any abnormal condition occurs, such as unusual noise or over-heating of the components, please stop using the product and contact the nearest authorized Dentium dealer for technical support. • It generally applies that disposal of this product must comply with the relevant national regulations. -
Page 20: Trouble Shooting During Operation
Operating Instruction iCTmotor 20 11. Trouble shooting during operation WARNING • Device check up must be done in the environment of no water or moisture. • Power must be off for trouble shooting process. • Below <Table-6> shows simple troubles thats user can fix. If none of the below optipons correct the problem, please contact the nearest authorized dealer. -
Page 21: Labeling Description
21 Operating Instruction iCTmotor 12. Labeling description 12.1 Symbol description B type (Handpiece part) Follow instructions for use Use separate collection for the terminated electric and Manufacturer electronic equipment Europe Representative CE Marking Protection earth Earth Caution Caution and warning Moving Machinery... -
Page 22: Label-Displaying Position
Operating Instruction iCTmotor 22 12. Labeling description 12.2 Label-displaying position ❖ Main body (front) ※ Actual settings may differ from image shown. Hand-piece Hand-piece ❖ Main body (Rear) Fuse Foot controller ❖ Micromotor Micromotor Sterilizable at 134... -
Page 23: Electromagnetic Compatibility
23 Operating Instruction iCTmotor 13. Electromagnetic compatibility 13.1 Guidelines and manufacturer's declaration-electromagnetic emissions The model iCTmotor is intended for use in the electromagnetic environment specified below. The customer or the user of the model iCTmotor should assure it is used in such an environment. Emissions test Compliance Electromagnetic environment-guidance... - Page 24 Operating Instruction iCTmotor 24 13. Electromagnetic compatibility 13.2 Guidance and manufacturer's declaration-electromagnetic immunity: The Model iCTmotor image intensifier is intended for use in the electromagnetic environment specified below. The customer or the user of the Model iCTmotor image intensifier should assure that it is used in such an environment.
- Page 25 25 Operating Instruction iCTmotor 13. Electromagnetic compatibility 13.3 Guidance and manufacturer's declaration-electromagnetic immunity The Model iCTmotor image intensifier is intended for using in the electromagnetic environment specified below. The customer or the user of the Model iCTmotor should assure that it is used in such an environment IEC 60601 Conformance Immunity test...
- Page 26 Operating Instruction iCTmotor 26 13. Electromagnetic compatibility 13.4 Recommended separation distances between portable and mobile RF communications equipment and the Model iCTmotor: The Model iCTmotor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Model iCTmotor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Model iCTmotor as recommended below, according to the maximum output power of the communications equipment.
- Page 27 1) Warranty Information. 1) Dentium Co., Ltd warrants to the original purchaser that Dentium iCT and accessories are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase and continuing for the specified period of time of 1 year.
- Page 28 IMOIE-1310 [Rev.3] Dentium Co., Ltd. HEAD OFFICE: 3105 Trade Tower 159, Samsung-dong, Gangnam-gu, Seoul, Korea (135-729) T +82-2-501-8560 F +82-2-567-9578 Manufacturer: 209,501, 502, 504 R&DB Center 906-5, Iui-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea (443-766) www.dentium.com...
