Specifi cations
Setpoint Range
AG1 Series: 5-100mA Field Adjustable
AG2 Series: 80-950mA Field Adjustable
AG3 Series:
Tri-Set, 5, 10 & 30 mA, Jumper
Select
Voltage Range
Up to 1,500 VAC (Monitored Circuit)
Frequency Range
50-400Hz (Monitored Circuit)
Output Options
(See Product Label)
Solid State AC Detector
1A @ 240 VAC (2A for 10 Min.)
Solid State DC Detector
0.15A 30 VDC (500mA
momentary)
Response Time
150 mS @ 5% above setpoint.
100 mS @ 50% above setpoint.
Power Supply
120 VAC (50-400 Hz) (66-132 volts)
2.5 VA consumption
240 VAC (50-400 Hz) (200-240 volts)
2.9 VA consumption
24VAC or VDC (19-28 volts)
2.5VA consumption
Green LED=Power supply energized
Dimensions
2.5"H x 2.8"W x 1.5"D, (64x71x38mm),
aperture 0.75" (19mm) dia. (See Diagram)
Case
UL 94V-O Flammability Rated
Environmental
-4 to122° F (-20 to 50 °C),
0-95% RH, Non Condensing
Listings
UL 1053, Class 1 Recognized, CE Certifi ed
(Not all option combinations are recognized.
See product label)
Power Supply Notes
All low-current Ground-Fault Detectors are sensitive devices
that require reasonable care in system design to avoid false
trips caused by high electrical noise levels. Keep in mind
that the best way to reduce noise in a system is to suppress
it at its source.
1. Keep the detector power isolated from noisy circuits.
2. Do not power the detector with the same circuit which pow-
ers contactors or other high current, inductive loads.
System Grounding
Good design practice and code require that all AC power
systems be grounded. AG Series detectors are designed to
work on grounded AC power systems. They may not operate
properly on ungrounded systems.
Model Number Key
AG1-NCAC-120 -FS - 005
Setpoint
005 to 950
TR3
Options
FS
Normally Energized
NF
Normally De-energized
Power Supply
24U 24 VAC/DC
120 120 VAC
240 200-240 VAC
Output Type
NCAC
Normally Closed 1A @ 240 VAC
NOAC
Normally Open 1A @ 240 VAC
NCDC
Normally Closed 0.15A @ 30 VDC
NODC
Normally Open 0.15A @ 30 VDC
Setpoint Range
1 5-100mA, Adjustable
2 80-950mA, Adjustable
3 Tri-Set, 5, 10 & 30 mA, Jumper Select

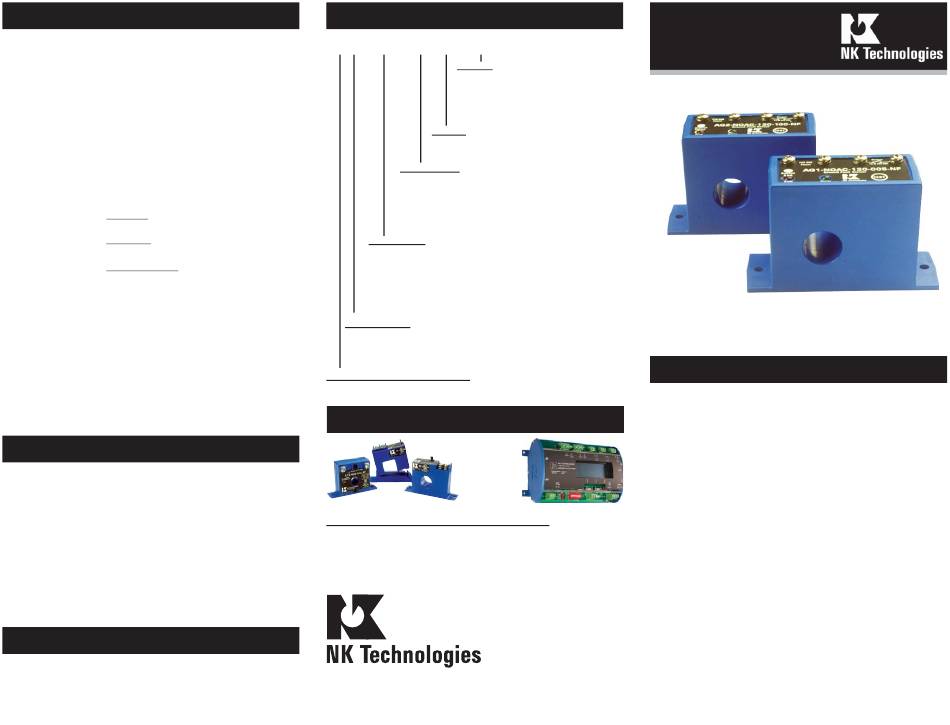

AG Series Ground Fault Detector
Know Your Power
Other NK Technologies Products Include:
AC & DC Current Transducers
AC & DC Current Operated Detectors
1φ & 3φPower Transducers
Current & Potential Transformers (CTs&PTs)
3511 Charter Park Drive, San Jose, CA 95136
800-959-4014 or +1-408-871-7510 Phone
+1-408-871-7515 FAX
sales@nktechnologies.com, www.nktechnologies.com
Factory Adjusted
INSTRUCTIONS
Setpoint in mA (specify
when ordering)
Tri-Set, 5, 10 & 30 mA,
Jumper Select
Quick "How To" Guide
1. Run all current carrying conductors through
detector window
A. Use an auxiliary CT if conductors do not fi t. Consult
2. Mount the detector to a surface if needed.
3. Connect output & power wiring.
A. Use 22 to 14 AWG copper wires.
B. Make sure load matches the output shown on the
C. Make sure power supply matches the power input
4. Test
A. Pressing the "TEST" button tests the detectors
AG 1, 2 & 3 SERIES
Ground Fault Detectors
Solid State Auto-Reset
Factory for CT selection.
detectors' label.
•
Detectors labeled "xxAC" will only detector
AC.
•
Detectors labeled "xxDC" will only detector
DC.
shown on the label.
internal circuits. CAUTION: The output and any
connected loads will detector!
AG-auto-reset Inst. Rev 5, 4/16 P/N 49-010-0002
