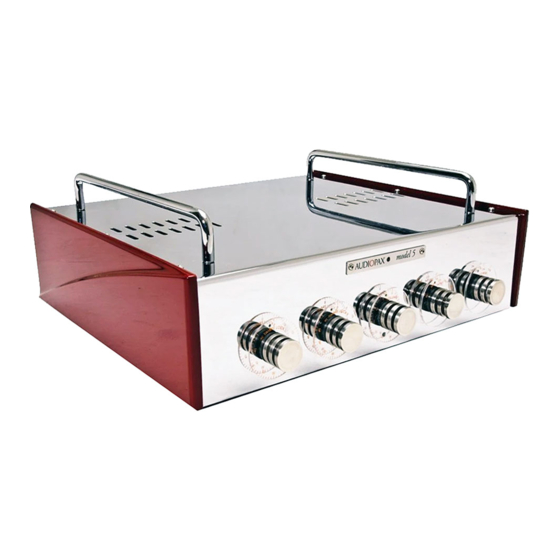

- Page 1 MODEL 5...
- Page 2 Index Introduction Installation Back Panel Turning on your Model 5 ® The Timbre Lock Specifications...
- Page 3 It is no wonder that Model 5 has amassed an impressive number of excellent reviews, awards and “Best of the Show” at the world's leading audio shows.
-
Page 4: Installation
● Reserve fuses Your manual is available for download on our website: www.audiopax.com. Model 5 should be installed in a location with natural ventilation and at least 10 cm (4 inches) of free space above its handles (use in enclosed cabinets could endanger its components and void your warranty). - Page 5 (such as during trips). ● After power-up, Model 5 will need 30 minutes to reach its thermal stabilization, which will guarantee its best performance. Some important notes: ●...
-
Page 6: Back Panel
Back Panel From left to right: bypass switchable input manually (via channel selection front switch) or automatically (in case of power failure, standby off or power off) auxiliary switchable input via channel selection front switch cd player switchable input via channel selection front switch blu-ray player switchable input via channel selection front switch media center... - Page 7 Turning on your Model 5 When Model 5 power is turned on by using the power on/off switch of the power supply, the front LED of the power supply should light but not the front LED on the preamplifier, as it remains for 40 seconds in its previous state (switched to bypass input).
- Page 8 "synergy" among the components of a system: the joint behavior of its distortions. They are present in all Audiopax preamps and amplifiers and replace the "trial and error" process of continuously changing equipment and parts of a system with a set of simple ®...
- Page 9 High-power push-pull tube amplifiers usually have their best settings between the two extremes (between -10 and -30). One last important note: Model 5 is an inverter preamplifier, ie the output signal will have inverted polarity relative to the input. When coupled to an inverter amplifier (as is the case with all Audiopax amplifiers) the preamplifier/amplifier combination will preserve the polarity of the input signal.
-
Page 10: Specifications
1500 ohms (maximum) 500 ohms (typical) Distortion: <0.08% Input Voltage: 120V or 230V (+- 5%) Fuses: 1A (120V) or 500mA (220V), slow, 6.3mm (main) 250mA to 500mA, fast, 6.3mm (dc - two units) Dimensions: 42cm (W) x 34cm (D) x 14cm (H) (Preamplifier) 30cm (W) x 29cm (D) x 9.5cm (H) (Power Supply)
