Williams LP Series Installation Instructions

LP SERIES
INSTALLATION INSTRUCTIONS
WARNING:
This product must be installed in accordance with the applicable
■
installation code by a person familiar with the construction and
operation of the product and the hazards involved.
Make sure all electrical power is turned off while installing the fixture.
■
This luminaire must be adequately grounded for protection against
■
shock hazards and to assure proper operation.

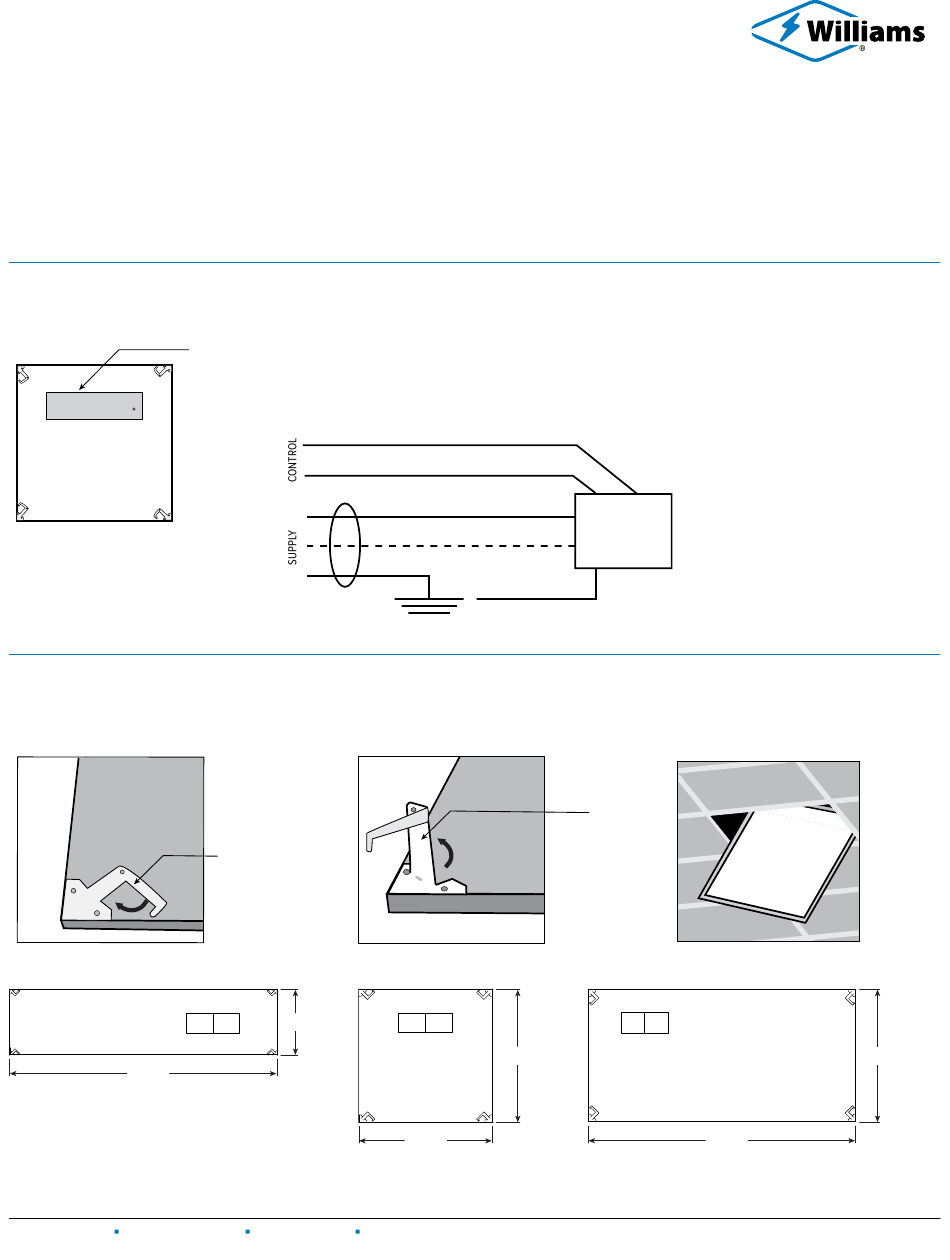

WIRING
Step 1: Open the junction box.

RECESSED FIXTURE INSTALLATION

Step 1: Bend mounting bracket leg into
vertical position.
1x4
47-5/8"
H.E. Williams, Inc. Carthage, Missouri
Information contained herein is subject to change without notice.
Step 2: Make wire connections in accordance with local
codes. Attach power supply and ground wires
Junction box
using UL listed wire connectors. Driver accepts
#12 - #16 AWG stranded or solid wire. Please
consult factory for other driver configurations or
emergency driver wiring diagrams.
Step 2: Bend mounting bracket base
Mounting bracket leg
2x2
11-3/4"
www.hew.com
Disconnect power before servicing.
■
LEDs are ESD (Electro Static Discharge) sensitive devices that can be
■
easily damaged if the proper ESD mitigating steps are not taken.
LEDs are very sensitive to mechanical damage. Caution must be taken
■
to avoid damage to the LEDs.
ESD or mechanical damage voids all warranties.
■
0-10V - Gray
0-10V + Purple
Black Black
White White
Ground wire
if needed
GROUND
into vertical position.
23-3/4"
23-3/4"
417-358-4065
REV.07/08/19JL
TROUBLESHOOTING
IF THE LEDS WILL NOT LIGHT:
Ensure the LEDs and wiring are
■
connected securely
Ensure the switch is turned on
■
BLINKING LEDS:
Ensure the incoming power is
■
stable
Ensure the dimmer switch is
■
compatible
LED Driver
Step 3: Install the fixture into the
grid ceiling.
Mounting
bracket base
2x4
47-5/8"
23-3/4"
PN #49091081
