Summary of Contents for DynaQuip WaterCop LEAK STOP+
- Page 1 Owner’s Manual and Installation Guide The proven leader in household leak protection: WaterCop® is there when you’re not.
-
Page 2: Quick Start
Early leak detection coupled with automatic water shut-off is the best way to prevent extensive water damage. Support and Assistance Contact DynaQuip Controls for technical support and installation assistance: Toll-free: 1-800-545-3636 (M-F, 8 AM-5 PM Central Time) email: info@dynaquip.com... - Page 3 • The valve closes with great force. It could cut off a fi nger. Keep fi ngers and other items out of the valve when testing. • The WaterCop® Leak Stop case is NOT EXPLOSION PROOF. The shut-off valve must NOT be installed where it could ignite fl ammable vapors or explosive mixtures.
-
Page 4: System Components

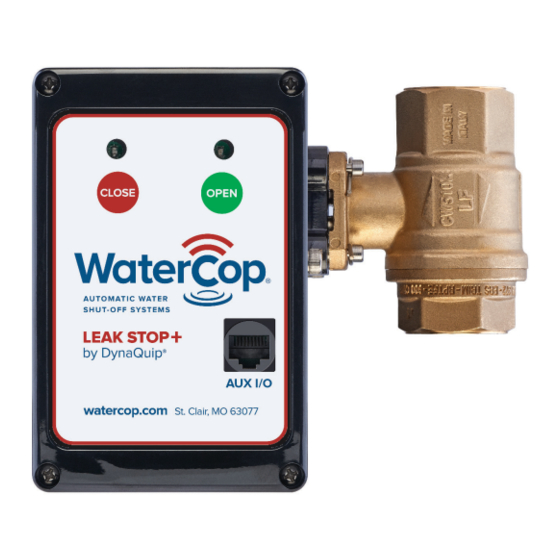

System Components WaterCop® Leak Stop consists of two components which may be purchased together or individually. 1. The Leak Stop brass valve sized to the same diameter as the existing supply line. ANSI/NSF 372 approved full fl ow, forged brass 400psi CWP. 2. -
Page 5: Installation Location
Installation Location The WaterCop® Leak Stop must be installed indoors and directly into the plumbing supply line, just upstream of the appliance or area you wish to monitor and protect. Leak Stop requires 120 VAC power to operate. Verify location of an outlet within easy reach of the Leak Stop unit. - Page 6 Installation Guidelines Review all Safety Guidelines listed on page 3. Use of a licensed, professional plumber is highly recommended and may be required in some municipalities. 1. Separate the brass valve from the control box by removing the spring clip. RETAIN THIS CLIP.
-
Page 7: Sensor Placement
Sensor Placement Place the attached sensor probes in the areas where water would fi rst accumulate if a leak occurs. Note: Care should be taken to place the sensor probe fl at on the fl oor so water can be detected as soon as it begins to accumulate. The gold pins should not come in contact with any other objects or the fl... - Page 8 Operating Instructions is capable of providing two alarm relay connections (dry contact Leak Stop closures or 12 VDC signal) to report current valve position. When water is detected by one of the sensors; the valve will close, the audible alarm will sound, the indicator lights will display CLOSED, and the alarm relays will activate.
- Page 9 Initial and Periodic Testing of the System It is important that initial and periodic (monthly) testing of the system be conducted to ensure continued protection against sudden and accidental plumbing fl ooding. Maintenance Procedure: Approx. _____ min./mo. 1. Verify that the Leak Stop valve is plugged into a standard grounded outlet and powered up.
-
Page 10: Troubleshooting
Troubleshooting Flood sensor does not detect water. 1. Verify the Leak Stop + is receiving power. 2. Verify the gold prongs are making continued and direct contact with water. 3. If testing, verify tap water is being used rather than distilled or RO water. Leak Stop + RED or GREEN light does not illuminate Verify the Leak Stop + is plugged into a grounded 120VAC household outlet and that outlet is powered. -
Page 11: Limitations Of The System
The most common reason an automatic water shut-off system fails to perform when needed is due to inadequate maintenance. DynaQuip Controls recommends this system be tested monthly to make sure the automatic valve and both sensors are working properly. - Page 12 fi ve (5) years. In the event that such defects appear within the warranty period, DynaQuip Controls will, at its option, and upon written notifi cation thereof and substantiation that, the product(s) have been stored, installed, maintained and operated in accordance with DynaQuip’s recommendations and standard industry...
