LEGO 76139 Manual

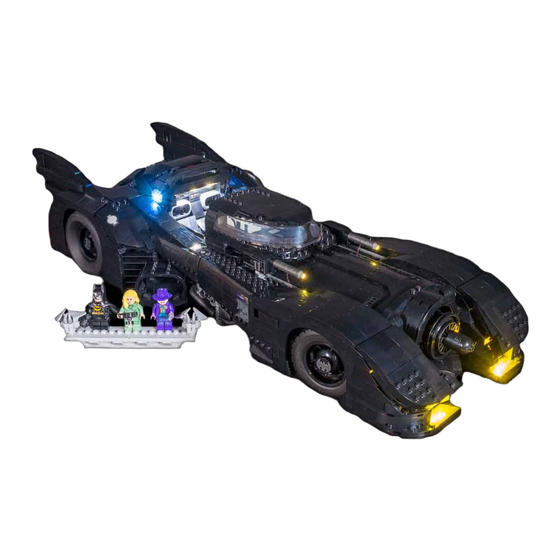

Lighting kit for 1989 batmobile
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 76139 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGO 76139

Summary of Contents for LEGO 76139

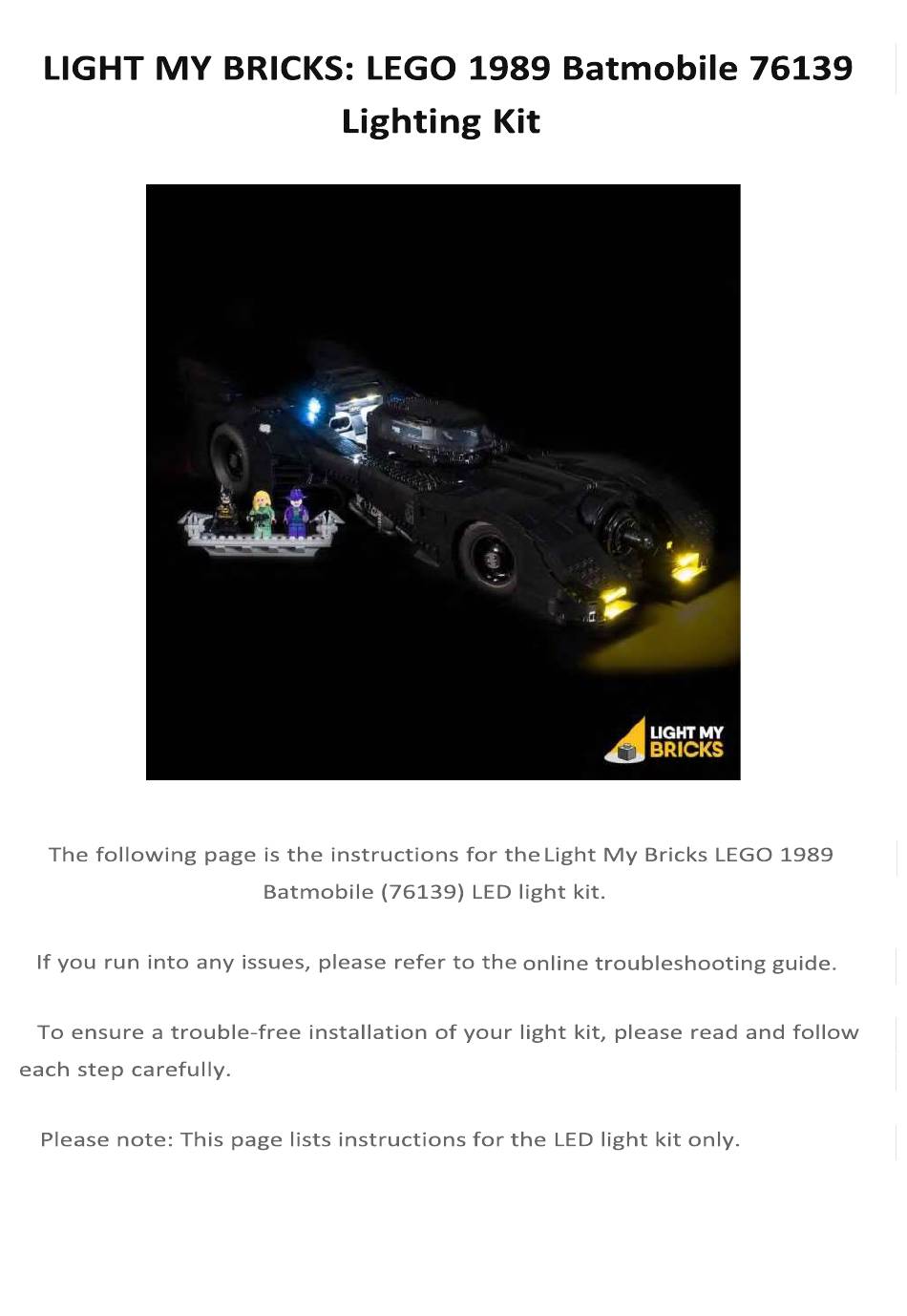

  • Page 2: Package Contents

    1x NC Push Board 1x 6-Port Expansion Board 2x 8-Port Expansion Boards 1x 12-Port Expansion Board 3x 5cm Connecting Cables 3x 15cm Connecting Cables 1x 50cm Connecting Cable 8x Adhesive Squares 1x AA Battery Pack LEGO Pieces: Important things to note:...
  • Page 3 Laying cables in between and underneath bricks Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing they are laid correctly between the LEGO® studs. Do NOT forcefully join LEGO® together around cables; instead ensure they are laying comfortably in between each stud.
  • Page 4 Incorrectly inserting the connector can can result in bent pins inside the port or possible overheating of the expansion board when connected. Connecting cable connectors to Strip Lights Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be inserted only one way.
  • Page 5 Installing Bit Lights under LEGO® bricks and plates. When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO® studs or in between.
  • Page 6 OK, Let’s Begin! We will first install the headlights to the batmobile. Carefully remove the twoheadlight sections, then flip them over and disassemble the right headlight section as shown below.
  • Page 7 Take a Warm White 30cm Large Bit Light and with the LED facing the opposite side to the sticker, place it inside the trans yellow brick. Bring the cable down the side where the sticker is, then secure the Bit Light in place by reconnecting the trans yellow plate over the top.
  • Page 9 Repeat this step to install another 2x Warm White 30cm Large Bit Lights to the other two headlight pieces, then reconnect each one to the right headlight ensuring the LEDS are facing to the front. Bring the ends of the three bit light cables together and thread themthrough the space behind the headlights.
  • Page 10 Turn the vehicle back over and reconnect the right headlight ensuring the cables underneath are laid in between studs.
  • Page 11 Turn the vehicle back onto it’s left side again and disconnect the front right wheel, then slightly bend the three cables into a hook shape and thread the cables through the following dark grey technic brick hole behind the wheel. Thread the cables through and pull them all the way out at the following space below.
  • Page 13 Secure the cables around the top of the wheel axis by disconnecting the following light grey plate, laying the cables underneath in between studs, then reconnecting the plate over the top. It is important to ensure there is enough cable slack for the wheel to still be able to turn all the way left and right, so test this out to ensure all is ok.
  • Page 14 Connect the three bit lights to a 12-Port Expansion Board. Take the AA Battery Pack and insert 3x new AA Batteries to it. Connect the Battery Pack cable to a spare port on the expansion board, then turn it on to test the right headlights are working OK...
  • Page 15 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 16 Disassemble the left headlight section, then repeat step 1 and 2 to installanother 3x Warm White 30cm Large Bit Lights and reconnect the headlight section.
  • Page 18 Turn the vehicle back onto it’s right side and disconnect the front left wheel, then slightly bend the three cables into a hook shape and thread the cables through the following hole behind the wheel. Thread the cables through and pull them all the way out at the middle space as shown below.
  • Page 20 Secure the cables around the top of the wheel axis by disconnecting the following grey plate, laying the cables underneath in between studs, then reconnecting the plate over the top. It is important to ensure there is enough cable slack for the wheel to turn all the way left and right.
  • Page 21 Pull the three cables all the way out the middle section and connect them to the 12-Port Expansion Board. Turn the AA Battery Pack ON to test both headlights are working OK.
  • Page 22 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 23 We will now install a light effect behind the front grill. First disconnect thetop two sections surrounding it, then pull the grill section all the way out.
  • Page 24 Pull back the rear wheel plate as shown below. Take the Rotating White 30cm Bit Light and thread the connector side of the cable through the top of the rear wheel plate through the following hole.
  • Page 25 Take an Adhesive Square and stick it to the bottom of the Rotating Bit Light, then stick the bit light to the top of the hole inside the rear wheel plate as shown below:...
  • Page 26 Thread the Rotating Bit Light cable through the bottom space behind wherethe grill connects to, then turn the vehicle over and pull the cable all the way out from underneath as per below:...
  • Page 27 Before we reconnect the front grill, push the rear wheel plate back up but ensure you Do NOT push the technic pin the whole way back otherwise it will crush the rotating bit light inside. Push the rear wheel plate up so that you can still see the ridge that runs along the side of the wheel plate.
  • Page 28 Ensure the Rotating Bit Light cable is facing up, then reconnect the grill section as well as the two arched sections above. From underneath the vehicle, thread the Rotating Bit Light cable under andpull it out the space where all the headlight cables are located.
  • Page 29 Pull the cable all the way out, then connect it to a spare port on the 12-Port Expansion Board. Turn the Battery Pack ON to test the Rotating Bit Light inside the grill is working OK. The LEDs should be illuminating in a rotating sequence to give a nice “engine rev” effect inside the grill.
  • Page 30 We will now install some lights and effects for the machine guns. First, liftthis section up and remove the front half from each gun section. Disassemble one of the guns as shown below then take a White 15cm Bit Light and thread the connector end of the cable down the front of the barrel.
  • Page 31 Repeat this step to install another White 15cm Bit Light to the other gun section.
  • Page 32 Take the left gun section and thread the cable down the space underneathwhere it pops out of. Reconnect the gun to the base section, then turn the vehicle onto it’s right side and pull the cable out at the following position.
  • Page 33 Pull the cable all the way down, then thread it through the technic brick hole underneath and pull it out of the space where the rest of the cables are.
  • Page 34 Take the Gun Effects Board (GFX) , and connect the Bit Light cable to the channel 1 port. Ensure the channel switch is set to the middle for the “machine gun” effect. Alternatively, you can choose from one of the other gun effects. Take a 5cm Connecting Cable and connect it to the IN port (+5V) on the Gun Effects Board.
  • Page 35 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 37 Turn the Power ON to test both Machine Guns lights are working OK. They should be both firing at random rates. 23.) Turn the Batmobile around and remove the following sections from the back of the vehicle and from the back of the cabin.
  • Page 38 24.) Disconnect the AA Battery Pack from the 12-Port Expansion Boardunderneath the Batmobile, then take a 50cm Connecting Cable and connect it to a spare port on the 12- Port Expansion Board.
  • Page 39 Follow the below images to thread the other end of the 50cm Cable through the following technic brick holes in the middle to lead it toward the back of the vehicle.
  • Page 41 Neaten up cables from the components toward the front of the vehicle by grouping them together and twisting and folding them into a neat bunch. Tuck both effects board and expansion board inside the centre spaces as shown below:...
  • Page 42 25.) Pull remaining excess of the 50cm Connecting Cable all the way out fromthe rear side, then connect it to an 8-Port Expansion Board. Tuck the expansion board up the following space which leads to the inside of the trunk.
  • Page 43 Turn the vehicle back around and you should be able to easily access the expansion board inside the trunk of the vehicle. 26.) Disconnect the following pieces from the inside of the trunk. We will be discarding these pieces as we require this space to house the AA Battery Pack.
  • Page 44 Take a 15cm Connecting Cable and connect one end to the 8-Port Expansion Board underneath. Connect the other end of the cable to the IN port on the NC Push Board.
  • Page 45 Take another 15cm Connecting Cable and connect one end to the OUT port on the NC Push Board. Connect the other end of the cable to a 6-Port Expansion Board. Set all of these components inside the rear section of the vehicle for now.
  • Page 46 27.) Disconnect the following section from both sides of the cabin.
  • Page 47 Disconnect the trans black 2×2 rounded bottom plate from one of the sections, then place a Cool White 30cm Bit Light in the middle (led facing up). Reconnect the trans black 2×2 rounded bottom plate over the top, then repeat this step to install another Cool White 30cm Bit Light to the other section.
  • Page 48 Reconnect each section to the vehicle ensuring the cable is facing toward the back. Pull down the angled plate behind it so we can neatly lay the cable behind and in between studs. Reconnect the plate to conceal the wiring as shown below.
  • Page 49 Repeat this step to reconnect the other section to the right side.
  • Page 50 28.) Connect both Bit Light cables we just installed to the 6-Port ExpansionBoard from step 26, then take the AA Battery Pack and place it inside the back of the Batmobile ensuring the switch is facing up and closest to the back. Connect the Battery Pack cable to the 8-Port Expansion Board (Do NOT connect the battery pack to the 6-port Expansion Board.)
  • Page 51 Turn the AA Battery Pack ON to test all the lights are working OK. Test the NC push board is also working OK. Push the lever to test the the outside cabin lights we just installed turn OFF. The lights should re-activate when the push lever is released.
  • Page 52 29.) Take the following section we moved just behind the cabin and turn it overso we can access underneath. Take a White Strip Light and connect a 15cm Connecting Cable to it.
  • Page 53 Using it’s adhesive backing, stick the strip light underneath this section in the following position. Ensure the cable is facing the right, then bend the cable down so that it is facing the back of this section, as shown below. 30.) Bring this section above the batmobile, then locate the NC Push Board andremove the protective paper on the back of it to expose the adhesive.
  • Page 55 Turn this section over and reconnect it to the back of the Batmobile while ensuring all cables are laid neatly in between studs underneath. The NC Push Board button should be peaking out slightly so that it pushes in when the cabin door is closed. Locate the other end of the 15cm Connecting Cable from the White Strip Light and connect it to a spare port on the 6-Port Expansion Board at the back of the vehicle.
  • Page 56 to test all internal and external cabin lights are working OK. The lights should activate when the cabin door is open, and deactivate when the cabin door is closed.
  • Page 57 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 58 31.) We will now install the tail lights. First disconnect all of the followingsections from the back of the vehicle as shown below.
  • Page 61 Prop a large object like a book or the light kit box underneath the back of the Batmobile so that you can easily access underneath of the rear side, then disconnect the following section from each side of the tail light.
  • Page 62 32.) Take the two tail light sections and disassemble the right tail light as perbelow. Take a Red 30cm Bit Light and thread the connector end of the cable through the top of the black round plate with centre open stud. Thread the Bit Light all the way through then carefully bend it so that the LED sits flat against the top of the plate.
  • Page 64 Reconnect the black tile underneath, then fold the cable underneath before reconnecting it to the tail light section. Ensure the cable is facing toward the left side as shown below: 33.) Take the following three pieces and swap out the black round plate 1×1 with a provided Black Round Plate 1×1 with open stud.
  • Page 65 Fold the bit light cable underneath the black tile before reconnecting it to the tail light section. Ensure the cable is facing the left side.
  • Page 66 Fold both cables down the left side of the tail light, then reconnect this section to the back of the Batmobile. Ensuring both cables are folded down into the corner and laid in between studs before reconnecting the section we removed earlier over the top.
  • Page 67 Thread both cables up the following section which leads to the inside of the trunk, then pull them all the way out from the inside. Reconnect the two sections we removed earlier to the right side.
  • Page 68 34.) Repeat steps 32 and 33 to install another 2x Red 30cm Bit Lights to the left tail light section, this time, laying the cables toward the right side.
  • Page 70 Fold the cables down the right side of the tail light, then reconnect it to the left side of the vehicle. Ensure you carefully lay the cables down in the corner before reconnecting the section we removed earlier over the top.
  • Page 71 Thread the cables through to the inside of the trunk, then reconnect the following two sections to the left side.
  • Page 72 Connect all four Red Bit Light cables to the 8-Port Expansion Board in the rear of the vehicle, then turn ON the Batter Pack to test the tail lights are all working OK.
  • Page 73 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board or effects board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 74 Slide the AA Battery Pack out from the rear of the vehicle, then neaten up cabling by folding and twisting the tail light cables into a neat bunch. Tuck the bunched up cables underneath the red technic bar, then slide the AA Battery Pack back in ensuring the new 8-port expansion board from this step is still accessible.
  • Page 75 36.) Take the jet section and remove the top technic wheel, then remove the 8plates from the outside. We will be sticking Bit Lights to the following 6 positions. Take note of the below image as a reference.
  • Page 76 Take a White 15cm Bit Light and stick it to an Adhesive Square. Thread the connector end of the cable through the following space, then stick the Bit Light to the first location as shown below.
  • Page 77 37.) Using the same method as in previous step, install another 5x White 15cm Bit Lights to this jet sections ensuring you stick the Bit Lights to the correct locations as shown below:...
  • Page 79 38.) Reconnect the technic wheel to the top ensuring you the wheel holes alignup to where the Bit Lights are installed underneath. Reconnect the 8 plates to the outside of the Jet section, then from the back, seperate the cables into two groups.
  • Page 80 Thread the two groups of cables all the way through the following two spaces, then reconnect the Jet section ensuring the two groups of cables are directly to each side.
  • Page 82 Connect all six cables to the 8-Port Expansion Board, then turn on the AA Battery Pack to test the jet lights are working and flickering OK.
  • Page 83 Test the machine guns can still be hoisted up and down by turning the Jet section. If you run into any issues, check the two group of bit light cables from the jet are neatly separated and installed exactly as shown in previous steps. 39.) Reconnect all the sections surrounding the back of the vehicle.
  • Page 84 This finally completes installation of the Light My Bricks Star Wars 1989 Batmobile Light Kit. We thank you for purchasing this product and hope you ENJOY!
