Summary of Contents for RedEarth SunRise SGS 1-PH AUTO

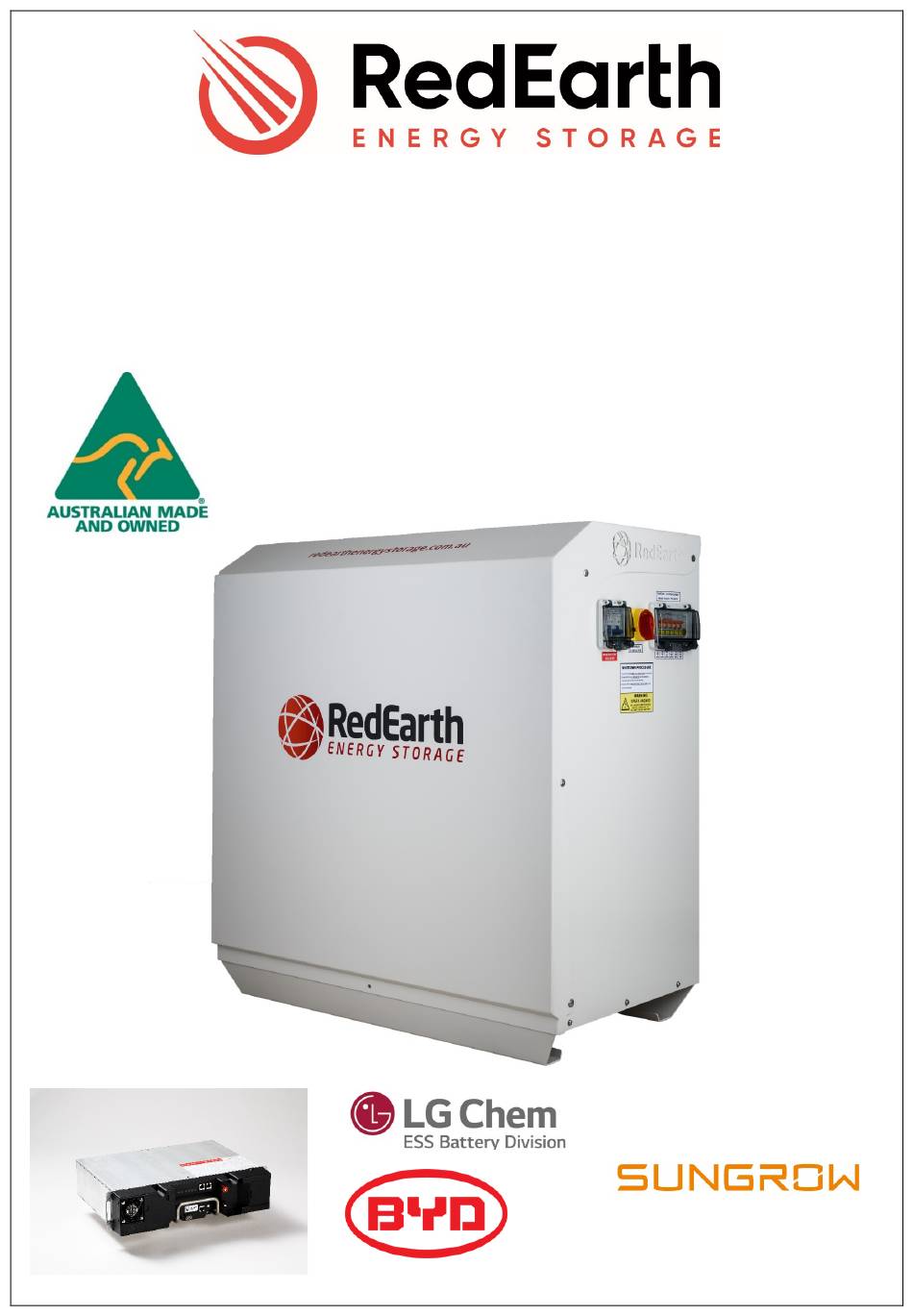

- Page 1 SunRise Home Battery System Model: SGS 1-PH AUTO with LG & BYD battery Installation Manual...
- Page 2 SunRise Manual - Version 2.3 SGS 1-PH AUTO – 29 Aug 2019 Safety Instructions: Safety instructions: WARNING: Lithium Battery hazard WARNING: Installation and Maintenance of the Sunrise System should only be done by a qualified Solar & Battery Electrician WARNING: PV Arrays exposed to Sunlight will supply D.C Voltage to SunRise Battery System. Physical Specifications: Physical specifications: Weight:...
- Page 3 The SunRise SGS system can be remotely monitored via SunGrow’s web portal or via their their app (iSolarCloud app). RedEarth Energy Storage can also provide a remote monitoring service to ensure ongoing operation of the SunRise battery system. Contact RedEarth Tech Support on 0487 002 451.
- Page 4 A typical complete installation of the SunRise Home Battery will require the electrical connection of the following cables; 1. Install AC cables from the Main Switch Board (MSB) directly to the terminals inside the SunRise system (Grid and EPS/Essential load supplies). Either a single 3Core + Earth cable or two 2C+E cables of sufficient diamter for the distance can be used.
- Page 5 SunRise system overview: The following image shows the SunRise SGS 1-PH AUTO system with all components installed (including the maximum 5 x 6.5kWh LG M48 batteries). The 2 image shows the SunRise SGS without the batteries in place. Note: The Sunrise is delivered with the inverter inside, but without the batteries inside the unit to allow the system to be...
- Page 7 The internal wiring layout is shown below. The right side of the SunRise system includes the AC and DC Switch assemblies, the left side allows access to the control panel of the inverter.
- Page 8 Details of the SunRise switch gear is shown below. The design of the SunRise includes all the Isolation in the enclosure. If the inverter needs to be removed for repair, then the enclosure remains behind with the Isolation intact. This is a similar approach to that adopted by Fronius with their solar inverters and removes the requirement to add AC and DC Isolators on the wall next to the system.
- Page 9 RedEarth has additional material on its website, www.redearthenergystorage.com.au For larger customers RedEarth also offers the option of onsite training either in your facility or on your jobsite. STEP 2: Confirm job details and order the right SunRise options: Confirm details of the job: How much solar is required (a maximum of 6.65kW can be connected to the SunRise while still receiving all...
- Page 10 If remote monitoring is required, is there internet available? Wi-Fi or hard-wire option? RedEarth can assist • with 3G/4G options if required. Confirm it is a single-phase house. Note that RedEarth has another version of the SunRise system for 3-phase • houses.
- Page 11 2) Wall mount: The system can also be wall mounted using standard heavy-duty airconditioning mounting bracket (available from RedEarth). These images show a SunRise system installed on a wall. It is important that the air-con brackets are correctly assembled to provide their full rated strength.
- Page 12 STEP 4: Wiring up the Sunrise: ng up the FPA3: LG battery cables KEEP SAME LENGTH (AS SUPPLIED BY Redearth The diagram below shows an overview of the electrical connection inside the SunRise System.
- Page 13 A typical complete installation of the SunRise will require the electrical connection of; 1. AC cables to the Main Switch Board (MSB) (Grid/Solar and Essential/EPS). If the Backup option is required then the loads will need to be split in the MSB between essential and non-essential loads. 2.
- Page 14 (Grid/Solar EPS/Essential load supplies). A single 3-Core + Earth cable of sufficient diamter for the distance can be used (RedEarth can supply this cable). Otherwise two 2C+E cables can be used. In this case the two earths and neutrals are connected to the Grid/Solar Earth and Neutral terminals.
- Page 15 Earth Fault. These can be used to power an alarm in a more frequented part of the home, for example the garage. RedEarth can supply a suitable alarm. 5. (a) Install the LG batteries. o First connect the additional DC battery cables to the battery bus bars (if extra batteries were ordered).
- Page 16 o BMS communication cable from the inverter to the Master battery. This cable is already connected inside the Sungrow inverter. The other end needs to be plugged into the Master LG battery. Additional LG batteries are then connected using the inter-battery 10-pin lead provided with each additional battery (black with yellow ends).
- Page 17 STEP 5: Starting up the Sunrise System: Refer to the included OEM SunGrow manuals for additional details on the operation of each of the individual components. Pre-start-up Procedures: With the lid removed confirm the following; 1. AC cables are connected into the inverter to the correct terminals of the terminal block. 2.
- Page 18 3. After the LG battery has completed start-up, which takes < 1 minute, the indicators as shown below will be on. For LG battery Trouble shooting refer to pp31 of the LG Installation manual which has been included with your SunRise system.
- Page 20 WiFi password. Refer to the included Sungrow manuals to setup remote monitoring. • If there is no internet available RedEarth can supply a 3G/4G dongle as an option. Contact RedEarth once the system is online and the remote monitoring will be confirmed.
- Page 21 The procedure to add extra battery modules is outlined below. The LG battery must be shut down to add modules. Note that it is best to add extra modules when the existing and new modules are at a similar SOC. RedEarth sends the modules with about 30% SOC.
- Page 23 SunRise system electrical specifications: Inverter/Battery Charger Specifications OUTPUT AC POWER Nominal AC Power out 4990W Max AC Apparent power out to grid 5000VA Nominal AC Current 21.6A Max. AC output current 21.7A Max. AC input power 3000W Max. AC input current (for battery charging) INPUT PV ARRAY Max.
- Page 24 PERFORMANCE Nominal Capacity (kWh) 2.56 kWh Nominal Capacity (Ah) 50 Ah Contin. Charge/Discharge power per module 2.65 kW Max. Charge/Discharge power per module 5.12 kW (30 sec) Max. Charge/Discharge current per module 50 A Nominal Voltage 51.2 Vdc Lithium-ion chemistry LiFePO4 OPERATING CONDITIONS Operating voltage...
-
Page 25: Contact Details
Options available from RedEarth: RedEarth also provides several options for the SunRise; • Additional 3.3kWh battery option (Max. of 5 x 3.3kWh) (EM048063P3Sx) o These are supplied with the required comms and battery cables. Extended warranty options • • Miscellaneous spare parts...
