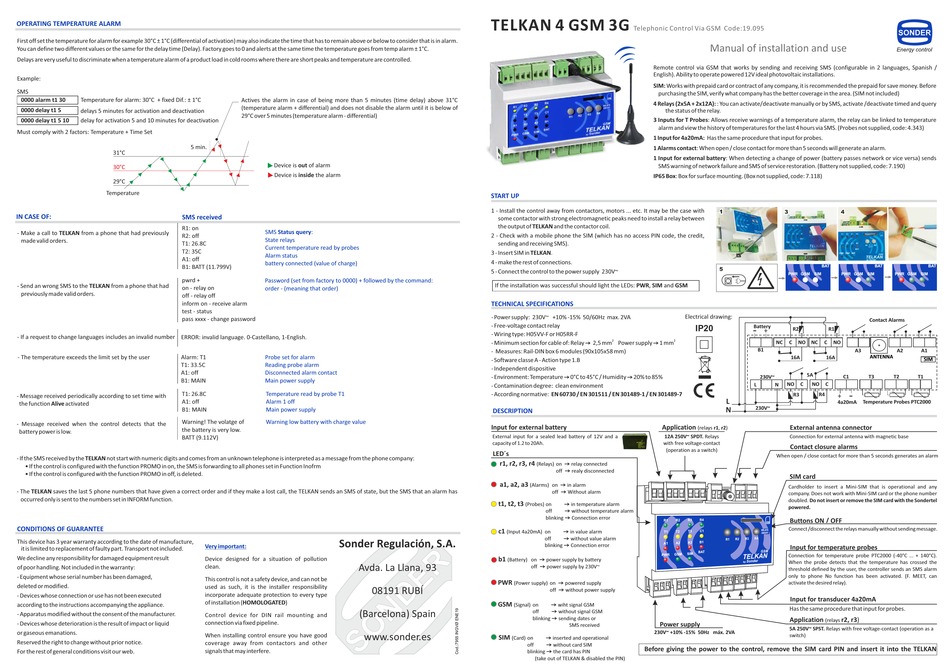

Sonder TELKAN 4 GSM 3G Manual Of Installation And Use

OPERATING TEMPERATURE ALARM
First off set the temperature for alarm for example 30°C ± 1°C (differential of activation) may also indicate the time that has to remain above or below to consider that is in alarm.
You can define two different values or the same for the delay time (Delay). Factory goes to 0 and alerts at the same time the temperature goes from temp alarm ± 1°C.
Delays are very useful to discriminate when a temperature alarm of a product load in cold rooms where there are short peaks and temperature are controlled.
Example:
SMS
0000 alarm t1 30 Temperature for alarm: 30°C + fixed Dif.: ± 1°C
0000 delay t1 5
delays 5 minutes for activation and deactivation
0000 delay t1 5 10 delay for activation 5 and 10 minutes for deactivation
Must comply with 2 factors: Temperature + Time Set
5 min.
31°C
30°C
29°C
Temperature
IN CASE OF:
SMS received
R1: on
- Make a call to TELKAN from a phone that had previously
R2: off
made valid orders.
T1: 26.8C
T2: 35C
A1: off
B1: BATT (11.799V)
pwrd +
- Send an wrong SMS to the TELKAN from a phone that had
on - relay on
previously made valid orders.
off - relay off
inform on - receive alarm
test - status
pass xxxx - change password
- If a request to change languages includes an invalid number ERROR: invalid language. 0-Castellano, 1-English.
- The temperature exceeds the limit set by the user Alarm: T1
T1: 33.5C
A1: off
B1: MAIN
T1: 26.8C
- Message received periodically according to set time with
A1: off
the function Alive activated
B1: MAIN
Warning! The volatge of
- Message received when the control detects that the
the battery is very low.
battery power is low.
BATT (9.112V)
- If the SMS received by the TELKAN not start with numeric digits and comes from an unknown telephone is interpreted as a message from the phone company:
• If the control is configured with the function PROMO in on, the SMS is forwarding to all phones set in Function Inofrm
• If the control is configured with the function PROMO in off, is deleted.
- The TELKAN saves the last 5 phone numbers that have given a correct order and if they make a lost call, the TELKAN sends an SMS of state, but the SMS that an alarm has
occurred only is sent to the numbers set in INFORM function.
CONDITIONS OF GUARANTEE
This device has 3 year warranty according to the date of manufacture,
it is limited to replacement of faulty part. Transport not included.
We decline any responsibility for damaged equipment result
of poor handling. Not included in the warranty:
- Equipment whose serial number has been damaged,
deleted or modified.
- Devices whose connection or use has not been executed
according to the instructions accompanying the appliance.
- Apparatus modified without the consent of the manufacturer.
- Devices whose deterioration is the result of impact or liquid
or gaseous emanations.
Reserved the right to change without prior notice.
For the rest of general conditions visit our web.
Actives the alarm in case of being more than 5 minutes (time delay) above 31°C
(temperature alarm + differential) and does not disable the alarm until it is below of
29°C over 5 minutes (temperature alarm - differential)
Device is out of alarm
Device is inside the alarm
SMS Status query:
State relays
Current temperature read by probes
Alarm status
battery connected (value of charge)
Password (set from factory to 0000) + followed by the command:
order - (meaning that order)
Probe set for alarm
Reading probe alarm
Disconnected alarm contact
Main power supply
Temperature read by probe T1
Alarm 1 off
Main power supply
Warning low battery with charge value
Sonder Regulación, S.A.
Very important:
Device designed for a situation of pollution
Avda. La Llana, 93
clean.
This control is not a safety device, and can not be
used as such, it is the installer responsibility
08191 RUBÍ
incorporate adequate protection to every type
of installation (HOMOLOGATED)
(Barcelona) Spain
Control device for DIN rail mounting and
connection via fixed pipeline.
When installing control ensure you have good www.sonder.es
coverage away from contactors and other
signals that may interfere.

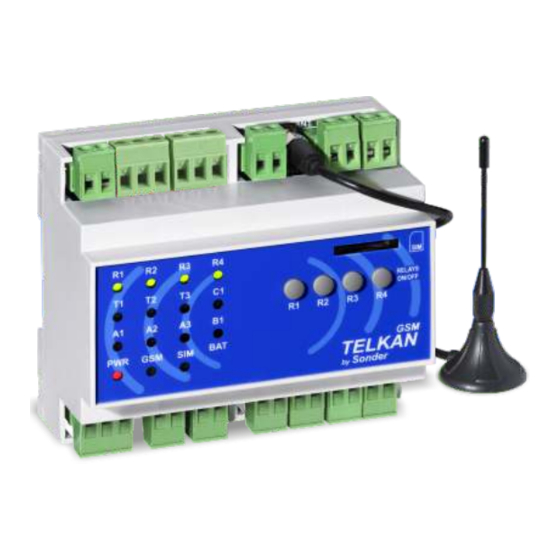

TELKAN 4 GSM 3G
Telephonic Control Via GSM Code:19.095
Remote control via GSM that works by sending and receiving SMS (configurable in 2 languages, Spanish /
English). Ability to operate powered 12V ideal photovoltaic installations.
SIM: Works with prepaid card or contract of any company, it is recommended the prepaid for save money. Before
purchasing the SIM, verify what company has the better coverage in the area. (SIM not included)
4 Relays (2x5A + 2x12A): : You can activate/deactivate manually or by SMS, activate /deactivate timed and query
the status of the relay.
3 Inputs for T Probes: Allows receive warnings of a temperature alarm, the relay can be linked to temperature
alarm and view the history of temperatures for the last 4 hours via SMS. (Probes not supplied, code: 4.343)
1 Input for 4a20mA: Has the same procedure that input for probes.
1 Alarms contact: When open / close contact for more than 5 seconds will generate an alarm.
1 Input for external battery: When detecting a change of power (battery passes network or vice versa) sends
SMS warning of network failure and SMS of service restoration. (Battery not supplied, code: 7.190)
IP65 Box: Box for surface mounting. (Box not supplied, code: 7.118)
START UP
1 - Install the control away from contactors, motors ... etc. It may be the case with
some contactor with strong electromagnetic peaks need to install a relay between
the output of TELKAN and the contactor coil.
2 - Check with a mobile phone the SIM (which has no access PIN code, the credit,
sending and receiving SMS).
3 - Insert SIM in TELKAN.
4 - make the rest of connections.
5 - Connect the control to the power supply 230V~
If the installation was successful should light the LEDs: PWR, SIM and GSM
TECHNICAL SPECIFICATIONS
- Power supply: 230V~ +10% -15% 50/60Hz max. 2VA
- Free-voltage contact relay
- Wiring type: H05VV-F or H05RR-F
- Minimum section for cable of: Relay Z 2,5 mm Power supply 2 Z 1 mm
- Measures: Rail-DIN box 6 modules (90x105x58 mm)
- Software classe A - Action type 1.B
- Independent dispositive
Z Z
- Environment: Temperature 0°C to 45°C / Humidity 20% to 85%
- Contamination degree: clean environment
- According normative: EN 60730 / EN 301511 / EN 301489-1 / EN 301489-7
DESCRIPTION
Input for external battery Application
External input for a sealed lead battery of 12V and a 12A 250V~ SPDT. Relays
capacity of 1.2 to 20Ah. with free voltage-contact
(operation as a switch)
LED´s
r1, r2, r3, r4 on Z relay connected
(Relays)
off Z realy disconnected
a1, a2, a3 on Z in alarm
(Alarms)
off Z Without alarm
t1, t2, t3 Z in temperature alarm
(Probes) on
Z without temperature alarm
off
blinking Z Connection error
c1
Z in value alarm
(Input 4a20mA) on
Z without value alarm
off
blinking Z Connection error
b1
on Z power supply by battery
(Battery)
off Z power supply by 230V~
PWR on Z powered supply
(Power supply)
off Z without power supply
GSM
Z wiht signal GSM
(Signal) on
Z without signal GSM
off
blinking Z sending dates or
Power supply
SMS received
230V~ +10% -15% 50Hz máx. 2VA
SIM Z inserted and operational
(Card) on
Z without card SIM
off
Before giving the power to the control, remove the SIM card PIN and insert it into the TELKAN
blinking Z the card has PIN
(take out of TELKAN & disabled the PIN)
Manual of installation and use
1 1 1
3 3 3 4 4 4
BAT
5 5 5
PWR GSM SIM PWR GSM SIM
Electrical drawing:
Battery
IP20 -
+ R2 R1
2 NC C NO NC C NO
B1
16A 16A
5A
230V~ C1
NO C NO C
L N
-
R4
R3 +
L
4a20mA
230V~
N
External antenna connector
(relays r1, r2)
Connection for external antenna with magnetic base
Contact closure alarms
When open / close contact for more than 5 seconds generates an alarm
SIM card
Cardholder to insert a Mini-SIM that is operational and any
company. Does not work with Mini-SIM card or the phone number
doubled. Do not insert or remove the SIM card with the Sondertel
powered.
Buttons ON / OFF
Connect /disconnect the relays manually without sending message.
Input for temperature probes
Connection for temperature probe PTC2000 (-40°C ... + 140°C).
When the probe detects that the temperature has crossed the
threshold defined by the user, the controller sends an SMS alarm
only to phone No function has been activated. (F. MEET, can
activate the desired relay).
Input for transducer 4a20mA
Has the same procedure that input for probes.
Application r2, r3)
(relays
5A 250V~ SPST. Relays with free voltage-contact (operation as a
switch)
BAT BAT
PWR GSM SIM
Contact Alarms
A3 A2 A1
ANTENNA
SIM
T3 T2 T1
Temperature Probes PTC2000
