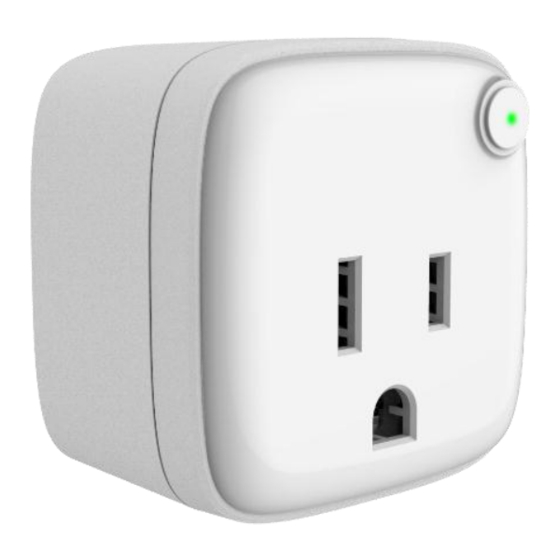

Smart Plug （Z-Wave）User Guide
Smart plug is a Z-Wave switch based on Z-Wave wireless technology. It can report wattage
consumption or kWh energy usage.
Smart Plug can be included and operated in any Z-Wave network with other Z-Wave certified
devices from other manufacturers and/or other applications. All non-battery operated nodes
within the network will act as repeaters regardless of vendor to increase reliability of the
network.
Smart Plug is also a security Z-Wave device and supports the Over The Air (OTA) feature for
the product's firmware upgrade.
If you want your Smart Plug to be a security device that use secure/encrypted message to
communicate in a Z-Wave network, then a security enabled Z-Wave controller is needed.
Feature list:
1) Supports 1xAC output.
2) AC output switch on/off by manual and/or Z-Wave command.
3) Led indicates the working status.
4) Supporting power meter.
5) Supporting repeater role.
6) Supporting firmware OTA.
Advertisement
Summary of Contents for AIBASE HA-ZW-5PAB
- Page 1 Smart Plug （Z-Wave）User Guide Smart plug is a Z-Wave switch based on Z-Wave wireless technology. It can report wattage consumption or kWh energy usage. Smart Plug can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
-
Page 2: Technical Specifications
1. FAMILIARIZE YOURSELF WITH YOUR SMART PLUG Smart Plug Layout ② & ③ ① ① Socket: Converts your traditional outlet and enables your plugged-in appliance to become Smart and controllable with the App ② Button: Press once to switch on or off; press and hold to reset ③... - Page 3 a. Make sure that the Smart Plug has been connected to the power supply. b. Set the Z-Wave network main controller into inclusion mode. c. Power on. d. The LED will blink fast until the inclusion is completed and then the LED will keep turning on or off.
- Page 4 3. If holding time is more than one second, the LED will blink faster and faster. If holding time is more than 5 seconds, the LED will be solid for 3 seconds to indicate that the resetting is successful. Otherwise, repeat step 2. Note: Reset to factory will remove Smart Plug from the Z-Wave network.
- Page 5 COMMAND_CLASS_SCENE_ACTUATOR_CONF_V1 COMMAND_CLASS_SCENE_ACTIVATION_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 5. NOTE FOR SPECIAL COMMANDS 5.1 Association Command The Smart Plug supports only one association group. Grouping Max Nodes Send Commands Identifier Group 1 0x05 1. When the state of Smart Plug (turn on or off the load) is changed: 1.
- Page 6 Possible values: 0 - Smart Plug memorizes its state after a power failure. 1 - Smart Plug does not memorize its state after a power failure. Connected device will be on after the power supply is reconnected. 2 - Smart Plug does not memorize its state after a power failure. Connected device will be off after the power supply is reconnected.
- Page 7 Default value: 50 (50W) Parameter size: 2 [byte] Parameter No.17 T he value here represents minimum change in wattage percent (in terms of percentage) for a meter report (watt) to be sent When the change value of the load power exceeds the setting value, smart plug will send meter report to associated device (Group Lifeline).
- Page 8 Possible values: 5- 2678400 (5 - 2678400s) Default value: 3600(one hours). Parameter size: 4 [byte] Parameter No. 104 Setting time for sending meter report (current) The interval time of sending meter report (current) to associated device (Group Lifeline). Possible values: 5- 2678400 (5 - 2678400s) Default value: 3600(one hours).
