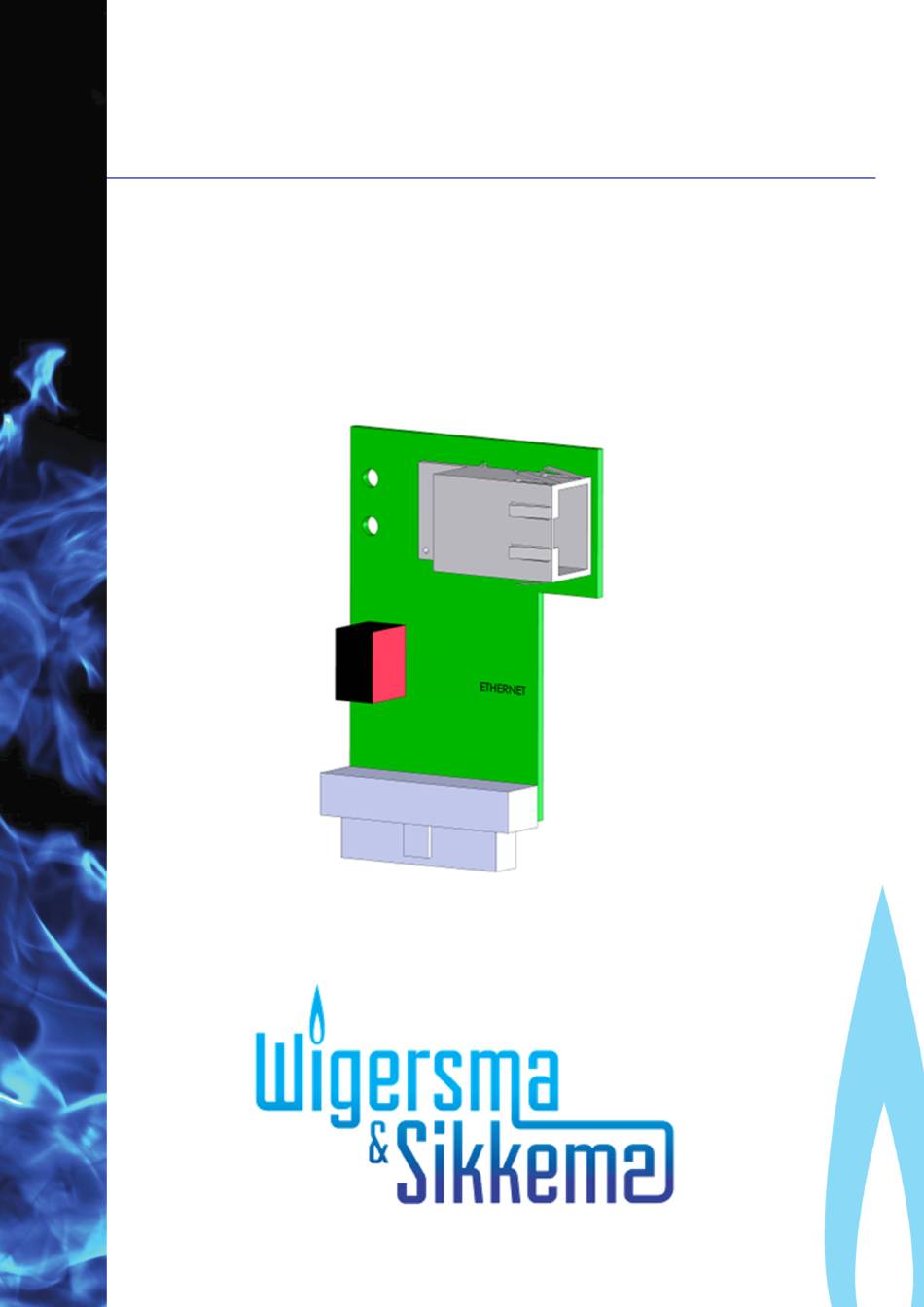

- Page 1 Installation and user manual Ethernet module...
-
Page 2: Preface
Installation and maintenance manual Ethernet module All rights reserved. Copyright © 2020 Wigersma & Sikkema B.V. All the figures and descriptions in this installation, operating manual have been compiled only after careful checking. Despite this, however, the possibility of errors cannot be completely eliminated. Therefore, no guarantee can be given for completeness or for the content. -
Page 3: Table Of Contents
Installation and maintenance manual Ethernet module Table of contents Preface ..........................1 Introduction ......................... 3 Installation ........................3 Installing the module .......................... 3 Connecting the equipment to a ethernet network ................3 Status indicators and connections ................4 UNIGAS settings ......................5 UNIGAS 61 E ............................. -
Page 4: Introduction
Installation and maintenance manual Ethernet module 1 Introduction The Ethernet module is a module that can be used in all mains-supplied models of ISC230, SC230 and ISC230B. Article code NN2566. The module is designed to be Plug & Play , once powered, the embedded microcontroller takes care of all needed settings on the MOXA ethernet module. -
Page 5: Status Indicators And Connections
Installation and maintenance manual Ethernet module 3 Status indicators and connections MOXA ethernet modem Figure 1. Connector and LED on the Ethernet module 1. LED indicator for powered on 2. LED indicator for network activity: Green: 100BASE-TX link, blinking indicates data transfer. Red: 10BASE-T link, blinking indicates data transfer. -
Page 6: Unigas Settings
Installation and maintenance manual Ethernet module 4 UNIGAS settings Some settings in UNIGAS are needed if it is to be used with the ISC230B and Ethernet module. These settings may have been factory set. 4.1 UNIGAS 61 E Service software CONVERTER TOOL, Communication Interface screen, tab page Schedule At interface (quit mode) tick... -
Page 7: Setting Up The Tcp Server Of The Miineport E1
Installation and maintenance manual Ethernet module 5 Setting up the TCP server of the MiiNePort E1 The following steps explain how to set up the TCP server on the MiiNePort E1, which is embedded on the Ethernet module. When delivered by Wigersma & Sikkema B.V., the settings for Plug & Play use are already preconfigured. - Page 8 Installation and maintenance manual Ethernet module Step 4: The left side of the web console contains a tree menu for all settings. The following settings should be set for correct operation: Figure 4: Settings Basic Settings >> Serial Port Settings: …...
-
Page 9: Maintenance
RJ-45 with magnetics and 20-pin angled socket. • Operating temperature -25° to +55° C. • Operating current Idling: 10 mA @ 12V • Connected: 50 mA @ 12V Integrated Ethernet module Moxa MiiNePort E1 • www.moxa.com for more information about MiiNePort E1. DDNN004MHGB/03-2020/Rev.3... - Page 10 Wigersma & Sikkema B.V. Leigraafseweg 4 6983 BP Doesburg TEL: +31 (0) 313 – 47 19 98 info@wigersma-sikkema.com www.wigersma-sikkema.com...
