Zorro Unplugged

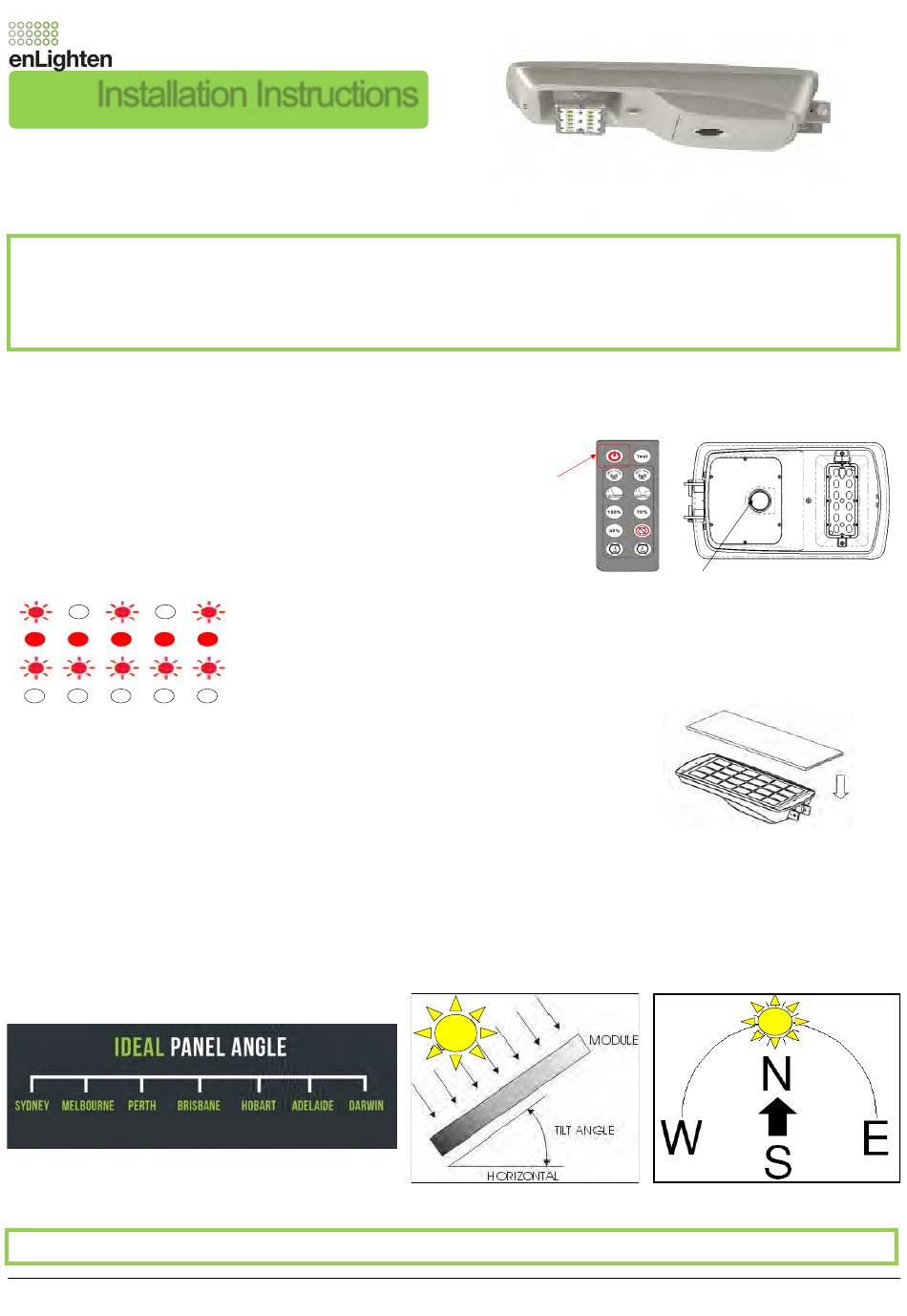

Installation Instructions
The Zorro unplugged is a solar light with an integrated battery and a
microwave motion sensor. It can be set to work on a time controlled
mode after sunset or activated via motion sensor.
It will automatically switch on at dusk and switch off at dawn.
The average sunshine in the installation area should be above 4.0h/day to ensure full function of the light fixture. The fitting needs to be mounted in
an area that does not have shadows on the solar panel. The fitting has to be recharged manually with a charger every 3 months if stored for longer
periods. If the fitting is stored, ensure the battery is fully charged and the fitting is turned off.
If two fittings are set to microwave sensor mode they should be mounted >5m apart to avoid microwave sensor interference.
The light will dim to 50% when the battery charge is less than 40%.
General
•
To ensure optimal working conditions for the light, ensure the solar panel is facing north.
•
To allow for self-cleaning of the solar panel, solar panel must be mounted at a minimum angle of 15 degrees.
•
Adjust the fixture angle to optimize the solar panel performance
(see panel tilt angle section below for details)
•
Adjust the LED panel to direct the light to the desired area (see page 2)
•
At installation, point the remote at the fitting and press the ON/OFF switch (see picture
on right)
•
Check indicator LED on fitting during day time
•
To test operation of the light, cover the solar panel (e.g. with a piece of cardboard).
The LEDs should switch on within 30s.
•
Select the operating mode of the light (see remote control section on page 3 for details)
Panel tilt angle
To achieve the best performance of the solar light, the tilt angle of the solar panel should be as close as possible to the following
depending on the installation location. The panel should be facing North.
30°
35°
30°
The light will continue to operate if not positioned perfectly, however the battery charging will be reduced.
Page 1
Distributed by: Reduction Revolution Pty Ltd www.reductionrevolution.com.au
Flashing red slowly: Fitting charging normally
Solid red: Fitting fully charged
Flashing red quickly: Charging problem
No indicator light: Battery level too low. Recharge with charger (see page 4)
25°
40°
35°
15°
Indicator LED
Continued next page
