BEMIS WallSafe 405 020 Mounting Instructions

HEALTH CARE™

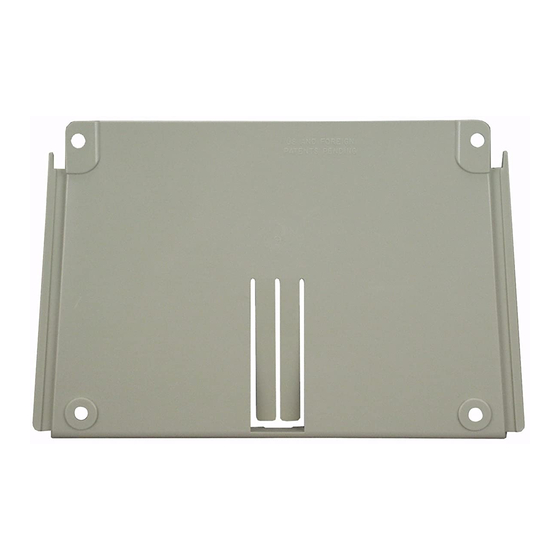

WallSafe
Wall Bracket and Key Set
Soporte de pared y juego de llaves / Support mural et jeu de clés
Model 405 020 / Modelo 405 020 / Modèle 405 020
Model 410 020 / Modelo 410 020 / Modèle 410 020
Use WallSafe Bracket Key to remove
sharps container from bracket.
Mounting Instructions
MASONRY WALLS
1. Using the WallSafe Bracket as a template, locate it on the
wall in the desired position and drill locating reference points
at each screw hole.
2. Drill 1/4" diameter holes 1-1/4" deep. Blow dust out of the
holes and insert plastic wall plugs, tapping them with a
hammer if needed to bring them flush to the wall. Screw
on the WallSafe Bracket with the provided screws.
Note: If for any reason the provided screws are not used,
only pan head or round head 10-gauge screws should be
substituted. In no case should countersunk screws be used.
Bemis Manufacturing Co., 300 Mill Street, Sheboygan Falls, WI 53085
920-467-4621 • 800-558-7651 • Fax 800-499-8160
E-mail: HCG@BemisMfg.com • www.bemishealthcare.com
®
INCLUDED IN PACKAGE
10 Bemis WallSafe Brackets
44 Plastic Wall Plugs
44 1-1/4" Pan Head 10-Gauge Screws
Mount WallSafe Bracket at a safely accessible
height approximately 50" from top edge to floor.
EN EL PAQUETE SE INCLUYEN
10 Soportes para montaje Bemis WallSafe
44 Taquetes de plástico para pared
44 Tornillos de cabeza troncocónica de calibre 10 de 1-1/4 pulgadas
Monte el soporte WallSafe a una altura accesible de manera segura,
aproximadamente a 50 pulgadas desde la orilla superior hasta el piso.
COMPRIS DANS L'ENSEMBLE
10 supports Bemis WallSafe
44 capuchons muraux en plastique
44 vis à tête cylindrique de 3,2 cm (1-1/4 po), de calibre 10
Montez le support WallSafe à une hauteur aisément accessible
de manière sécuritaire, soit à environ 127 cm (50 po) du sol au
bord supérieur du support.
HOLLOW WALLS
Metal expanding wall fasteners that require a 3/8" drill hole
size or plastic toggle expanding wall fasteners that require
a 5/16" drill hole size should be used. Fasteners requiring
smaller diameter holes have screw heads that are too small
for secure wall bracket fastening.
Typical recommended fasteners are:
Molly fastener CD6S
Rawl anchor 2112
Poly-Toggle anchor 2304
Poly-Toggle anchor 2305
®
®
Metal fastener for 3/8" to 5/8" wallboard
Metal fastener for 3/8" to 5/8" wallboard
Plastic toggle fastener for 1/2" wallboard
Plastic toggle fastener for 5/8" wallboard
©2017 599 0510
Rev. 2.0
