Summary of Contents for SOS T Max
- Page 1 T Max Toilet/Shower Seat USER’S MANUAL ALL USER’S OF THE EQUIPMENT SHOULD BE AWARE OF THIS DOCUMENT AND ITS CONTENT ISSUE 2 CLASS 1 & CUSTOM MADE DEVICE...
-
Page 2: Table Of Contents
Index Introduction Clinical Review Safety & Stability User’s Guide “Lifting and Handling the Client” Lifting and Handling the Client in & out of T Max Toilet/Shower Seat Client Straps, Harnesses Tilt Operation (Manual) Tilt Operation (Assisted) User’s Guide “Optional Features”... -
Page 3: Introduction

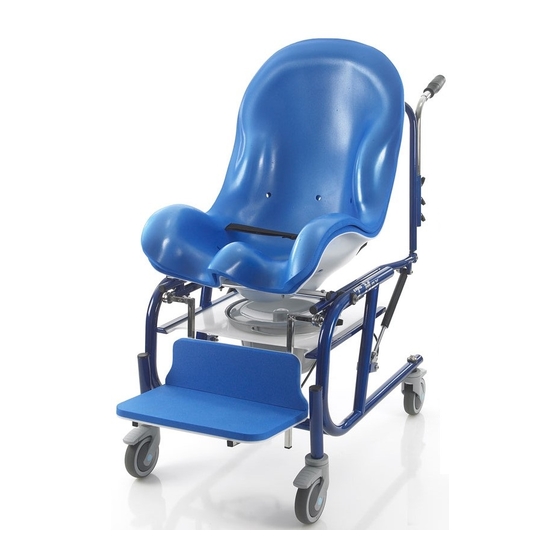

‘T’ MAX TOILET/SHOWER SEAT (Class 1 & Custom Made Device) Introduction The ‘T’ Max range of toilet seats are available In a range of standard and custom sizes to suit the needs of a large number of clients. ‘T’ Max seats provide a high level of postural support and control to assist with bathing and toileting. -
Page 4: Safety & Stability
Safety & Stability • Always check that the Toilet/Shower seat is not damaged and safe to use before placing the client into the seating system. • Inspect and check/clean the wheels, especially the brakes periodically to maintain correct operation. • Always use the brakes whilst the ‘T’... -
Page 5: Lifting And Handling The Client In & Out Of T Max Toilet/Shower Seat
USER GUIDE 1.0 1.1. LIFTING & HANDLING THE CLIENT IN & OUT OF THE ‘T’ MAX TOILET/SHOWER SEAT • Most users of the ‘T’ Max Toilet/Shower Seat will need to be hoisted into the equipment. Manually lifting the client is not recommended, however with some clients it may not be possible to hoist them safely by conventional means and in instances such as this you are recommended to... -
Page 6: Tilt Operation (Manual)
1.3. TILT OPERATION (Manual) • Make sure that all foot brakes are applied to the wheels (Fig.1.3a). • Release both knobs (Fig.1.3b), raise/lower seat to desired position then re-tighten both knobs. • raising the tilt to the full upright position safety pins will click into position on the When rear adjuster rails. -
Page 7: Toilet Seat Pan
USER GUIDE 2.0 (ACCESSORIES) 2.1. TOILET SEAT PAN (if fitted) • Before placing the client in the Toilet Seat make sure that the pan is in place as shown (Fig.2.1a) unless the seating system is to be used over a conventional disabled toilet. •... -
Page 8: Height Adjustable Footrest
2.3. HEIGHT ADJUSTABLE FOOTREST (if fitted) • the ‘T’ Max has an adjustable footrest, it is important that the feet are well supported and the footrest positioned correctly. • Make sure that all foot brakes are applied to the wheels (Fig.2.3a). •... -
Page 9: Cleaning The T Max Toilet/Shower Seat
USER GUIDE 3.0 MAINTENANCE OF THE ‘T’ MAX TOILET/SHOWER SEAT To make sure that the ‘T’ Max Toilet/Shower Seat remains satisfactory it is necessary to carry out simple maintenance. 3.1. CLEANING THE ‘T’ MAX TOILET/SHOWER SEAT • During use the ‘T’ Max Toilet/Shower Seat will require cleaning. This can be done by simply applying a warm damp cloth with a mild detergent to the inside surface of the Moulded Seat to remove any soiling and towel dry. -
Page 10: Visual Inspection
3.4. VISUAL INSPECTION • a monthly basis it is recommended that the equipment is inspected to check for any faults. • Look at the tubular frame and make sure that there are no signs of damage or distortion. • Make sure that the custom moulded seat is securely attached to the supporting framework. -
Page 11: If You Detect A Fault Or Breakage
If during this period the product becomes defective and needs repair then please contact SOS (please see the end of this users guide for details). You can also contact your local wheelchair service regarding any faults requiring attention. - Page 12 If you require further copies of this handout or require further details relating to any of its content, then please contact us (Copyright applies): Units 127/128, Fauld Industrial Park, Tutbury, Staffordshire. DE13 9HS Tel: 0044 (0)1283 520400 Fax: 0044 (0)1283 520401 E-mail: enquiries@specialorthotic.com Web: www.specialisedorthoticservices.co.uk...
