AUX A/V INPUT
A/V OUTPUT
INCLUDED
LEFT CAM
POWER TO LOCKPICK
ORANGE W/BLACK WIRE
GROUND TO LOCKPICK BLACK WIRE
RIGHT CAM
POWER TO LOCKPICK ORANGE W/BLACK WIRE
GROUND TO LOCKPICK BLACK WIRE
USB PROGRAMMING
INPUT
USB FIRMWARE
OPTIONAL
UPDATE INPUT
CAMERA POWER
WIFI ANTENNA
INPUT
PLUG AND PLAY
HARNESS INPUT
A/V INPUTS
2ND REAR CAM
A/V OUTPUT
LEFT CAM
RIGHT CAM
SENSOR INPUT

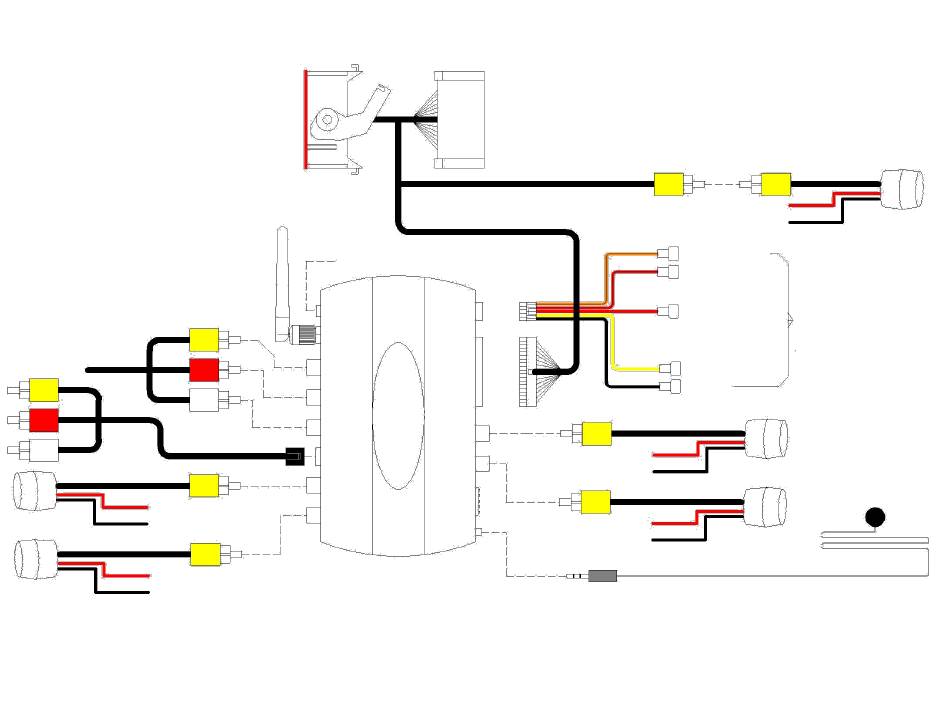

UCONNECT LOCKPICK AIR V2
INSTALLATION OPTIONS
COPYRIGHT 2014 COASTAL ELECTRONIC TECHNOLOGIES, INC.
UNPLUG ORIGINAL RADIO
CONNECTOR THEN PLUG IN HERE
PLUG AND PLAY
NO OTHER CONNECTIONS ARE
NECESSARY
AFTERMARKET 2
REAR CAM
ND
POWER TO LOCKPICK RED W/BLACK WIRE
FRONT CAM
GROUND TO LOCKPICK BLACK WIRE
DIP SWITCH
OPTIONS
REMOTE
FRONT CAM
POWER TO LOCKPICK ORANGE W/BLACK WIRE
GROUND TO LOCKPICK BLACK WIRE
TM
AFTERMARKET REAR CAM
POWER TO LOCKPICK RED W/BLACK WIRE
GROUND TO LOCKPICK BLACK WIRE
ADDITIONAL CAM POWER
REVERSE CAM POWER
12V ACC OUTPUT
OPTIONAL CAMERA
POWER CONNECTIONS
12V CONSTANT
GROUND
REMOTE CONTROL RECEIVER
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Coastal Electronic UCONNECT LOCKPICK AIR V2
- Page 1 GROUND TO LOCKPICK BLACK WIRE SENSOR INPUT POWER TO LOCKPICK ORANGE W/BLACK WIRE GROUND TO LOCKPICK BLACK WIRE RIGHT CAM POWER TO LOCKPICK ORANGE W/BLACK WIRE GROUND TO LOCKPICK BLACK WIRE UCONNECT LOCKPICK AIR V2 INSTALLATION OPTIONS COPYRIGHT 2014 COASTAL ELECTRONIC TECHNOLOGIES, INC.
- Page 2 OF MENU SCROLLING HOLD 1 SEC PRESS 1 TO GO TURN TO GO TO ACTIVATE OR BACK ONE LEVEL UP AND DOWN MENUS IN MENUS IN MENUS SCREEN BACK BROWSE VOLUME ENTER SPEED PRESS TO SELECT COPYRIGHT COASTAL ELECTRONIC TECHNOLOGIES, INC. 2014...
- Page 3 UCONNECT LOCKPICK AIR V2 Installation and Operation Instructions Thank you for your purchase of the Coastal Electronic Technologies, Inc. UCONNECT LOCKPICK AIR. The UCONNECT LOCKPICK AIR has many features and capabilities to unlock and allow full use of your Chrysler/Dodge/Jeep radio PLUS an enormous suite of multimedia functions including multi-camera input and built in WiFi capabilities for Connection and Streaming from Android Smartphone and Tablets.
-
Page 4: Installation
INSTALLATION This written guide will detail the connections for the Lockpick harness and provide reference for general installation and operations. The UCONNECT LOCKPICK AIR is universal for many different Chrysler/Dodge/Jeep models and individual dash disassembly is not addressed in this manual. Please consult a local stereo shop for installation assistance or view our installation videos online. -
Page 5: Application Guide
Option Switches 1. Place Option Switch 1 Down For installations in the 2014-15 Jeep Cherokee 2. Place 2 in the UP position for all applications. 3. Place 3 in the UP position for all applications. 4. Place 4 in the UP position for all applications. 5. - Page 6 Lockpick provides an input on the module for a 2 rear camera video input that allows an extended view that you can enable or disable on demand using on screen menu options. Connect your 2 rear camera to the video connection on the Lockpick module (see installation diagram) and power the camera from the rear camera power provided on the Lockpick harness.
- Page 7 UCONNECT LOCKPICK AIR OPERATION INSTRUCTIONS The LOCKPICK AIR creates a series of on screen menus as well as instrument panel text to allow easy operation and control of its many functions. The Lockpick supports steering wheel menu control or the included remote control can allow direct access to Lockpick Air functions without navigating the menu structure.
- Page 8 Override can be selected here or from the steering wheel for enabling navigation input while in motion or full use of factory A/V input jacks if equipped. The LOCKPICK AIR multimedia source is shown and if selected, will display the video on your screen with sound through your factory system.
- Page 9 LOCKPICK AIR WIFI OPERATION The LOCKPICK AIR includes WiFi capabilities which allow streaming wireless operations from smart phones, tablets and more . Included in the Lockpick capabilities are multiple modes of streaming airplay to allow different types of devices to send video and audio to the Lockpick and factory radio.
- Page 10 Turn on the Mirror function on your Apple or Android device and full multimedia operation is transferred to the Lockpick for viewing and listening. This can include music with associated album art, map, navigation, text messaging, pictures, internet, games, YouTube, Netflix (see Apple restrictions page 1), and more.
- Page 11 Lockpick Air Remote Control Operations The Remote control for the Lockpick Air is battery powered (provided) and communicates with infra-red light to the included pickup sensor. The sensor plugs into the Lockpick module and should be placed in the vehicle at a location easily targeted by the remote.
