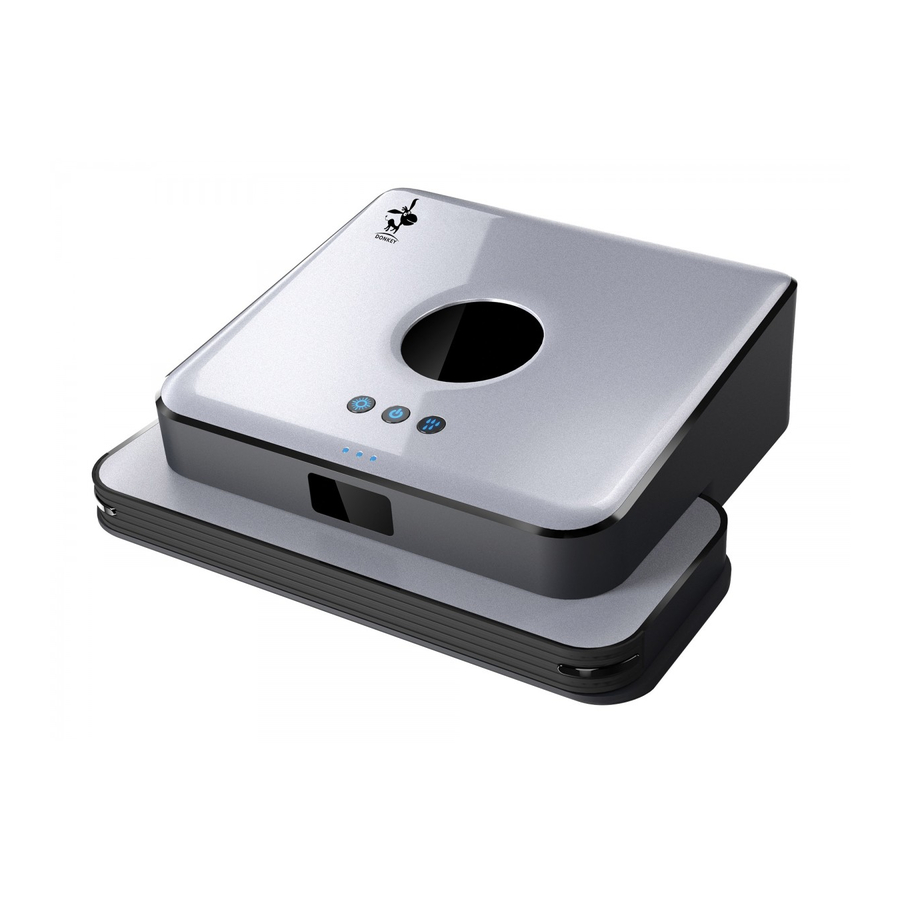

Johnny Vac DONKEY-M1 User Manual
  1. Manuals
  2. Brands
  3. Johnny Vac Manuals
  4. Robotics
  5. DONKEY-M1
  6. User manual

Johnny Vac DONKEY-M1 User Manual

Mopping cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U S E R G U I D E
DONKEY
- M1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DONKEY-M1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnny Vac DONKEY-M1

  • Page 1 U S E R G U I D E DONKEY - M1...

  • Page 2: Table Of Contents

    Robot Mopping Cleaner User Manual Table of Contents: 1. Safety Instruction ................3 1.1 Important notice ................3 1.2 About the Instruction Manual ............3 1.3 Suitable Usage ................3 1.4 Attention Before Use ..............3 1.5 About Power supply and Battery ..........4 1.6 About Upgrade and Unauthorized modification ......4 2.

  • Page 3: Safety Instruction

    1 Safety Instruction Important notice Please do not tear apart the mopping cleaner, including main unit,adapter, GPS navigator randomly. If damaged, please contact professional maintenance team. The product is mainly for indoor use on Floor, not applicable for outdoor. About the Instruction Manual Read the instruction carefully;...

  • Page 4: About Power Supply And Battery

    1.5 About Power supply and Battery Please use the standard power supply to charge the robot.The standard socket should be 100-240V If the power cable or plug is damaged, please replace a new one in time. • Please keep the power adapter away from over-hot or sharp objects. •...
  • Page 5 GPS Navigator - GPS Navigator - GPS Navigator Indicator - GPS Navigator power charge port - GPS Navigator on/off Switch Power adapter Dry Mopping Pad Fixed place for dry mopping cloth - Passage for antidrop off sensor DONKEY - M1 User Guide...

  • Page 6: Specifications

    Wet Mopping Pad Water inlet cover - Water tank - Fixed place for wet mopping cloth - Water outlet cap 2.2 Specifications Basic Specification Voltage ............7.2V Max Power ............ 3.6W Charge Time Main Unit ......... 2h GPS Navigator ......4h Working time after fully recharged Fast Clean ........

  • Page 7: Power Recharge

    3. Power Recharge 3.1 Power Recharge for Main Unit Please find the power charge port in bottom of the robot.Connect one side into the power charge port, the other side into the standard power socket. Please power on the robot until the power indicator shows blue light constantly.

  • Page 8: Function Keys And Indicating Light

    4. Function Keys and Indicating Light Fast Clean Button Fast clean adopts dry mopping pad matched with white mopping cloth; or can adopt wet mopping pad matched with blue mopping cloth. Press the fast clean button, fast clean starts. Press again to stop the function. Constant blue light, entering into the fast cleaning mode Flashing blue light, the fast cleaning mode is stopped Deep Clean Button...

  • Page 9: Cleaning Modes

    5. Cleaning Modes 5.1 Fast Clean a. Introduction Fast clean adopts fast cleaning mopping pad matched with white mopping cloth; Please keep the white cloth dry. Or can adopt deep cleaning mopping pad (with water tank) matched with blue mopping cloth.

  • Page 10: Cleaning Operation

    Note: Please do not use the mopping robot on carpet. The mopping cloth is reusable Fast clean mopping pad matched with white mopping cloth; Please keep the white cloth dry.Deep cleaning mopping pad (with water tank) matched with blue mopping cloth. Please keep the blue cloth wet.

  • Page 11: Gps Navigator

    Stop/Continue Donkey will stop cleaning if it’s lift up or it’s function keys are pressed.When Donkey is paused to work, the function keys of “Deep Clean” or “Fast Clean” will give out flashing blue light. Meanwhile, Donkey has saved the map of cleaned area. If you want to continue cleaning, please put Donkey within 2 meters away from the GPS navigator.

  • Page 12: How To Use One Gps Navigator

    7.2 How to use one GPS navigator Please place the GPS navigator in the middle of the room. And start the robot near GPS navigator. The robot starts to clean the area according to the cleaning mode and signal given by the GPS navigator. If you have many rooms, to ensure the cleaning coverage, please put GPS navigator in larger room.

  • Page 13: Operation Guide

    8. Operation Guide 8.1 White Color Cloth Installation Operation Steps 1. Please get down the dry mopping pad. 2. Pave the white color mopping cloth and put the dry mopping pad on. Stuck the edges of white color cloth into the mopping pad. Don’t conceal the middle passage of mopping pad.

  • Page 14: Usage Of Deep Clean Mopping Pad

    Photo Reference 8.3 Usage of Deep Cleaning Mopping Pad Under fast or deep cleaning modes, the deep cleaning mopping pad exudes water, to enable the blue color mopping cloth wet. - Add water into the water tank Operation Steps • Please open the water inlet cover and fill water in.Please tight the cover to avoid water seepage.

  • Page 15: Set Up Gps Navigator

    Note: The exudation rate of liquid is dependent on the liquid and floor materials. When first starting deep clean mode, please do not make the cloth too wet. You can increase humidity according to your demands. When operating deep clean mode, please ensure someone is here. After the robot finishing the work, please lift off the deep clean mopping pad.

  • Page 16: Enable Cleaning Function

    How to improve the performance of GPS navigator? GPS navigator instructs the robot by signal refraction from the ceiling. So please put the robot in open ceiling without barriers. Please do not move the GPS navigator when the robot is working. Please do not put the GPS navigator on the floor in case the robot crashes towards it.

  • Page 17: Maintenance

    Keep pressing the power button for 2 seconds, you can turn down Donkey mopping robot. Press the GPS navigator switch key,you can turn down the GPS navigator. The indication light of the GPS navigator will also put off. 9. Maintenance 9.1 The Clean and Storage of Donkey Mopping Robot BEFORE CLEANING THE ROBOT,PLEASE CUT OFF THE POWER: •...

  • Page 18: How To Maintain The Wheels

    9.2 The Maintenance of Wheels After used, the wheels of the robot can be stucked with scraps of paper.It can affect the performance of robot. Please check and clean regularly.If it’s difficult to clean slots of the wheels, please use Pliers or scissors 9.3 The Maintenance of Deep Clean Mopping Pad You can put the Deep clean Mopping Pad into water for clean.
  • Page 19 If Donkey mopping robot has troubles when being recharged, The system indication light can have the following circumstances: Common Troubles Possible reasons Solutions f. The 2nd Indication Failure in robot system This trouble is not a recharging problem. light gives out constant The solution can be checked from trouble red light g.
  • Page 20 Common Troubles Po ssible reasons Solutions l . The Indication light The GPS navigator is Please recharge the GPS navigator. of GPS navigator gives lacking power out flashing red light m. During the clean The signal of GPS Please keep the GPS navigator away period of Donkey navigator is affected from Plasma or LCD TV.
  • Page 21 The cleaning cloth is Please get down the cloth and install not installed well again. Please follow the rules: • Please avoid concealing the middle passage of the cleaning pad. • Ensure the cleaning cloth is fixed well with the mopping pad. The wheels or tread Please check the wheels and ensure it’s has troubles...
  • Page 24 Residential and commercial vacuum cleaner specialist PARTS, ACCESSORIES & VACUUM BAGS VISIT OUR WEBSITE AT WWW.JOHNNYVAC.COM...
