Gentworks GW-362 Quick Start Manual

DRINKING FOUNTAIN
STAINLESS STEEL - WITH UNDERSHROUD

INSTALLATION INSTRUCTIONS

THIS GUIDE DOES NOT COVER THE DESIGN OR INSTALLATON OF THE PLUMBING SUPPYLING THE DRINKING FOUNTAIN
•
Decide whereabouts the drinking fountain should be positioned. The drinking fountain requires a drainage connection and must be
connected to a potable (drinking quality) mains water supply.
•
Remove the base plate by unscrewing the 8x Pin Torx security screws.
•
Fit the waste outlet and water dispenser ensuring that the water dispenser is pointing in the correct direction and that the back nut
is tight. A small amount of clear silicon sealant can be applied to the dispenser base flange to help prevent rotation.
•
With the waste outlet and water dispenser fitted, work out where you are going to mount the drinking fountain, taking into account
the recommend adult or junior mounting heights. [See diagram]
•
Draw marks on the wall for the wall-moun ng bracket.
•
Prior to drilling into walls, check there are no hidden electrical wires, cables or water supply pipes and if using power tools wear the
correct PPE.
•
The separate wall-moun ng bracket should be fixed to the wall in a horizontal posi on. Use the appropriate wall fixings for the wall
type you have. [Wall fixings not supplied]
•
The drinking fountain can be liGed into place and hung on the installed moun ng bracket. Install suitable wall fixings through the two
lower holes at the back of the drinking fountain to secure it to the wall.
•
With the drinking fountain fixed to the wall, connect a 32mm trap to the waste outlet. This models requires a shallow 32mm P trap
such as the Mcalpine P10 and the use of a flexible fiIng like the Mcalpine FLEXCON5 offers connec on flexibility. [Trap and flexible
fiIng are not supplied with the product]
•
If not already present, fit a stopcock and draining cock to the 15mm copper supply pipe, this will enable the fountain to be drained in
frosty weather conditions. If you have excessive water supply pressure than a pressure reducing valve should be installed.
•
Thoroughly flush through the water supply pipe to ensure no debris can enter the drinking fountain and cause damage to the
dispenser.
•
Make the cold water connection to the dispenser with the 15mm coupler provided. A suitable thread sealant should be used.
•
Adjust the Bubbler dispenser so that water flow stream aims into the centre of the bowl:
•
WRAS Bubbler: Adjust the water flow using the screw in the lower part of the bubbler.
•
NSF Bubbler adjustment: Remove the chrome-plated nut around the push button and adjust very slightly the screwdriver slot
underneath.
•
Silicon around the drinking fountain, going along the back edge and down the sides.
•
Check for any leaks.
•
Refit the base plate.
11/17
The Barn, Emmington,OX39 4AA | www.gentworks.co.uk | sales@gentworks.co.uk | Ph. +44(0)1844
MODEL
GW-362
Due to ongoing product development details are subject to change without no ce

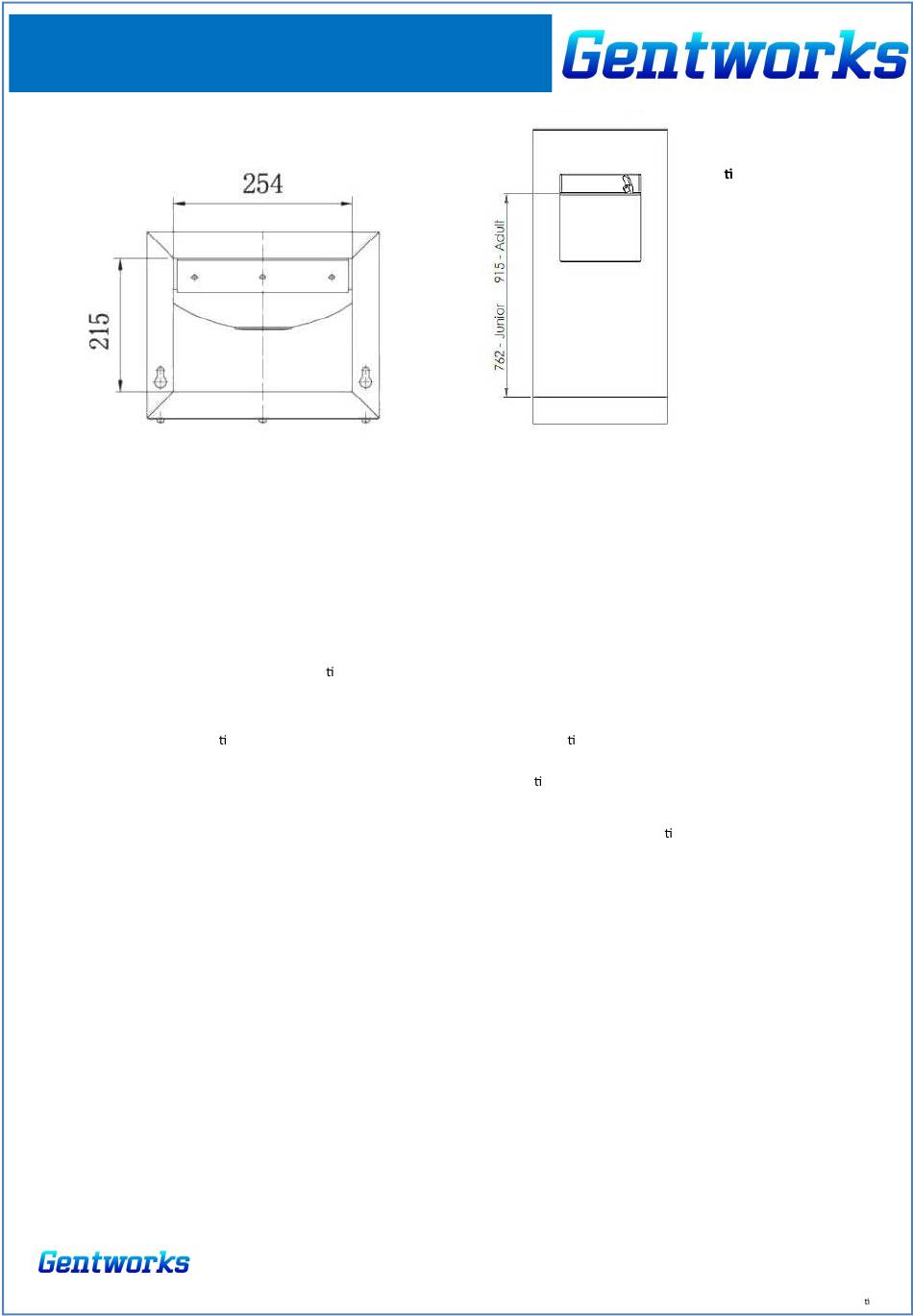

Moun ng Heights: Top of front
Apron to finished floor - Junior
762mm, Adult 915mm
353210
