Multi-function unipolar tester for electric installations with the live wire detector

Advertisement

Quick Links

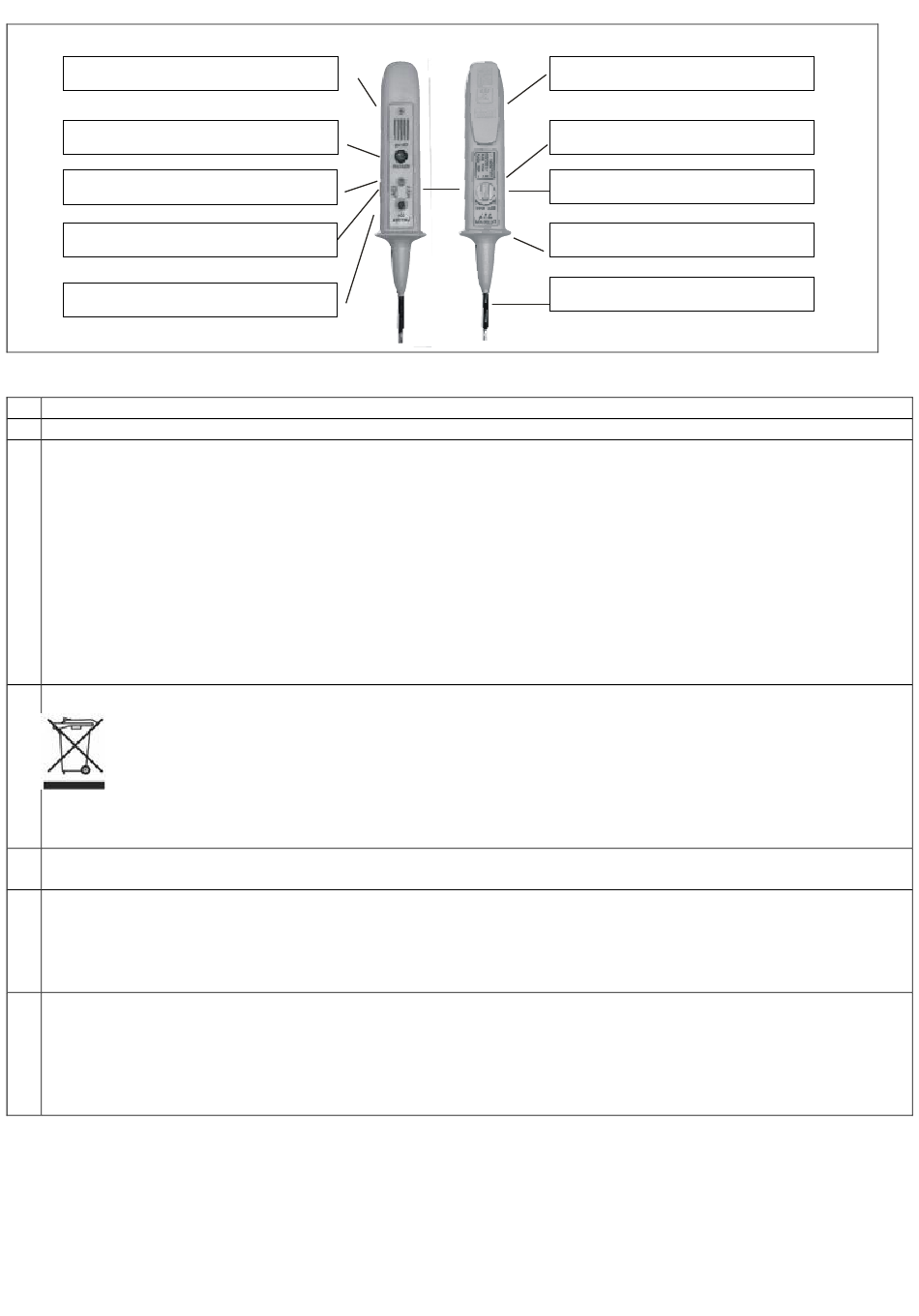

Manual 777
Audible alarms
Detector switch
Detection indicator
the CONT contact
Visual indicator
1
Multi-function Unipolar Tester for Electric Installations with the Live Wire Detector
2

General description

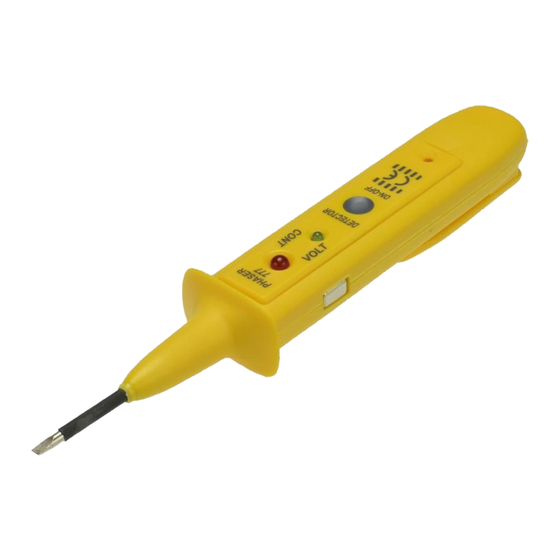

FAZER 777 DETECTOR is intended for performing basic tests of 220V/380V electric installations, car
installations and other electric installations. With Fazer 777 you can also check the operations of electrical
devices. As for electronics, Fazer 777 allows, among other things, to detect 0/1 and check resistors,
capacitors, diodes and transistors for malfunction. An indispensable function of Fazer 777 is detection of
variable ("~") voltage without the need of contact with the object. Fazer enables detection of wires going
inside walls at a depth of up to 50 cm as well as to detect "PHASE" in all locations, where the contact is
impossible. It is also easy to detect rupture of an insulated wire. The ability to set the detection sensitivity
allows to detect voltage from the distance in the range of 0.3 cm - 50 cm, depending on external conditions.
The device does not have a power off switch. Fazer consumes power only during the measurement. Precise,
carefully developed Fazer's electronic circuitry ensures very low power consumption. Alkaline batteries LR44
allow to perform more than 10000 measurements. Fazer cannot be dismantled.
3

Rules for correct disposal of used equipment

1. The sign shown to left means that you should not place used
equipment in a trash bin, together with usual home and commercial waste products.
2. Elements used to manufacture this device should be recycled under the system of selective
collection of electric and electronics equipment (in accordance with the Directive
WEEE2002/96/WE).
3. To dispose of used equipment you should return it to the vendor or deliver to the electric equipment
collection point. Device's weight <40g.
4

Sales package:

FAZER 777 DETECTOR with batteries, a detailed user manual with applications, disposable packaging.
5

Correct operations

- protect the device against humidity higher than 90% and the temperature above 60
- do not hit the device against hard objects and do not separate elements of the device's housing;
- do not the measurement pint as a lever;
- the hardened screwdriver is intended for screws not thicker than 4 mm.
6

24 months warranty

The manufacturer guarantees failure-free operations of the device. The warranty is valid for 24 months from
the purchase date and for 30 months from the production date. The manufacturer's warranty shall only be
respected if the device is used in accordance with correct operation recommendations. The warranty does not
cover batteries and effects of the battery damage.
(Purchase date, stamp and signature of the seller)
FAZER 777 DETECTOR
Manual 777
1
Battery cover
Sensitivity knob
the VOLT contact
Safety screen
The Measurement pin
o
C;

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 777 and is the answer not in the manual?

Questions and answers

Summary of Contents for FAZER 777

  • Page 1 FAZER 777 DETECTOR is intended for performing basic tests of 220V/380V electric installations, car installations and other electric installations. With Fazer 777 you can also check the operations of electrical devices. As for electronics, Fazer 777 allows, among other things, to detect 0/1 and check resistors, capacitors, diodes and transistors for malfunction.
  • Page 2 Fazer 777 operates in one of the four basic modes: PHASE, CONT, VOLT and DETECTION. In the PHASE mode, Fazer 777 uses the operator's body as electric earth, and in the CONT and VOLT modes Fazer 777 uses the skin's conduction. Thus, good contact between a hand and the contact is advisable. In order to improve this contact you can slightly moisten your fingers before performing a measurement in the CONT and VOLT modes.
  • Page 3 Phase and zero detection is a basic test, equivalent to operations of the so called neon tester, the only difference being that in case of Fazer there is no need to touch a metal contact. Fazer should be held by its body.
  • Page 4 With this application you can find a damage location in electric devices. Grab one of the pins of the power cable's plug with one hand and touch the plug's other pin with the Fazer's measurement pin in order to check for the continuity of conduction.
  • Page 5 Set the detection sensitivity (Fazer's bottom side) almost to the max. Press the DETECTION button and move the measurement pin close to a tested wire. If the wire (or a device) is connected to 220V, Fazer will react at a distance of approx. 0.5m. By lowering the sensitivity level you can precisely determine, which wire is a "phase"...
  • Page 6 High voltage cable in cars with spark ignition emit, during their operation, electric field related with generation of high voltage. Due to Fazer's high-level sensitivity in the PHASE and DETECTION mode you can detect this field without damaging insulation. Turn off the motor. Detach high voltage cables running to ignition plugs;...
