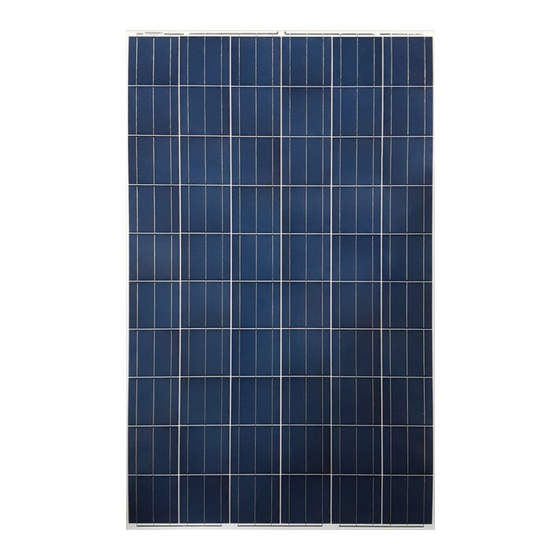

- Page 1 Installation manual REC PEAK ENERGY SERIES PHOTOVOLTAIC MODULES...
-
Page 2: Table Of Contents
CONTENTS Introduction Electrical Installation Mechanical Installation Operating limitations Maintenance Legal Information REC Peak Energy Series Installation Manual Revision G.4 - 01 2012... -
Page 3: Introduction
INTRODUCTION Thank you for choosing REC photovoltaic modules. The REC Peak Energy series modules are ideal for solar systems designed to deliver long-lasting and reliable power output. These modules have been created through smart design and manufactured to the highest quality and environmental standards. -
Page 4: Electrical Installation
IEC 61730. System Requirements: REC photovoltaic (PV) modules should only be used in systems where they meet the specific technical requirements of the system as a whole. Ensure that other system components will not cause mechanical or electrical damage to the modules. - Page 5 Torque Torque [in-lbs] [ft-lbs] [Nm] 4 - 6 21.2 – 13.3 Stranded Stranded 10 - 14 5.3 – 2.1 Stranded / Solid GROUNDING Laminate Frame Star Washer Grounding Cable REC Peak Energy Series Installation Manual Revision G.4 - 01 2012...
- Page 6 MAXIMUM WIND LOAD (IEC 61215) 244 KG/M² (2400 PA) MAX SERIES FUSE RATING (UL 1703) MAX REVERSE CURRENT (UL 1703) MAX SERIES FUSE RATING (IEC 61215) MAX REVERSE CURRENT (IEC 61215) REC Peak Energy Series Installation Manual Revision G.4 - 01 2012...
- Page 7 • Exercise extreme caution when wiring the modules and look out for damaged cable ends, split cable ends, dirt, etc. • Never insert metallic or otherwise conductive objects into the plugs or sockets. • Ensure that all electrical connections are completely dry before they are assembled. • Keep all materials, tools and working conditions clean and dry. • Always use appropriate safety equipment such as insulated tools and insulated gloves. REC Peak Energy Series Installation Manual Revision G.4 - 01 2012...
-
Page 8: Mechanical Installation
It is also important to observe relevant local codes and regulations for health and safety and accident prevention. A) FIRE GUIDELINES Utilize the following fire safety guidelines when installing REC PE series modules: • REC PE Series modules have a Class C Fire Rating. A maximum slope of 5 in/ft is required to maintain the fire class rating. - Page 9 • Never attempt to disassemble the modules. E) MOUNTING REC PE Series modules are designed strictly for capturing solar radiation and are not suitable for installation as overhead or vertical glazing. The distance between the modules and the installation surface must be at least 10 cm (4 in) to ensure adequate cooling.
- Page 10 NOTE: In areas of snow build-up modules can be subjected to forces in excess of the stated limit even when snow depth does not appear extreme, thus causing damage to the framework. If the installation is likely to be affected by this, further suitable module support is recommended on the lower row of modules. ARRAY REC Peak Energy Series Installation Manual Revision G.4 - 01 2012...
- Page 11 Thickness of walls for mechanical connections: min. 0.156 inch (4.0mm) Thickness of walls exposed to buckling load: min. 0.08 inch (2.0mm) Moment of Inertia for profile area about X-X: min. 0.4 inch (19.2cm REC Peak Energy Series Installation Manual Revision G.4 - 01 2012...
- Page 12 Mounting utilizing clamps on the two short sides of the module have been found to be in compliance with UL 1703 requirements for a maximum design load of 1600 Pa (33.4 lbs/ft²). SHORT SIDE MOUNTING REC Peak Energy Series Installation Manual Revision G.4 - 01 2012...
- Page 13 Preventing galvanic corrosion To avoid galvanic corrosion, use of stainless steel fastening materials are the preferred choice, but galvanized or hot dipped zinc plated fasteners are acceptable. MOUNTING USING MOUNTING HOLES REC Peak Energy Series Installation Manual Revision G.4 - 01 2012...
-
Page 14: Operating Limitations
34,1 34,3 34,5 SHORT CIRCUIT CURRENT - I 6,79 6,85 6,90 6,96 7,01 7,06 Nominal cell operating temperature NOCT (800 W/m², AM 1.5, windspeed 1 m/s, ambient temperature 20°C). REC Peak Energy Series Installation Manual Revision G.4 - 01 2012... -
Page 15: Maintenance
REC Solar AS and/or in the event of an intentional or grossly negligent breach of obligations by a legal representative or vicarious agent. - Page 16 B) DECLARATION OF CONFORMITY REC Peak Energy Series Installation Manual Revision G.4 - 01 2012...
- Page 17 Renewable Energy Corporation ASA Kjørboveien 29 PO Box 594 NO-1302 Sandvika Norway Tel: +47 67 57 44 50 Fax: +47 67 57 44 99 www.recgroup.com...
