Skil PWRCore 20 Owner's Manual

Hide thumbs Also See for PWRCore 20:

Advertisement

Quick Links

Download this manual
Model: CR540601E
TM

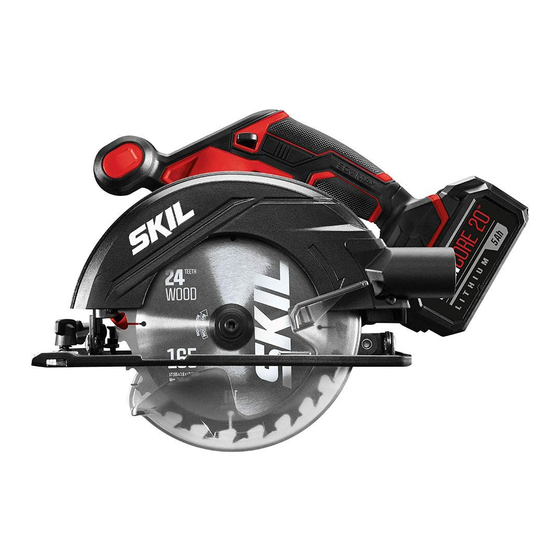

Cordless Circular Saw
WARNING: To reduce the risk of injury, the user must read and understand the
Owner's Manual before using this product. Save these instructions for future reference.
1300-017-545
www.skil.com.au
OR
For Customer Service

Advertisement

loading
Need help?

Need help?

Do you have a question about the PWRCore 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skil PWRCore 20

Summary of Contents for Skil PWRCore 20

  • Page 1 Model: CR540601E Cordless Circular Saw WARNING: To reduce the risk of injury, the user must read and understand the Owner’s Manual before using this product. Save these instructions for future reference. 1300-017-545 www.skil.com.au For Customer Service...
  • Page 2 Lock-off Button Trigger Switch Auxiliary Handle Upper Guard Bevel Gauge Bevel-Adjustment Knob Extension for Vacuum Cleaner Lower-Guard Lift Lever Rip-Fence Locking Knob Foot Lower Guard Saw-Line Window Rip Fence (included with some models) Depth-of-cut Gauge Spindle-Lock Button Main Handle Hex key Key Storage Area Depth-of-cut...

  • Page 3: Specifications

    SPECIFICATIONS Rated Voltage 18V d.c. (20V max) No-load Speed 4500 /min Blade diameter 165mm Blade arbor 16mm Cutting depth at 90° 54mm Cutting depth at 45° 44mm 3 mm Battery- Release Button Attach Detach...
  • Page 4 54mm ≥54mm 90�...
  • Page 5 Ø35-36mm NOT STANDARD INCLUDED...
  • Page 9 INTRODUCTION serious personal injury. b) Use personal protective equipment. Always wear • This tool is intended for lengthways and crossways eye protection. Protective equipment such as a dust cutting of wood with straight cuts as well as angle cuts mask, non-skid safety shoes, hard hat, or hearing up to 50°...
  • Page 10 from those intended could result in a hazardous situation. a “live” wire will also make exposed metal parts of the h) Keep handles and grasping surfaces dry, clean power tool “live” and shock the operator) and free from oil and grease. Slippery handles and f) When ripping always use a parallel guide or straight grasping surfaces do not allow for safe handling and edge guide.
  • Page 11 • Charging battery ACCESSORIES ! read the safety warnings and instructions • SKIL can assure flawless functioning of the tool only provided with the charger when original accessories are used • Removing/installing the battery 6 • Use only saw blades that correspond with the •...

  • Page 12: Application Advice

    - remove flange handle firmly with the other hand ! make sure that clamping surfaces of flanges are - place tool with front end of foot flat on workpiece perfectly clean and face the blade ! ensure that the saw teeth are not engaged into the - open lower guard with lever and hold it while you mount workpiece saw blade with saw teeth and arrow printed on saw...

  • Page 13: Maintenance

    • Plunge cutting r - set desired cutting depth - tilt tool forward with Saw-Line Window lined up with desired line of cut marked on the workpiece - open lower guard with lever - just before blade enters workpiece, switch on tool and gradually lower back end of tool using front end of foot as hinge-point - gradually move tool downward as well as forward...

  • Page 14: Warranty

    WARRANTY SKIL WARRANTY POLICY For all SKIL warranty & enquiries, please contact 1300 01 SKIL (1300 01 7545) Monday to Friday 9:00am to 5:00pm Chervon Australia Pty Ltd ABN 36 165 077 501 (“Chervon”) warrants to the original domestic purchaser that this product...

This manual is also suitable for:

Cr540601e
