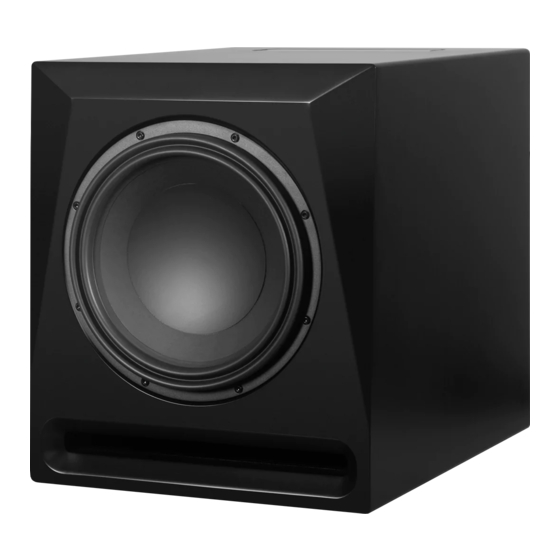

- Page 1 Airmotiv RS13 Reference Subwoofer...
-
Page 2: Important Safety Precautions And Explanation Of Symbols
Please read this manual thoroughly before attempting to install, configure, or operate the Emotiva Airmotiv RS13 Reference Subwoofer. After successful installation and configuration of the RS13, be sure to retain this manual in a safe place for future reference. - Page 3 The power cable for the RS13 should be unplugged from the outlet during severe electrical storms, or when unused for a long period of time. Only replace the fuse(s) in the RS13 with fuse(s) of proper value and voltage rating. The RS13 should only be cleaned as directed in the manual.
-
Page 4: Fcc Interference Statement
Connect the equipment to an outlet on a circuit different from that of the receiver. Consult the manufacturer or an experienced radio/TV technician for help. For questions regarding service, please contact: Emotiva Audio Corporation Attn: Repair Department 139 Southeast Parkway Court... -
Page 5: Table Of Contents
Features ..........................5 Unpacking ..........................6 Quick Start .........................7 Airmotiv RS13 Reference Subwoofer ...............8 Airmotiv RS13 Rear Panel Connections & Controls .......... 10 Airmotiv RS13 Control Panel (top) ................. 12 Subwoofer Placement and Configuration ............14 Care and Maintenance ....................15 Emotiva Audio Corporation Five-Year Limited Warranty ....... 16 Notes .......................... - Page 6 AIRMOTIV RS13 R efeRence ubwOOfeR Page 2...
-
Page 7: Introduction
RS13, and may be fully bypassed when you use the RS13 with a system that already has its own bass management. The Airmotiv RS13 also offers the choice of two different bass profiles. The Deep profile offers the flattest overall performance. The Flat profile imposes a very slight rolloff at the very lowest subsonic frequencies, in return for slightly more maximum output at higher frequencies. -
Page 8: About This Manual
This manual will provide you with all the information you need to achieve great performance, accurate sound, and many years of reliable service from your Airmotiv RS13 Reference Subwoofer. We suggest that you read through the entire manual; we kept things as short and direct as possible. -
Page 9: Features
RS13. • Full five year warranty - A full five year warranty ensures that you’ll enjoy your Airmotiv RS13 Reference Subwoofer for many years to come. You can find more information about the Airmotiv RS13 Reference Subwoofer on our website at www.emotiva.com. -
Page 10: Unpacking
Unpacking Your Airmotiv RS13 Reference Subwoofer was carefully packed and should reach you in perfect condition. If you notice any shipping damage or other issues when you unpack it, please contact Emotiva immediately. Gently remove your Reference Subwoofer from the packing carton and remove all wrappings and shipping material. -
Page 11: Quick Start
Quick Start To get the most from your Airmotiv RS13 Reference Subwoofer, we urge you to read the entire manual. If you just can’t wait to hear how great your RS13 sounds, this section will cover the basics you need to get started. -
Page 12: Airmotiv Rs13 Reference Subwoofer
Airmotiv RS13 Reference Subwoofer The Airmotiv RS13 Reference Subwoofer delivers the ultimate in technical performance, precision, musicality, and just plain awesome bass output. Unlike lesser subs, the RS13 can actually deliver huge amounts of clean deep low bass, all the way... - Page 13 • Balanced Loop Output (pass through). Electronics All of the operating controls and status indicators on the Airmotiv RS13 are located on the top panel under a removable, magnetically attached, smoked plastic cover. • Powerful dual-core 48 bit DSP audio processor for optimum precision and flexibility.
-
Page 14: Airmotiv Rs13 Rear Panel Connections & Controls
® POWER FUSE All audio inputs and AC power connections for the Airmotiv RS13 are located on the rear panel. 1. Service Port The service port is used by the factory to configure the DSP firmware in the RS13. 2. Line Level Inputs Use the Left and Right Line Level Inputs to connect the RS13 to a line level audio source that has stereo subwoofer outputs. - Page 15 Reference Subwoofer. 6. Fuse Holder The AC line fuse for the Airmotiv RS13 is located directly beneath the IEC Power Receptable on the rear panel. (See Page 15 for details about how to change the AC line fuse.) 7.
-
Page 16: Airmotiv Rs13 Control Panel (Top)
-20 dB +15 dB The configuration controls on the Airmotiv RS13 Reference Subwoofer are located under a tinted plastic cover located near the rear of the top panel. The cover is attached magnetically - simply lift to remove it and access the controls. - Page 17 4. Status LED The Status LED on the Airmotiv RS13 provides information about the status of the RS13. • An UNLIT Status LED indicates that the main AC Power switch is Off or there is no AC power.
-
Page 18: Subwoofer Placement And Configuration
RS13 will get slightly warm in normal use, no special ventilation or clearance is required. The Airmotiv RS13 may be used with a wide variety of different systems and how you configure it will depend on the type of system you have. A properly configured subwoofer should add depth... -
Page 19: Care And Maintenance
Note: DO NOT use any sort of liquid or wet cloth on the woofer cone, grill, or control panel. Replacing The Main AC Line Fuse The main AC power fuse on the Airmotiv RS13 Reference Subwoofer is accessed from the rear panel. In the unlikely even that you need to replace the fuse, here’s how: •... -
Page 20: Emotiva Audio Corporation Five-Year Limited Warranty
The original owner must make a claim within the Term of the Warranty. A claim shall not be valid (and Emotiva has no obligation related to the claim) if it is not made within the Term and if it is not made in strict compliance with the requirements of the “How do you get service?”... - Page 21 (v) to consumable parts, such as batteries or failure of or damage to the Product caused by batteries; (vi) if any Emotiva serial number has been removed or defaced on the product; (vii) glass or plastic panels, cabinetry, trim or other appearance items; (viii) cosmetic wear or damage to remote controls by user.
- Page 22 What if my product is damaged on the way to you? Emotiva is not liable for damages that may incur while an item is in transport to us. Please purchase insurance when you ship your item. If your Product was not adequately packaged, we will refuse receipt and the damaged package will be returned to you at your cost.
-
Page 23: Notes
In keeping with our policy of ongoing product improvement, we reserve the right to make changes to the design and features of our products without prior notice. Airmotiv RS13 Reference Subwoofer User Manual Revision 1.0 February 2020 Page 19...
