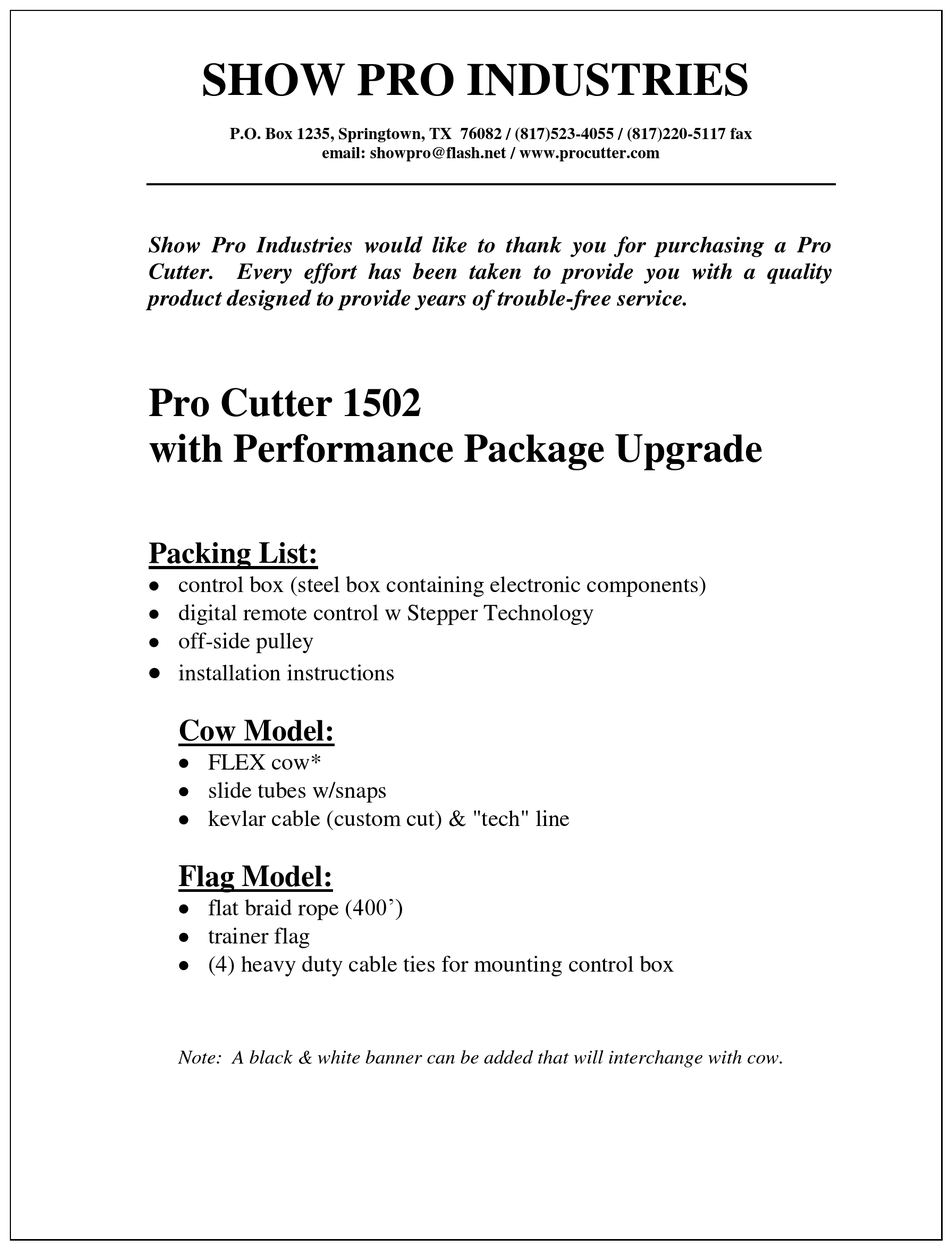

SHOW PRO INDUSTRIES
P.O. Box 1235, Springtown, TX 76082 / (817)523-4055 / (817)220-5117 fax
email: showpro@flash.net / www.procutter.com
Show Pro Industries would like to thank you for purchasing a Pro
Cutter. Every effort has been taken to provide you with a quality
product designed to provide years of trouble-free service.
Pro Cutter 1502
with Performance Package Upgrade
Packing List:
control box (steel box containing electronic components)
digital remote control w Stepper Technology
off-side pulley
installation instructions
Cow Model:
FLEX cow*
slide tubes w/snaps
kevlar cable (custom cut) & "tech" line
Flag Model:
flat braid rope (400')
trainer flag
(4) heavy duty cable ties for mounting control box
Note: A black & white banner can be added that will interchange with cow.
Advertisement
Table of Contents
Related Manuals for Show Pro Industries Pro Cutter Cow Series
Summary of Contents for Show Pro Industries Pro Cutter Cow Series
- Page 1 P.O. Box 1235, Springtown, TX 76082 / (817)523-4055 / (817)220-5117 fax email: showpro@flash.net / www.procutter.com Show Pro Industries would like to thank you for purchasing a Pro Cutter. Every effort has been taken to provide you with a quality product designed to provide years of trouble-free service.
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS: Cow Model: Mount control box: Securely attach control box on one side of arena. It should be mounted so pulleys on bottom of box are approximately 45 inches from the ground. Mount return pulley: Mount off-side return pulley on opposite side of arena in horizontal position. - Page 5 INSTALLATION INSTRUCTIONS: Flag Model: Mount control box: Securely attach control box on one side of arena. It should be mounted so pulleys on bottom of box are approximately 45 inches from the ground. Mount return pulley: Mount off-side return pulley on opposite side of arena in horizontal position.
- Page 6 FRONT VIEW - FLAG MODEL Fasten rope to ends of flag GROUND OVERHEAD VIEW - FLAG MODEL Pro Cutter 5" Idler Pulley...
-
Page 7: Front View
Pro Cutter Flag models with optional Cable Tensioner FRONT VIEW Cable Tensioner Fasten rope to ends of flag GROUND TOP VIEW Pro Cutter Cable Tensioner... - Page 9 Operating Instructions: Following is a brief description of the various switches and dials: POWER: Flip POWER switch ON to energize control box. Red POWER light will illuminate. The unit requires 5 seconds to initialize. Avoid pressing any control buttons while unit initializes. MANUAL: Operate control box left, right, and change speeds.
-
Page 10: Additional Features
* Superior radio system: Better range, less interference. * Large drive system: Heavy-duty industrial components * Weather-tight NEMA enclosure *Dynamic braking Thank you for choosing.... SHOW PRO INDUSTRIES P.O. Box 1235, Springtown, TX 76082 / (817)523-4055 / (817)220-5117 fax email: showpro@flash.net / www.procutter.com... - Page 11 ERFORMANCE ACKAGE SYSTEM UPGRADE Your Pro Cutter is now equipped with the all new Performance Package. This full system upgrade enhances your training experience by giving the rider the ability to make speed adjustments from horseback using STEPPER technology, and an ultra-high performance remote control radio package.
- Page 12 (programming) process which requires opening the Pro Cutter drive box with power applied. Care must be taken to avoid contact with live circuits or electric shock may occur. Show Pro Industries accepts no responsibility for damage or injury resulting from contact with live electrical circuits. PROGRAM RADIOS AT YOUR OWN RISK.
-
Page 13: Troubleshooting
Important Safeguards: Electrical enclosure (control box) should be protected with a non-metal roof or shield. This not only protects the paint finish but also keeps rubber components (gasket, boots, antenna, etc.) from drying out. Warning: Electric shock or malfunction could occur if power cord or plug is damaged in any way. -
Page 14: Limited Warranty
(2) years from the date of original purchase. During the warranty period, Show Pro Industries will repair, or at its option replace without charge, any SPI product (excluding normal wear items), providing it is returned to the factory, shipping prepaid, and is proven to be defective during the subsequent factory inspection.
