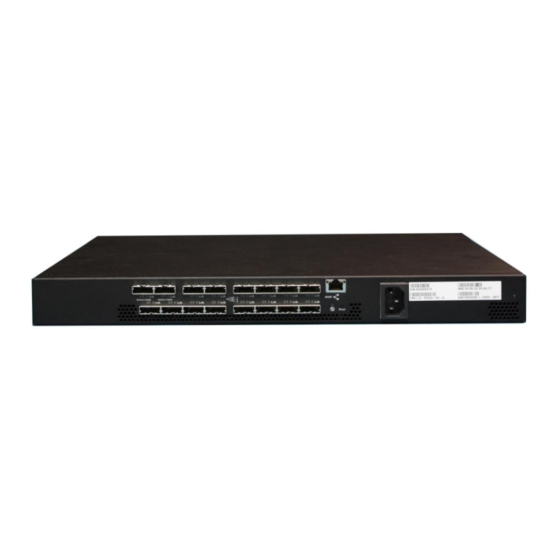

A51606-SW 48-Port SAS Switch

QUICK SAS SWITCH INSTALLATION

To install the A51606-SW SAS Switch, follow these steps:
1. Unpack the Switch and inspect it for damage. Place the shipping carton on a grounded surface before removing the Switch
from the carton.
2. Place the Switch in a location that ensures adequate open space behind the fans and in front of the air intakes.
WARNING:
To prevent the Switch from overheating, do not operate it in an environment that exceeds the maximum
recommended ambient temperature of 45°C (113°F).
3. Attach the power cords to the power inputs by pushing firmly all the way in on the fan side of the Switch. Plug the other end of
the power cord into the main power source.
WARNING:
Provide the Switch with a proper AC-protective earth ground connection. Never defeat the ground
conductor or operate the Switch in the absence of a suitably installed ground conductor.
4. Check that Java 8 update 40 or later is installed on the host system that will run the
5. The 10/100 Ethernet connector (RJ-45 connector) on the SAS connector side of the Switch provides access to the SDM
Domain Manager utility. Use this utility to configure and manage the Switch.
- Use a standard RJ-45 cable, if connecting to an external Ethernet hub or Switch.
6. Plug the other end of the RJ-45 cable into an Ethernet hub/Switch or a computer. Start the SDM_GUI.jar utility not the
imbedded version.
WARNING:
Do not use the imbedded SDM that uses a web browser , it is out dated.
7. Connect the Switch to your hardware configuration.
Refer to the A51606-SW SAS Switch User Guide provided on the documentation CD for examples of hardware configurations
and for the types of connectors and cables needed.

SWITCH DEFAULTS

Parameter
IP Address
Subnet Mask
Gateway Address
DHCP
Warning Temperture Limit
Critical Temperature Limit
Warning Fan Limit
Critical Fan Limit
User
Password
Zoning password
WWN
Value
192.168.1.100
255.255.255.0
192.168.1.1
disabled
70
°C
80
Maximum allowable temperature is 80
°C
10,000 rpm
5,000 rpm
admin
admin
Password is "blank"
On the label on the back
SAS Domain Manager Utility.
°C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A51606-SW and is the answer not in the manual?

Questions and answers

Related Manuals for ASTEK A51606-SW

Summary of Contents for ASTEK A51606-SW

  • Page 1 Do not use the imbedded SDM that uses a web browser , it is out dated. 7. Connect the Switch to your hardware configuration. Refer to the A51606-SW SAS Switch User Guide provided on the documentation CD for examples of hardware configurations and for the types of connectors and cables needed.
  • Page 2 The default IP address provides initial identification of the Switch on a network. To change the IP address, use the SDM-GUI interface explained in the A51606-SW SAS Switch User Guide. For network management, you can contact your system administrator to create a static reservation for this IP address.
  • Page 3 To Change from DHCP to Static IP Address Find the SAS address of the Switch. “xip -i get avail” (need to remove the “:” from the SAS address) Disable DHCP. “xip -i “SAS address from step 1” set DHCP 0” Change the IP address “xip -i “SAS address from step 1”...
