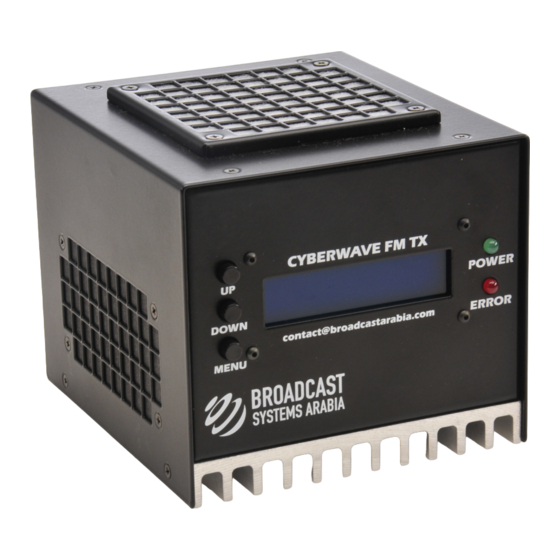

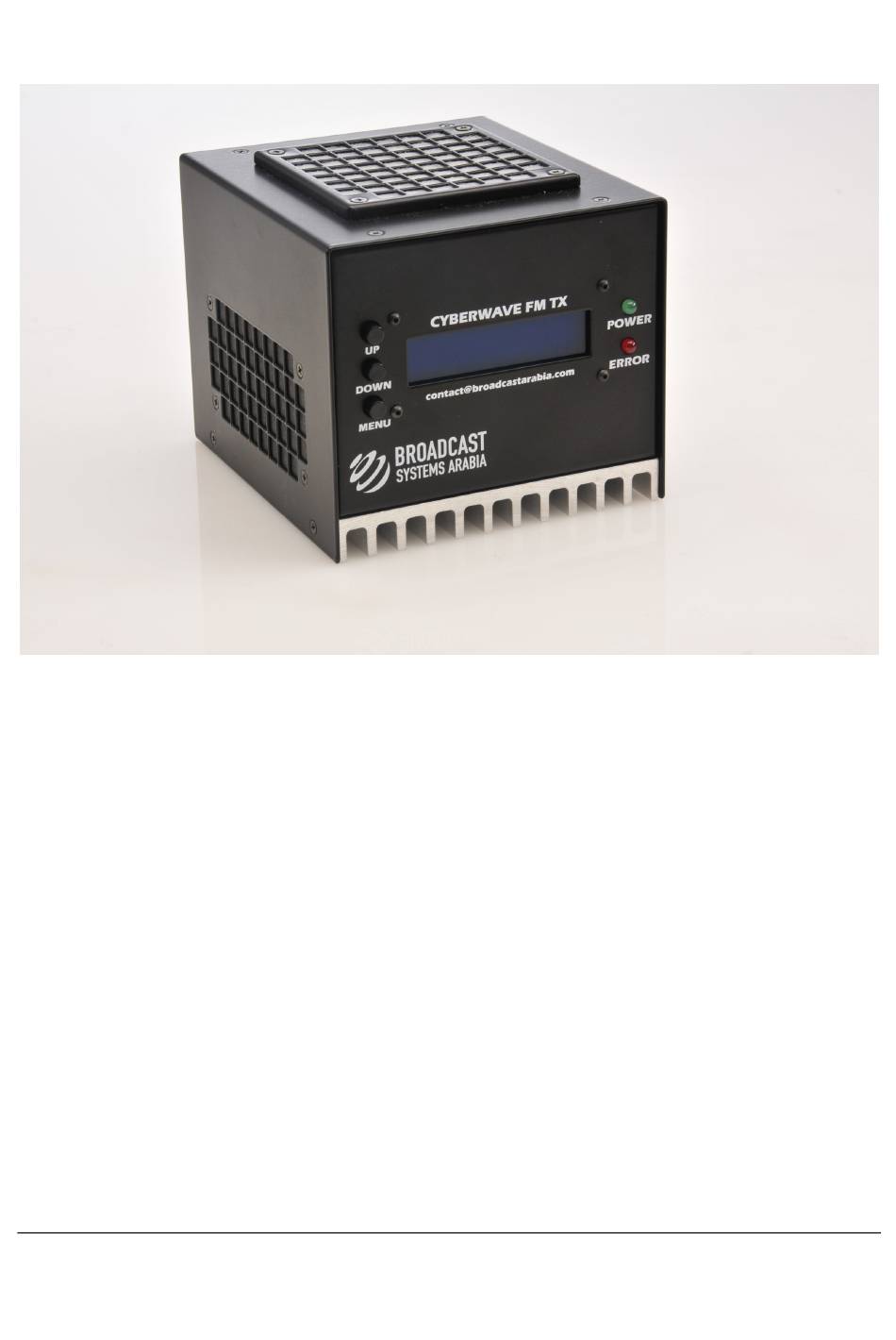

- Page 1 CyberWaveFM+ FM stereo radio transmitter with RDS Covers 15W, 25W and 50W models Manual Brought to you by Broadcast Systems Arabia...
- Page 2 Coaxial cable for the antenna for FM transmitter (black) Power cable for satellite receiver Spare power connector for optional solar power or battery NOT INCLUDED: Satellite dish and coaxial cable for satellite dish, TV receiver for SAT setup Brought to you by Broadcast Systems Arabia...
-
Page 3: Table Of Contents
Technical specifications ............10 What makes this FM transmitter series so great? ......10 General features: ................10 Technical specifications: ............... 10 Thank you for purchasing CyberWaveFM+ transmitter ....11 Revisions and errata .............. 12 Brought to you by Broadcast Systems Arabia... -
Page 4: Wiring Up, Typical Setup - Antenna System And Grounding
Audio is received from the satellite via SAT dish and receiver. Antenna tower and equipment building are protected with lightning protection. Simplest form of lightning protection is metal rods inserted/buried into the ground. Brought to you by Broadcast Systems Arabia... -
Page 5: Wiring Up, Typical Setup - The Equipment
Make sure your antenna is well away from any metal objects or electricity power lines. Touching power lines with antenna can kill you, be careful! Ensure your antenna tower is grounded securely as shown in the diagram. Brought to you by Broadcast Systems Arabia... - Page 6 - You should not sound louder than other stations, in fact unless you have an expensive high performance software or hardware sound processor you should sound slightly quieter than other stations so adjust your source audio level appropriately. Brought to you by Broadcast Systems Arabia...
-
Page 7: Wiring Up - Solar Powered Configuration
The diagram below shows the way the solar panels and 12V battery are connected to the transmitter. This provides full power requirements 24/7 via solar energy. Inline fuses are recommended on power lines and are usually supplied by the solar power equipment providers. Brought to you by Broadcast Systems Arabia... -
Page 8: Front And Back Panel Description
Chapter Front and back panel description Front and back panel explained Brought to you by Broadcast Systems Arabia... -
Page 9: Frequency And Power Adjustment
If you go downhill your speed will be greater with same amount of gas pedal. Likewise here your supply voltage can affect the actual output power slightly. <STEREO MODE> You can set your transmitter to MONO or STEREO here. Brought to you by Broadcast Systems Arabia... -
Page 10: Satellite Radio Receiver
- Once this is working turn off and disconnect the TV receiver and connect audio output to CyberWaveFM+ transmitter with the included RCA cables. Brought to you by Broadcast Systems Arabia... -
Page 11: Extending Range With Better Antenna System
Keep in mind that these antenna systems require a lot more space on the tower or mast. Also, such antenna systems tend to be quite expensive compared to the supplied solution. Observe a diagram with 4 dipole antennas below for reference: Brought to you by Broadcast Systems Arabia... -
Page 12: Maintenance And Servicing
Depending on situation this should be done 1x per year or more. Also inspect the condition of the fan at the same time. If it makes noises or visibly appears degraded consider replacing the fan. Brought to you by Broadcast Systems Arabia... -
Page 13: Technical Specifications
- Spurious/Harmonic rejection: Harmonics: >50dB, Spurious: -50dB - RF output ruggedness: SWR protection, TEMP protection, reduced power with LCD warning and RED LED - Quartz locked PLL frequency control, ultra stable & clean output - S/N ratio: >90 dB Brought to you by Broadcast Systems Arabia... -
Page 14: Thank You For Purchasing Cyberwavefm+ Transmitter
And if you encounter a problem please let us know so that we may improve our products, offer advice and suggestion. From all of us we wish you happy broadcasting! Your Broadcast Systems Arabia team contact@broadcastarabia.com Brought to you by Broadcast Systems Arabia... -
Page 15: Revisions And Errata
Revisions and errata V10 (Dec 2016): Release version of new manual format Please report any errors you see in this manual, you will be helping us and many other users out there. Thank you! Brought to you by Broadcast Systems Arabia... - Page 16 Brought to you by PCS Electronics, www.pcs-electronics.com...
