Summary of Contents for Compu Pool Products Infinity Series

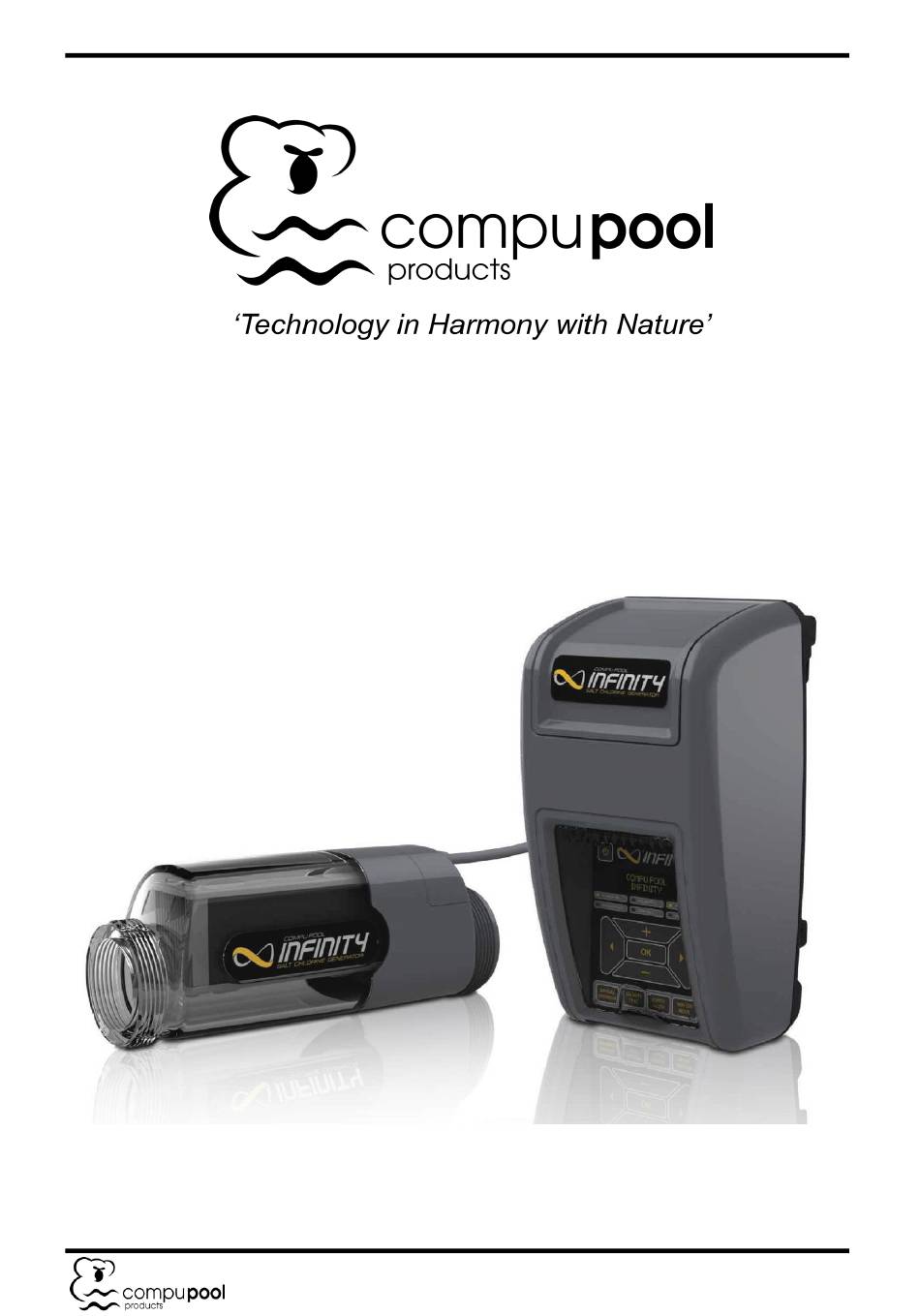

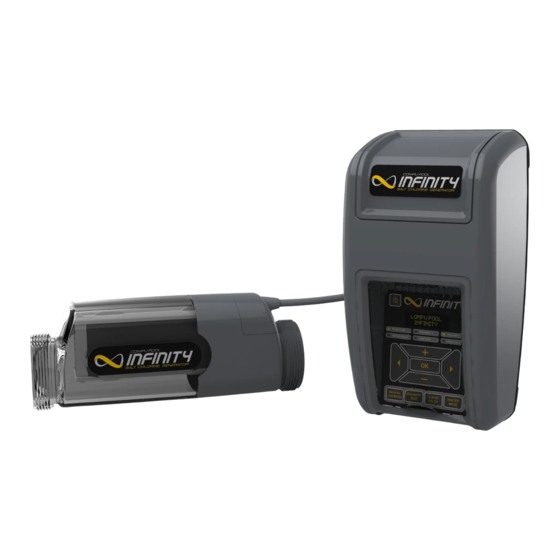

- Page 1 Infinity Series Saltwater Chlorine Generator Installation and Operation Manual Compu Pool Infinity Series Manual AU...
- Page 2 Compu Pool Infinity Series Manual AU...
-
Page 3: Table Of Contents
WATER CHEMISTRY ..................5 ADDING SALT TO POOL OR SPA ..............8 INSTALLATION ....................10 INSTALLATION CHECKLIST ................13 OPERATION ..................... 14 10.0 MAINTENANCE ....................18 11.0 TROUBLESHOOTING ..................20 12.0 WARRANTY ...................... 23 Compu Pool Infinity Series Manual AU... -
Page 4: Introduction
1.0 INTRODUCTION 1.1.1 Congratulations on your recent purchase of a Compu Pool Products Infinity Series Saltwater Chlorine Generator. Please take a moment to read through the entire manual before installing your new unit. Your generator must be installed and operated as specified. -
Page 5: The Chemistry Involved
4.0 THE CHEMISTRY INVOLVED 4.1.1 The Infinity Series chlorine generator by electrolysis creates chlorine to sanitize your pool using the salt molecules (NaCL) in your water. A small electric charge is applied across a set of titanium plates inside the Electrolytic Cell. This produces Sodium Hypochlorite (NaOCl). - Page 6 Take a water sample to a pool professional to ensure that the pool water is balanced correctly. Recommended List 5.4.1 Read and keep your manual in a safe place. 5.4.2 Increase chlorine production when temperature goes up. Compu Pool Infinity Series Manual AU...
- Page 7 Combined Chlorine. Weak chlorine which is combined with the contaminants in the water. 5.6.5 Free Chlorine. Active chlorine in the water with the potency to destroy contaminants. 5.6.6 Shock Treatment. The removal by means of oxidation of those materials that have chlorine demand. Compu Pool Infinity Series Manual AU...
-
Page 8: Adding Salt To Pool Or Spa
For pools it is best to empty the required salt into the shallow end of the pool and run the filter and pump simultaneously while the Infinity Series chlorine generator is off to circulate the water and dissolve the salt. Do not throw the salt bag into the pool or spa as chemicals and inks on the bag can interfere with the water balance. - Page 9 Where the column and row intersect within the chart is the number of kilograms of salt required to be added to your pool. Compu Pool Infinity Series Manual AU...
-
Page 10: Installation
1). The Cell Module has a 4.6 meter cable to connect to the Power Module. The Power Module must be installed 3 meters or more away from the pool edge. 7.1.2 Figure 1 - Installation Schematic. Compu Pool Infinity Series Manual AU... - Page 11 Cell Cable and out through the opposite outlet. 7.4.3 The orientation of the Cell in the plumbing is critical for the correct function of the unit. Please refer to Figure 2 for available plumbing configurations. Compu Pool Infinity Series Manual AU...
- Page 12 If this installation is required, the elbow must be installed below the dotted line shown in the illustration as the top half of the cell is where the water sensor is located. 7.4.4 Figure 2 - Cell Installation Options. Compu Pool Infinity Series Manual AU...
-
Page 13: Installation Checklist
Sufficient salt has previously been added and fully dissolved into pool water. 8.1.8 You have checked and confirmed that the pump switches ON and OFF with the Power Module. 8.1.9 You have checked all connections and joints for leaks. Compu Pool Infinity Series Manual AU... -
Page 14: Operation
Cell Housing which will state either i15, i25, i40 or i60. 9.2.3 Note: Each time the unit is powered on, the display will perform a 1 minute self-test, and then return to the Home Screen. Compu Pool Infinity Series Manual AU... - Page 15 WINTER MODE button is pressed. To deactivate winter mode, simply press the button again. Note: Reducing the chlorine output during periods when the pool is not in use will help maximize the life of the cell. Compu Pool Infinity Series Manual AU...
- Page 16 9.4.4 Low Salt. The Infinity Series will automatically let you know if the salinity concentration has fallen below acceptable levels. When illuminated for more than two hours, add more salt as needed. The amount required varies with pool size.
- Page 17 Decreasing the reversing time to 4 hours will reduce the life of the Electrolytic Cell, this should only be done when there are high calcium levels in the pool water and the Cell is calcifying quickly. Compu Pool Infinity Series Manual AU...
-
Page 18: Maintenance
10.3.4 Do not use any sharp or metallic objects to remove scale. Scraping or scratching the cell plate's edge or surface will allow chemical attack of the plate, cause premature failure of the cell and will void the warranty. Compu Pool Infinity Series Manual AU... - Page 19 10.3.10 Note: Do not leave the cleaning solution in the Cell for more than 15 minutes as this may cause damage to the Cell plates. Additionally excessive cleaning will reduce the lifespan of the cell. Compu Pool Infinity Series Manual AU...
-
Page 20: Troubleshooting
Verify input voltage with a voltmeter. If there is input power, the circuit breaker may have tripped. The Infinity Series is protected by a 5 amp circuit breaker located at the base of the Power Module. To reset the circuit breaker press the small yellow pin back in. Main power to the unit must be turned off prior to resetting the circuit breaker. - Page 21 Pool water is below 15° Celsius. No action is required, chlorine production is working correctly. Dying Cell. The Electrolytic Cell has come to the end of the "cell life" and is no longer producing chlorine at sufficient levels. Replace the Cell. Compu Pool Infinity Series Manual AU...
- Page 22 5.2. Contact a pool professional for assistance. Self cleaning reversing time Access the Maintenance Menu to reduce the cell to long. reversing time (see section 9.7.2). Note: Decreasing the reversing time will reduce the life of the Electrolytic Cell. Compu Pool Infinity Series Manual AU...
-
Page 23: Warranty
12.0 WARRANTY 12.1 Warranty Terms 12.1.1 Compu Pool Infinity Series chlorine generators carry the following three year warranty should fault occur due to faulty manufacturing or materials. 12.1.2 For residential use, Compu Pool warrants the original purchaser that the equipment... - Page 24 12.4.1 Please complete the information below at time of installation and retain in the event you need to file a warranty claim. Model Number Power Unit Serial Number Cell Serial Number Purchase Date Purchased From Installation Date Installer 2014 Infinity Owners Manual AU (Booklet) - V4.Docx Compu Pool Infinity Series Manual AU...
