Summary of Contents for Phoenix Mecano Okin Power Pack 1300

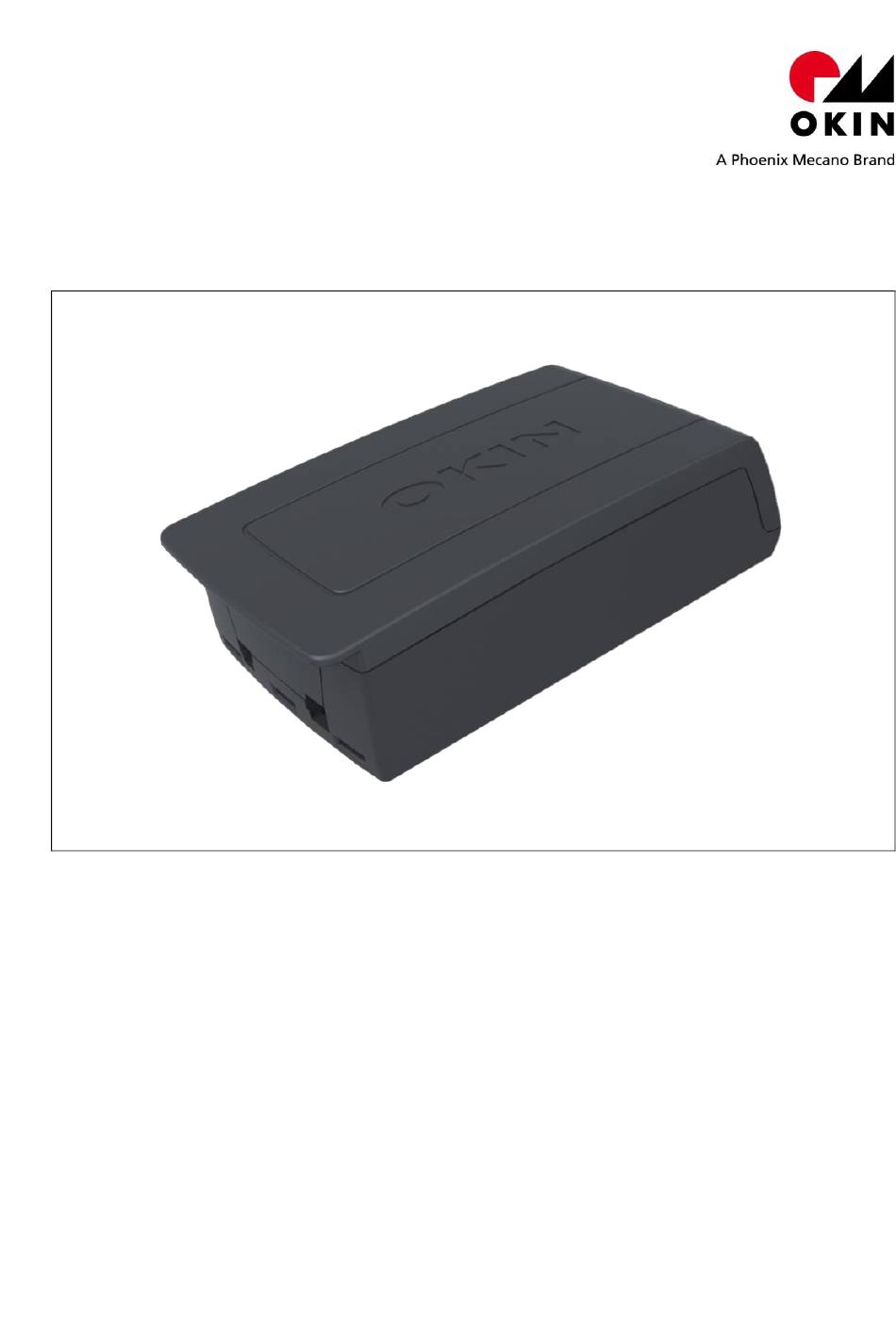

- Page 1 POWER PACK 1300 Installation Instruction (Original installation instruction, translation)
-
Page 2: Foreword
POWER PACK 1300 Foreword Disclaimer and exclusion of liability DewertOkin is not responsible for damage resulting from: failure to observe these instructions,, changes made to this product which have not been approved by DewertOkin, or the use of replacement parts which have not been approved or manufactured by DewertOkin. ... -
Page 3: Table Of Contents
POWER PACK 1300 Table of Contents Foreword Disclaimer and exclusion of liability Creation of a complete operating instruction manual for the entire end product Table of Contents General Conventions used Warranty Selection and qualification of personnel Safety notices Type label Description Dimensions POWER PACK 1300 and mounting bracket Connection options... - Page 4 POWER PACK 1300 76265(e) 4/18...
-
Page 5: General
POWER PACK 1300 General The manufacturer of the end product must create an operating manual for that end product. The contents and especially the safety notices found in this document can be used in the op- erating instructions for the end product. Read attentively and follow this information carefully before handling the rechargeable batter- ies. -
Page 6: Safety Notices
POWER PACK 1300 Safety notices CAUTION Leaking batteries present a health hazard! Leaking battery fluid can injure your skin or eyes. The fluid is harmful when touched or swallowed. If you come into contact with battery fluid, clean the affected area with water and con- tact a doctor. -
Page 7: Type Label
POWER PACK 1300 Type label Fig. 1: Type label BATTERY CHARGER (example) Fig. 2: Type label POWER PACK 1300 (example) 7/18 76264(e) -
Page 8: Description

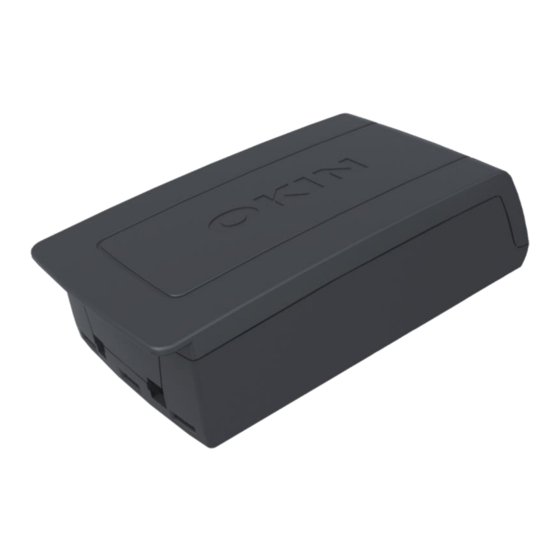

POWER PACK 1300 Description The POWER PACK 1300 serves for mains independent power supply of electro motorical adjustable applications. The PowerPack 1300 has the following special features: The POWER PACK 1300 is used as a power supply at power failure. ... - Page 9 POWER PACK 1300 Version Low charge warning Power supply POWER PACK 1300 WH-BK/ without remaining capacity warning 1300 mAh/DC 29,4V/<= 5A DC UN 3481, CB/IEC62133, UL 1642 POWER PACK 1300 WH-BK / with remaining capacity warning 1300 mAh/DC 29,4V/<= 5A DC UN 3481, CB/IEC62133, UL 1642 OKIN BATTERY CHARGER (100-240 VAC, 50/60 Hz , 350 mA/ 29,4 VDC)
-
Page 10: Dimensions Power Pack 1300 And Mounting Bracket
POWER PACK 1300 Dimensions POWER PACK 1300 and mounting bracket Fig. 05: Overview from the accessories POWER PACK 1300 Connection options As standard the POWER PACK 1300 is charged as needed with the OKIN BATTERY CHARGER. Optionally, instead of OKIN BATTERY CHARGER the PD12 POWER SUPPLY be used possible with special connection cable (71691) application. -
Page 11: Notes For Packaging And Transport
POWER PACK 1300 Notes for packaging and transport CAUTION Damaged POWER PACK 1300 A damaged POWER PACK 1300 must not be connected or taken into operation. Please contact your sales partner/supplier immediately! The POWER PACK 1300 is shipped ex works according to the applicable packaging regula- tions. -
Page 12: Storage
POWER PACK 1300 Storage CAUTION The battery should be stored so that the battery terminals cannot short circuit each other and so the terminals cannot be short circuited by any metal surroundings. NOTICE Rechargeable batteries must be charged at least six months after their production date or charged immediately upon delivery and then after six months of storage. -
Page 13: Technical Data For Storing The Batteries
POWER PACK 1300 Operation Type of check / Explanation Time interval action Recharging To maintain battery performance No longer than six months after date of manufacture. Recharging dur- Recharge during storage to maintain At least every six months. ing storage battery performance capability approx. -
Page 14: Charging The Battery
POWER PACK 1300 Charging the battery NOTICE Due to the chemical reactions the POWER PACK 1300 warms-up during charging. If the POWER PACK 1300 should become really hot, the protective circuit is defective. In this case remove the charging cable and the connection cable of the drive / control unit and check the unit (POWER PACK 1300 and OKIN BATTERY CHARGER) by an authorized technician or producer. -
Page 15: Notes For Operation
POWER PACK 1300 Notes for operation NOTICE If you not use the drive system for an extended period, disconnect the POWER PACK 1300 from the control unit/drive system as well as from the mains supply. It should then be re-connected if you plan to use the system. This will prevent the battery from losing its charge in certain applications. -
Page 16: 10. Troubleshooting
POWER PACK 1300 10. Troubleshooting This chapter describes troubleshooting methods for fixing problems. If you experience an error that is not listed in this table, please contact your supplier. Problem Possible cause Solution Handset or drive Handset or drive system defective Contact your supplier/dealer system without function... -
Page 17: Eu Declaration Of Conformity
EU Declaration of Conformity EG-Konformitätserklärung In compliance with Appendix IV of the EMC-Directive Nach Anhang IV der EMV-Richtlinie 2014/30/EU 2014/30/EU In compliance with Appendix IV of the LVD-Directive Nach Anhang IV der EU-Niederspannungsrichtlinie 2014/35/EU 2014/35/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS (inkl. - Page 18 DewertOkin GmbH Weststraße 1 32278 Kirchlengern Tel: +49 (0)5223/979-0 Fax: +49 (0)5223/75182 http://www.dewertokin.de Info@dewertokin.de ID-Nr.: 76265...
