Bridge Mate Mini RadaScan Transponder Guide

Mounting

The Bridge Mate Mini RadaScan transponder is supplied with
a mounting bracket, which should always be fitted so that the
transponder's longest side is vertical, with the carrying handle at the
top.
To Mount the Transponder:
1. Hook the foot of the transponder underneath the knob on the
bottom of the bracket.
2. Rotate the transponder backwards until it is held in place against
the bracket by its magnet.

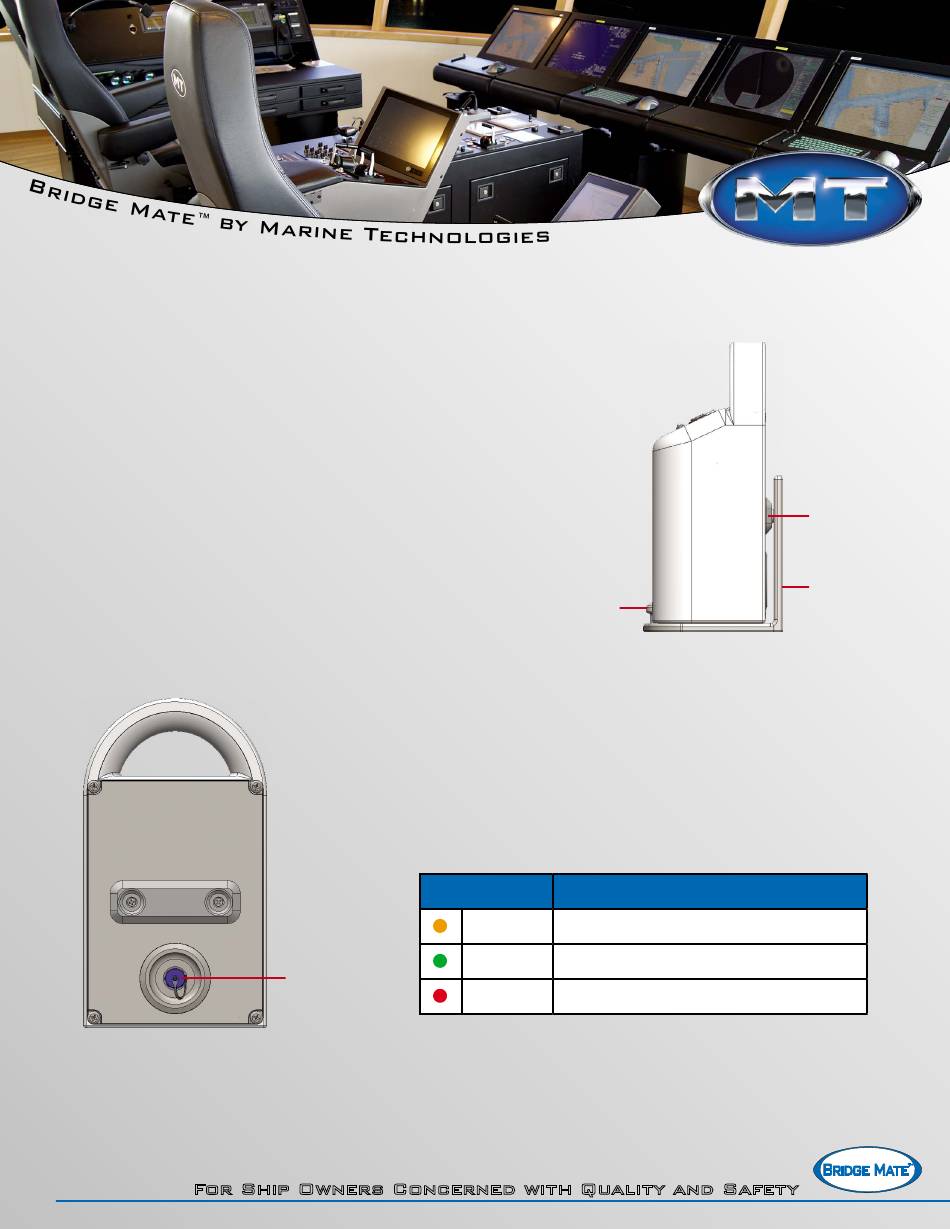

Mini Transponder – Rear
For Ship Owners Concerned with Quality and Safety

Charging

The unit must be fully charged before use. A full charge will take
approximately 3 hours.
To Charge the Transponder:
1. Switch the transponder OFF.
2. Unscrew the blue cap on the rear of the unit.
Charge Light
Amber
Green
Charging
Socket
Red
3. Connect 24 V DC, ideally using the supplied mains charger. (The
charge light on the front of the unit will turn amber.)
4. When the charge light turns green, disconnect the charger.
5. Replace the blue cap on the rear of the unit.
Knob
Mini Transponder – Side
Meaning
Charging
Fully charged – disconnect charger
Fault – return to Marine Technologies
Magnet
Bracket
MT-SAL-0048 v2.0
