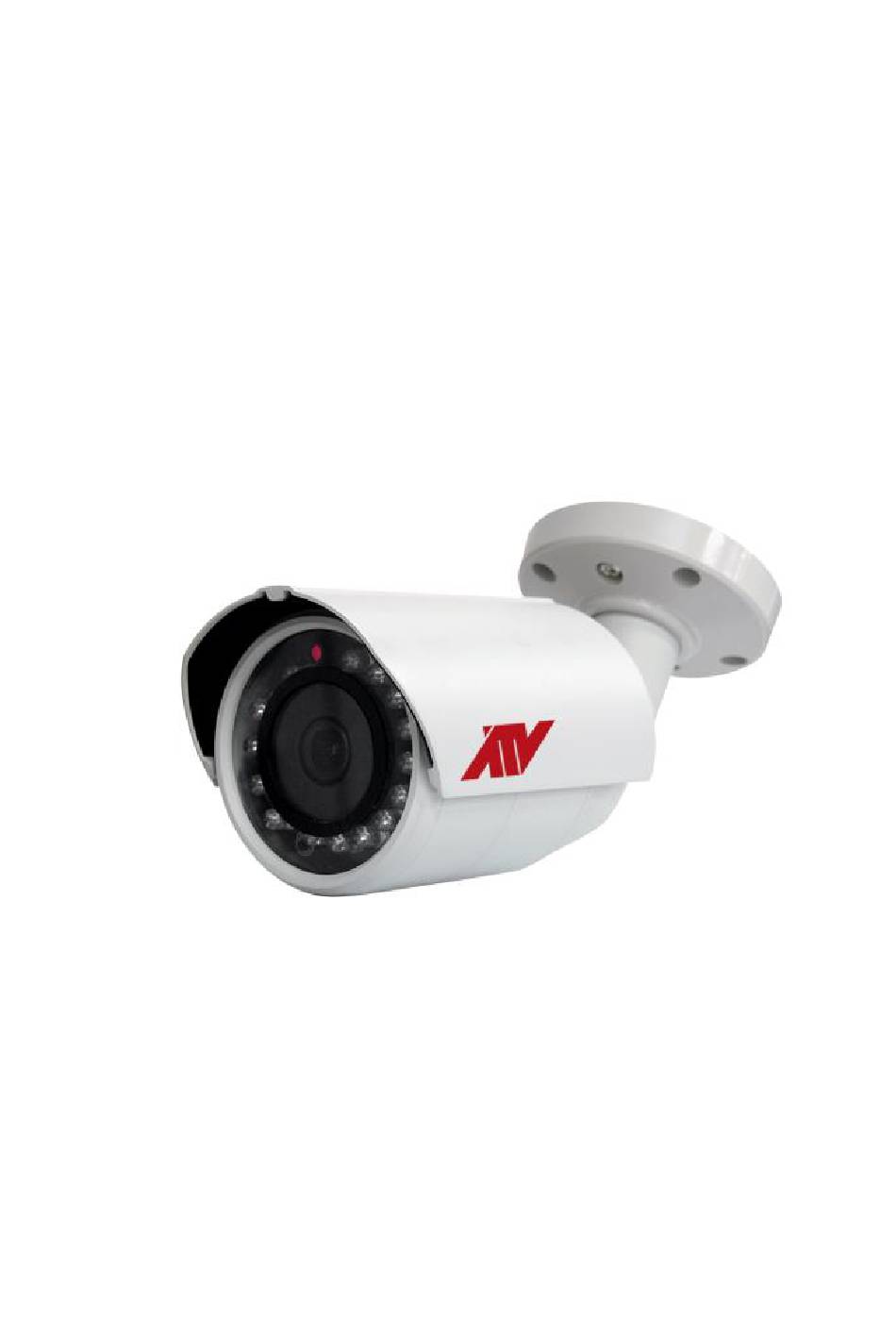

- Page 1 INSTRUCTION MANUAL FULL HD BULLET CAMERA Please read this manual thoroughly before use and keep it handy for future reference.
- Page 3 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions.\ 3. Heed all warnings. 4. Follow all instructions. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 5: Table Of Contents
CONTENTS • INTRODUCTION • CONNECTIONS & VIDEO OUT CHECK (CVBS) • LENS ADJUSTMENT • CONTENTS OF PACKAGE • BASE INSTALLATION • STRUCTURE OF THE SETUP MENU • DC AUTO IRIS LENS • SPECIFICATIONS • EXTERNAL DIMENSION... -
Page 6: Introduction
INTRODUCTION The 1/2.9” 2.1M Full HD CMOS camera, especially for closed circuit television CCTV and security surveillance application. Features: • High performance SONY 1/2.9” 2.1M EXMOR CMOS • 1.0 lux(Color), 0 lux(BW, IR LED ON) • Auto electronic shutter [1/60(1/50) ~ 1/50,000] and manual electronic shutter modes •... -
Page 7: Connections & Video Out Check(Cvbs)
CONNECTIONS & VIDEO OUT CHECK(CVBS) ① Power : 12V DC input, Use Certified/Listed Class 2 power source only. * If using DC 12V power adaptor, use power supply capable of supplying 7 Watts. ② Video : BNC connector used to connect the camera to a DVR, etc. ③... -
Page 8: Base Installation
BASE INSTALLATION 3X20mm Tapping Screws Tension adjustment screw Position camera for best field of view then tighten camera/mount Tension adjustment screws (x2) Caution “Adjusting the position of the camera after installation could potentially damage the cable”... -
Page 9: Structure Of The Setup Menu
STRUCTURE OF THE SETUP MENU <SETUP> LENS EXPOSURE BACKLIGHT WHITE BAL <LENS> <EXPOSURE> DAY&NIGHT IMAGE SHUTTER FUNCTION MANUAL SYSTEM SENS-UP BRIGHTNESS EXIT D-WDR DEFOG RETURN <BACKLIGHT> <WHITE <IMAGE> <DAY&NIGHT BAL> > SHARPNESS AUTO AWC->SET HSBLC D-EFFECT COLOR INDOOR RETURN B&W OUTDOOR MANUAL <FUNCTION>... - Page 10 LENS The EXPOSURE menu is used to set the automatic light control method for the camera. It provides the ability to adjust the SHUTTER speed. AGC SENS-UP, BRIGHTNESS, D-WDR, and DEFOG functions of the camera. Select the DC mode. ▶INDOOR, OUTDOOR 1) DC Select the DC iris speed ▶...
- Page 11 <EXPOSURE> Mode MAIN MENU SENS-UP EXPOSURE LENS SENS-UP DC EXPOSURE SHUTTER RETURN RET 14 BACKLIGHT WHITE BAL SENS-UP D-WDR AUTO 40 DAY&NIGHT BRIGHTNESS AUTO 5 IMAGE D-WDR LEVEL ON FUNCTION DEFOG RETURN RET SYSTEM RETURN RET...
- Page 12 WHITE BALANCE The screen color can be adjusted by using the Auto White Balance function. It compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. 1) ATW Automatically adjust color temperature.
- Page 13 <DAY & NIGHT> Mode MAIN MENU D&N AUTO LENS DC 205 EXPOSURE BURST DN (CDS) 3 BACKLIGHT IR SMART DN (DELAY) ON WHITE BAL 165 RETURN ND (CDS) RET DAY&NIGHT 3 AUTO ND (DELAY) IMAGE RETURN RET...
- Page 14 Select the Motion area ▶ AREA1 - AREA4 SELECT DISPLAY Adjust the Motion area window position & size Adjust the Motion sensitivity level ▶ 0 - 100 SENSITIVITY COLOR Select the motion area color ▶WHITE - Red, Green, Blue TRANS Select the motion area transparency.
- Page 15 PRIVACY SELECT AREA1 DISPLAY COLOR COLOR WHITE TRANS. 1.00 DEFAULT RETURN RET DEFECT DET LIVE DPC 16 LIVE DPC AGC LEVEL ON 100 WHITE DPC LEVEL ON BLACK DPC RETURN RET RETURN RET WHITE DPC CLOSE THE IRIS ...
- Page 16 <SYSTEM> Mode MAIN MENU CAMERA TITLE SYSTEM LENS 0 1 2 3 4 5 6 7 8 9 DC EXPOSURE CAM TITLE A B C D E F G H I J K BACKLIGHT MONITOR LCD L M N O P Q R S T U V W X Y Z ...
-
Page 17: Dc Auto Iris Lens
EXIT The EXIT menu provides the ability to adjust the RESET, SAVE & END and NOT SAVE functions of the camera. 1) EXIT RESET Factory initialization of camera settings SAVE & END Save and exit menu NOT SAVE Exiting the menu without saving DC AUTO IRIS LENS 1/2.9”... -
Page 18: Specifications
EXTERNAL DIMENSION... -
Page 19: External Dimension
SPECIFICATIONS MODEL 2M HD Bullet CAMERA Power Source DC12V ± 10% Power Power Consumption MAX 6.6 Watts (500mA) Image sensor 1/2.9" 2.1M Sony CMOS Total Pixels 2000(H) x 1121(V) Active Pixels 1920(H) x 1080(V) Progressive Scanning system Sync. System Internal Video Frame Rate 1920x1080p@25 fps ;... - Page 20 FULL HD BULLET CAMERA 5030xxxxA...
