#16686
Oval Gazebo
Second Tier
-BEFORE YOU BEGIN-
First...
Read these instructions thoroughly before you begin assembly.
Assembly is easiest if you follow the steps in the order shown.
In a drawing, a dotted line represents a part hidden from view
(like a part under a panel).
Lumber is graded from only one side. Check the part for the
most attractive face and make sure to face it to the outside.
Check all parts
Compare the parts you have to the list, If a part is missing, circle
the part in question and call our toll-free # at (800) 437-0784 .
Always wear OSHA-APPROVED safety
glasses throughout the assembly process
Tools Required
Hammer
Phillips Screwdriver
Level
Pencil
Tape Measure
Staple Gun with 1/4" or 3/8" staples
Optional Tools
Electric Drill with #2 phillips Tip
Square
Nail Pouch
1/8" Drill Bit for Pre-drilling

Parts List

Qty. Description
10' Two Tier Parts
8 pcs. Pre-assembled Wall Panels
2 pcs. Pre-assembled Long Wall Panels
2 pcs. Ridge Block 8-Sided
1 pc. Metal Roof Cap from Gazebo
8 pcs. Triangular Roof Panels
2 pcs. Square Roof Panels
6 pcs. Plywood Gusset Brackets
4 pcs. 2 left/2 right Plywood Gusset Brackets
12 pcs. Rafters
2 pcs. Center Rafter Support
3 pcs. Rafter Support Spacers
8 pcs. Fascia
2 pcs. Fascia
10 pcs. Fascia Trim
2 pcs. Roof Finial Block
2 pcs. Roof Finials from Gazebo
1 pc. 13" Roll of screen
Hardware #8 - 3" Screw, #8 - 1-5/8" Screw, 6d-2" Nail,
4d-1-1/2" Finish Nail, 3/4" Roofing Nail, 1" Roofing Nail
12' Two Tier Parts
10 pcs. Pre-assembled Wall Panels
2 pcs. Pre-assembled Long Wall Panels
2 pcs. Hollow Ridge Block 10-Sided
2 pcs. Ridge Cap 10-Sided
1 pc. Metal Roof Cap from Gazebo
10 pcs. Triangular Roof Panels
2 pcs. Square Roof Panels
2 pcs. Plywood Gusset Brackets
4 pcs. 2 left/2 right Plywood Gusset Brackets
14 pcs. Rafters
2 pcs. Center Rafter Support
3 pcs. Rafter Support Spacers
10 pcs. Fascia
2 pcs. Fascia
12 pcs. Fascia Trim
2 pcs. Roof Finial Block
2 pcs. Roof Finials from Gazebo
1 pc. 13" Roll of screen
Hardware #8 - 3" Screw, #8 - 1-5/8" Screw, 6d-2" Nail,
4d-1-1/2" Finish Nail, 3/4" Roofing Nail, 1" Roofing Nail
14' Two Tier Parts
12 pcs. Pre-assembled Wall Panels
2 pcs. Pre-assembled Long Wall Panels
2 pc. Ridge Cap 12-Sided
2 pc. Hollow Ridge Block 12-Sided
1 pc. Metal Roof Cap from Gazebo
12 pcs. Triangular Roof Panels
2 pcs. Square Roof Panels
2 pcs. Plywood Gusset Brackets
4 pcs. 2 left/2 right Plywood Gusset Brackets
16 pcs. Rafters
2 pcs. Center Rafter Support
3 pcs. Rafter Support Spacers
12 pcs. Fascia
2 pcs. Fascia
14 pcs. Fascia Trim
2 pcs. Roof Finial Block
2 pcs. Roof Finials from Gazebo
1 pc. 13" Roll of screen
Hardware #8 - 3" Screw, #8 - 1-5/8" Screw, 6d-2" Nail,
4d-1-1/2" Finish Nail, 3/4" Roofing Nail, 1" Roofing Nail

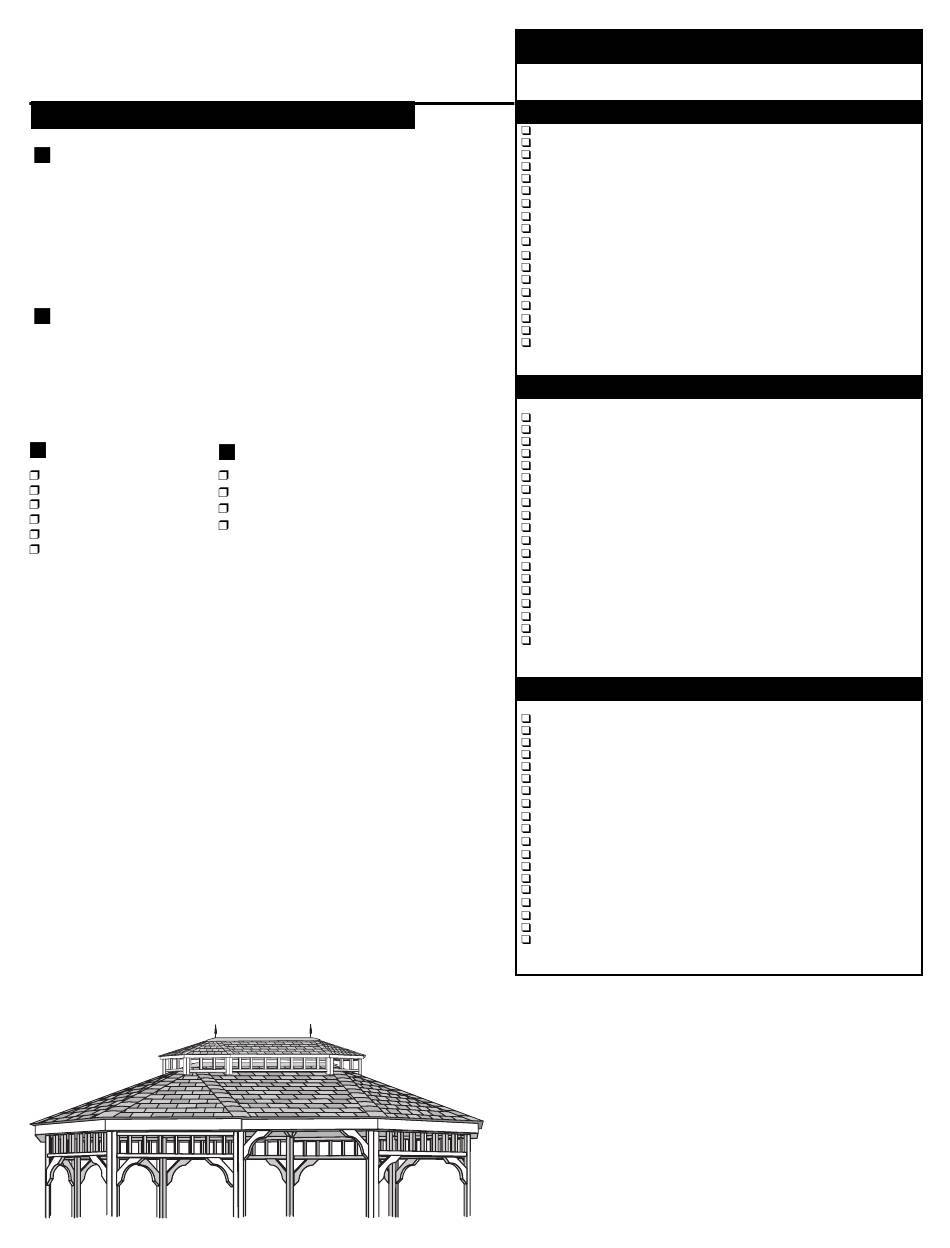

10' Oval Second Tier - 10 sided Gazebo shown with Second Tier
12' Oval Second Tier - 12 sided (not shown)
14' Oval Second Tier- 14 sided (not shown)
2-26-03
Size
2 x 4 x 27"
2 x 4 x 43-1/4" angled
1/2" x 3-1/2" x 6"
2-1/2x21-1/16"
2-1/2x44-3/4"
3/4" x 1-1/2" x 2-3/4"
1-1/2" x 1-1/2" x 3-1/2"
2 x 4 x 33-1/8"
2 x 4 x 43-1/16" angled
2 x 4 x 2-1/4"
2-1/2 x 20-9/16"
2-1/2 x 44-3/4"
3/4" x 1-1/2" x 2-3/4"
1-1/2" x 2-1/2" x 3-1/2"
2 x 4 x 38-5/8"
2 x 4 x 42-13/16" angled
2 x 4 x 4-1/4"
2-1/2 x 20-3/16"
2-1/2 x 44-3/4"
3/4" x 1-1/2" x 2-3/4"
1-1/2" x 2-1/2" x 3-1/2"
