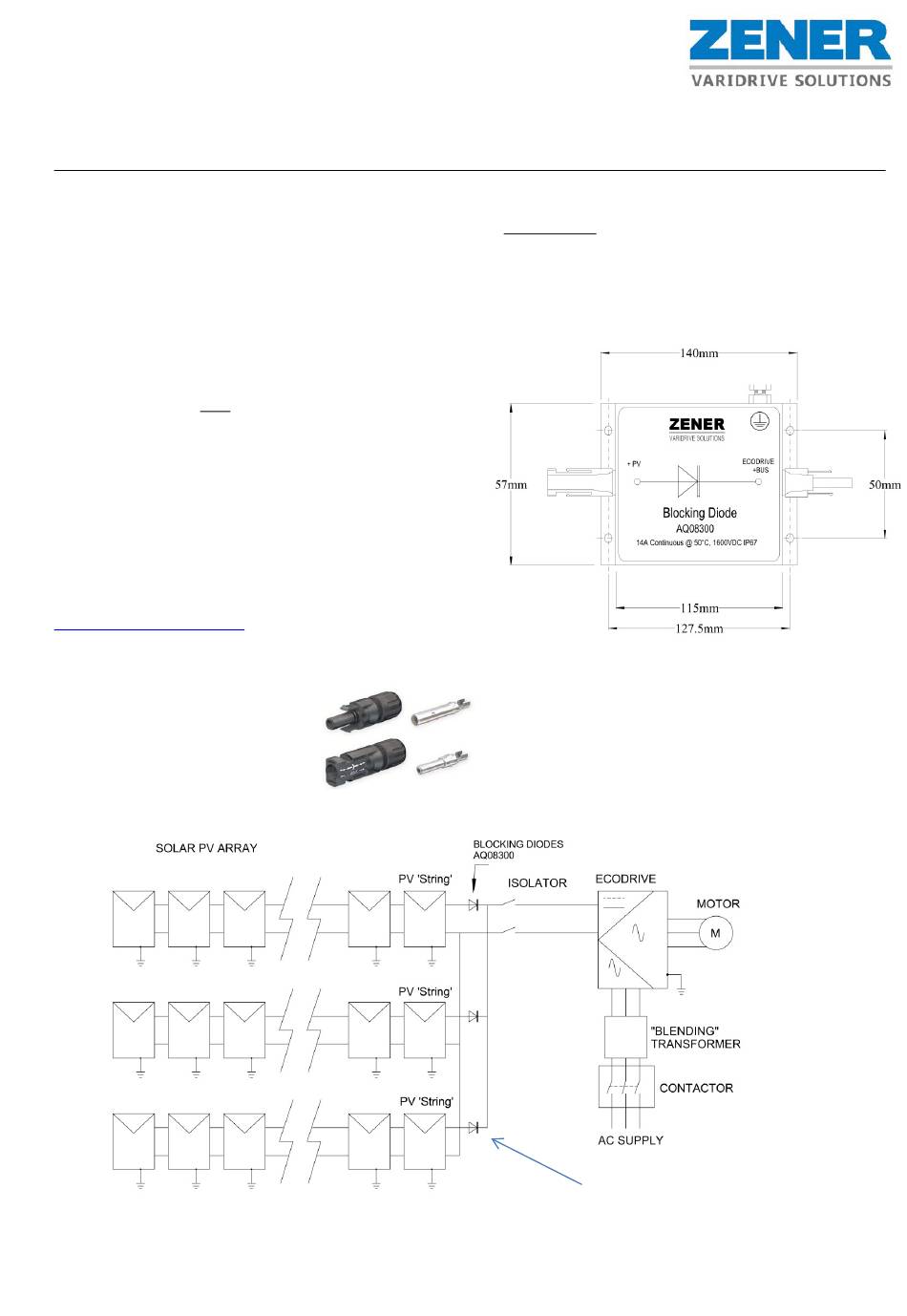

ECODRIVE 8000
Instruction Sheet: Blocking Diodes
Part Number:
AQ08300
Description:
ECODRIVE Blocking Diodes
Compatibility:
ECODRIVE 8000
Kit Includes:
1x Blocking Diode Module
1x Solar MC4 in-line Male connector
1x Solar MC4 in-line Female connector
Summary:
A ZENER blocking diode must be installed on each string when
operating the ZENER ECODRIVE with an auxiliary AC supply.
These instructions must be read in conjunction with the
ECODRIVE Supplement manual.
Blocking diodes may also be installed on a solar only installation
to provide improved array performance.
It is a requirement that all connections must be made using the
same brand of connectors. This kit includes in-line connectors.
More information on the connectors used and 'how to
terminate' can be found on the Zener website:
www.zener.com.au/support-8E
Document: IM00156 Rev A
Specification:
Blocking Diode:
Rating:
Enclosure:
Dimensions:
Connectors:
Type:
Rating:
In line connector: PV-KBT4/6I-UR & PV-KST4/6I-UR
Printed: 15-Mar-18
1600VDC, 14Amps Continuous at 50°C
IP67 (connectors mated)
Multi-connect MC4 6mm
1000VDC,
22.5Amp (2.5mm cable)
30Amp (4/6mm cable)
ZENER Blocking Diode Module
AQ08300 installed on each string.
Advertisement
Table of Contents
Summary of Contents for Zener ECODRIVE 8000 AQ08300
- Page 1 1x Solar MC4 in-line Female connector Dimensions: Summary: A ZENER blocking diode must be installed on each string when operating the ZENER ECODRIVE with an auxiliary AC supply. These instructions must be read in conjunction with the ECODRIVE Supplement manual.
- Page 2 Failure to install blocking diodes when required may result in equipment damage and will void any equipment warranty Diagram: Blocking diode wiring for a 2x string solar array Installation Notes: • Refer to the ECODRIVE supplement manual IM00130 for details on installing & wiring the ECODRIVE 8000 and auxiliary equipment.
