Miweba HY02TP User Manual

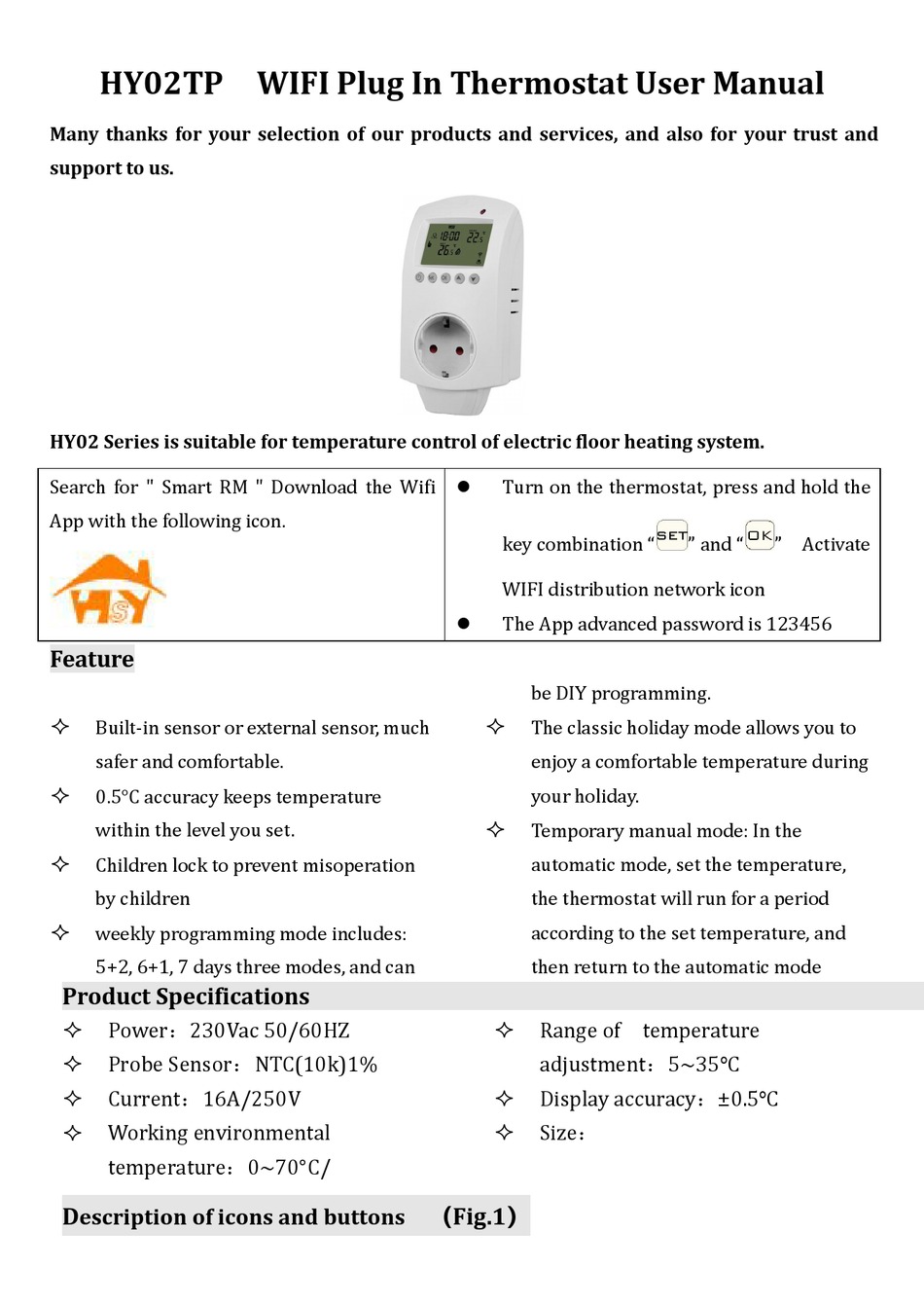

HY02TP WIFI Plug In Thermostat User Manual
Many thanks for your selection of our products and services, and also for your trust and
support to us.
HY02 Series is suitable for temperature control of electric floor heating system.
Search for " Smart RM " Download the Wifi
App with the following icon.
Feature
Built-in sensor or external sensor, much
safer and comfortable.

0.5°C accuracy keeps temperature
within the level you set.

Children lock to prevent misoperation
by children

weekly programming mode includes:
5+2, 6+1, 7 days three modes, and can

Power：230Vac 50/60HZ
Product Specifications
Probe Sensor：NTC(10k)1%

Current：16A/250V

Working environmental

temperature：0~70°C/

D
escription of icons and buttons
Turn on the thermostat, press and hold the

key combination "
WIFI distribution network icon
The App advanced password is 123456

be DIY programming.
The classic holiday mode allows you to
enjoy a comfortable temperature during

your holiday.
Temporary manual mode: In the
automatic mode, set the temperature,

the thermostat will run for a period
according to the set temperature, and
then return to the automatic mode
Range of temperature
adjustment：5~35℃

Display accuracy：±0.5℃
Size：


（Fig.1）
" and " " Activate
