Summary of Contents for BAZZ WFCAMOUT

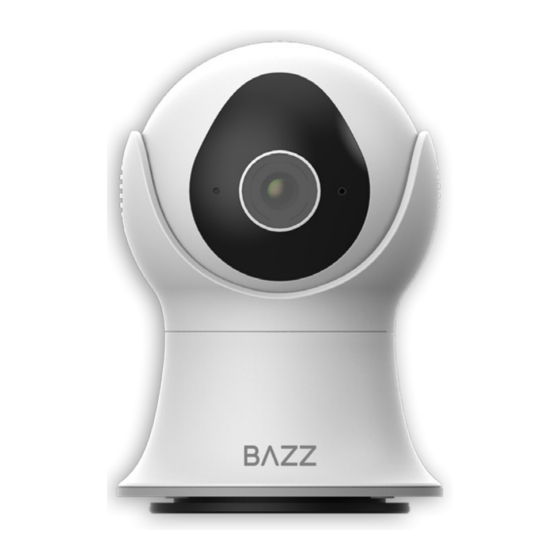

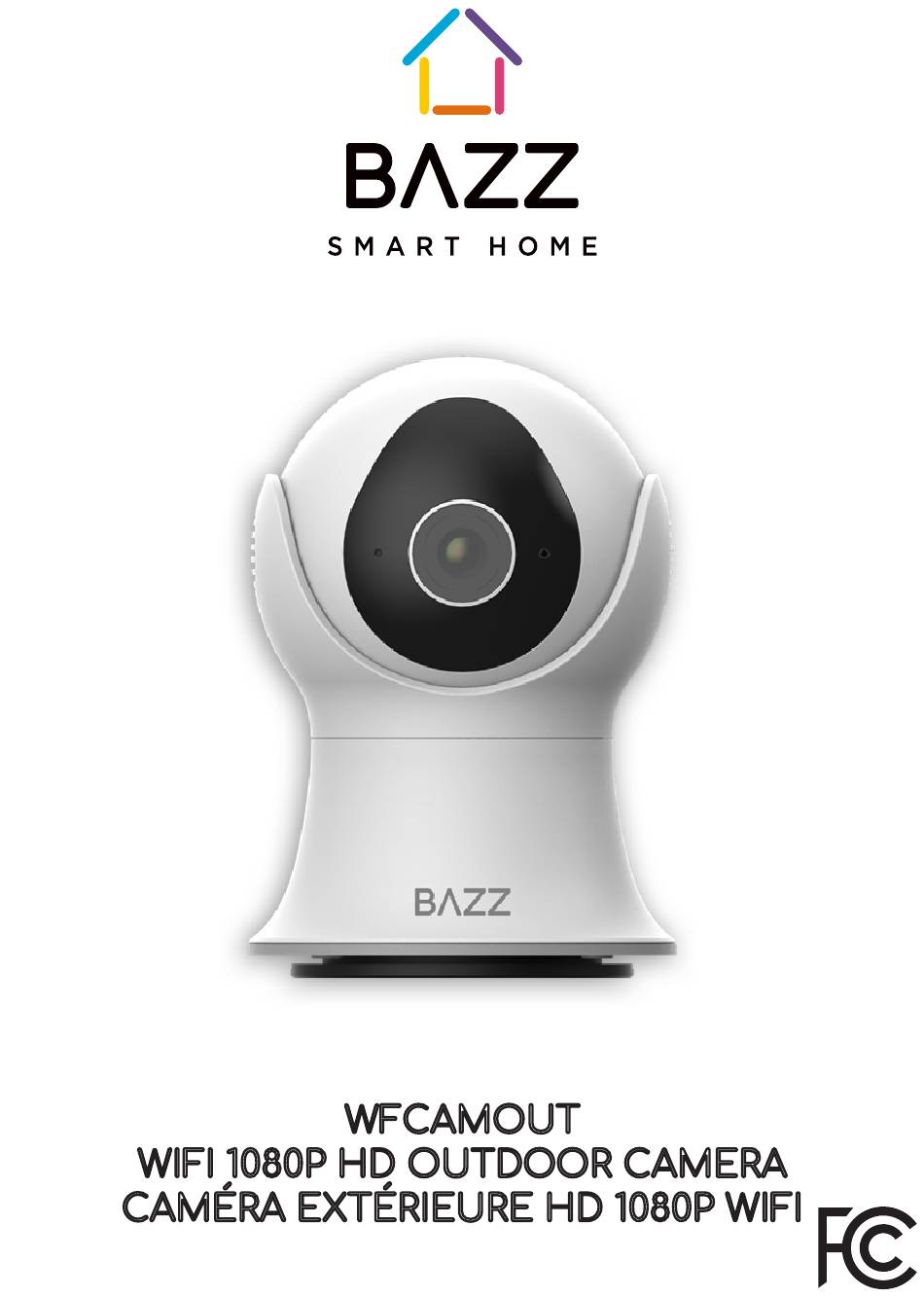

- Page 1 WFCAMOUT WIFI 1080P HD OUTDOOR CAMERA CAMÉRA EXTÉRIEURE HD 1080P WIFI INSTRUCTIONS...
-
Page 2: Warning Attention
WARNING ATTENTION · Please read all informations carefully before installation. · For any questions or troubleshooting please visit: www.bazzsmarthome.com or www.bazzsmarthome.ca. · Veuillez lire attentivement toutes les informations avant l'installation. · Pour toutes questions ou dépannage, visitez le site www.bazzsmarthome.com ou www.bazzsmarthome.ca. - Page 3 REQUIREMENTS PRÉREQUIS · Internet connection with a WiFi network. · Strong WiFi signal. · 2.4 GHz wireless frequency. · Password protected WiFi network for security reason (password must contain only letters and numbers and should not be too long). · Router with sufficient connections. ·...
- Page 4 INCLUDED INCLUS Camera Power Adapter Camera Bracket Caméra Adaptateur Support de caméra Instructions Manual Screws Wall Anchors Manuel Ancrages muraux d’instructions Small Screws L Shape Bracket Petites vis Support en L Épingle...
- Page 5 PRODUCT CONFIGURATION CONFIGURATION DU PRODUIT Reset button Indicator Light Bouton de Microphone Voyant lumineux réinitialisation 4" Speaker 105 mm Haut-parleur 3" 75 mm 59" 1500 mm Power Adapter Adaptateur...
- Page 6 SPECIFICATIONS CARACTÉRISTIQUES Lens 3.6 mm F2.0 Lentille Pixel 2.0 megapixel Adjustable Angle Tilt: -10°~75°; Pan: 0~355° Angle ajustable Power DC12V, 1A Puissance Consumption 5.5W max. Consommation Wireless Encryption WPA-PSK / WPA2-PSK Cryptage sans fil Wireless Frequency 2.4GHz Fréquence sans fil WiFi Standard IEEE802.11 b/g/n Norme WiFi...
- Page 7 LED INDICATOR LIGHT VOYANT LUMINEUX DEL DEVICE STATUS LED INDICATOR LIGHT STATE STATUT DE ÉTAT DU VOYANT LUMINEUX DEL L' A PPAREIL Pairing Mode (Waiting for WiFi Red LED Indicator light flashes quickly. connection) Le voyant lumineux DEL rouge clignote Mode jumelage rapidement.
-
Page 8: Installation
INSTALLATION Option 1: Ceiling 1. Take the metallic components apart from the camera bracket. 2. Fix the camera bracket on the ceiling with screws. 3. Rotate the camera to snap into the camera bracket. Option 1: Plafond 1. Retirer les composants métalliques du support de caméra. 2. - Page 9 INSTALLATION Option 2: Wall Mount 1. Fix the L shape bracket on the camera bracket with the small screws and fix on the wall with screws. 2. Rotate the camera to snap into the camera bracket. Option 2: Montage mural 1.
- Page 10 APP VIDEO BROWSING DETAILS DÉTAILS DE NAVIGATION 1. Quality Switch: toggle 1. Bouton de qualité de between HD (high definition) l’image: Choisir entre HD and SD (standard definition). (haute définition) et SD (définition standard). 2. Audio Switch: enable camera audio so you can 2.
- Page 11 DOWNLOAD FREE APP TÉLÉCHARGER L’APPLICATION GRATUITE Don’t have the APP? Download the APP. Search for "Bazz Smart Home" to download in APP Store or Google Play. The free app "Bazz Smart Home" is compatible with mobile devices IOS 8.0 and above and Android 4.0 and above.
- Page 12 REGISTER AND LOGIN S'INSCRIRE ET SE CONNECTER Open "Bazz Smart Home" app, select "Register" to create an account. Select the right country code, enter your email or mobile number and then set password. You can also register through other communication apps which are on the bottom of the page, such as Facebook.
- Page 13 QUICKSTAR - PAIRING 1- Preparation: 1. Confirm the device is powered on. 2. Confirm the device, smartphone and router are as close to each other as possible. 3. Confirm the phone is connected to the WiFi router and to the internet. 2- Pairing steps: 1.
- Page 14 INITIALISATION - JUMELAGE 1- Préparation: 1. Vérifier que l’appareil est allumé. 2. Vérifier que l’appareil, le téléphone intelligent et le routeur sont aussi proches que possible l’un de l’autre. 3. Vérifier que le téléphone est connecté au routeur WiFi et à Internet. 2- Étapes de jumelage: 1.
- Page 15 GO INTO SETTINGS FOR MORE OPTIONS ALLER DANS RÉGLAGES POUR PLUS D'OPTIONS Examples: 1. Customize Scenes: scenes setting. 2. Share Device: allow others to control the device by sharing device. 3. Push notification. Exemples: 1. Personnaliser les scènes: réglage des scènes. 2.
-
Page 16: Warranty Garantie
état du vice allégué. Il doit également retourner à ses frais le produit en question à BAZZ. Après inspection du produit, si la garantie s’applique, BAZZ réparera ou... -
Page 17: Fcc Note
FCC NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1- this device may not cause harmful interference, 2- this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications or change to this equipment. - Page 18 NOTE FCC Cet appareil est conforme à la section 15 de la réglementation FCC. L’opération est soumise aux deux conditions suivantes: 1- cet appareil ne doit pas causer d’interférences nuisibles, 2- cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un fonctionnement indésirable.
- Page 19 ALSO AVAILABLE AUSSI DISPONIBLE CAMFXWFW1 WFCAM360 ALARMWFW1 HD Directional Camera HD Motorized Camera Siren Alarm Caméra Orientable HD Caméra motorisée HD Sirène d’alarme IRREMOTEWFBK DOORWFW1 FLDWFW1 Door Contact Sensor IR Remote Controller Converter Water Leak Sensor Convertisseur de Détecteur de contact Détecteur de fuite d’eau de porte télécommande IR...
- Page 20 SLMR4TNWFB SLMR4TNWFBK SLMR4RGBWWFW CON6RGBTNWWF SLMR4TNWFW 4" LED Recessed Fixture 6" LED Conversion Kit 4" LED Recessed Fixture Encastré DEL 4" Kit de conversion DEL 6" Encastré DEL 4" SLDSK6TNWWF BR30RGBTNWWF U183MRGBWWF SLDSK6RGBTNWWF WFA19RGB1 LED Light Strip 10 ft 6" LED Disk Recessed Fixture BR30/A19 LED Bulb Ruban lumineux DEL 3 m Encastré...
