TDCom IriTrack Quick Start Quide

The machines have to be presented at the technical checks, with the bracket, cablings and

1 - KIT COMPOSITION

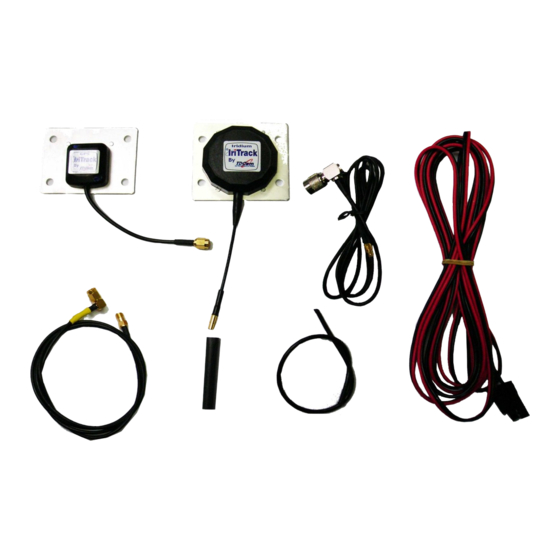

Mounting pack composed by the following elements :

1 - Rectangular GPS antenna on sheet, with wire of 10cm,

2 - GPS antenna wire 1 metre,

3 - Octogonal Iridium antenna on sheet, with wire of 10cm,

4 - Iridium antenna wire 1 metre,

Technical charateristics of the set GPS + Iritrack :

- Duo overall dimensions without bracket : 175 mmX125 mmX48 mm (without plugs and cables)

- Weight GPS + Iritrack : 1,2 Kg

- Environment : operating from - 30° C à + 55°C and storage from -40°C to +65°C

- Consuption under 12V for the Iritrack, stand by 300Ma, during transmission-reception 1100mA

Reminder : The Touratech 6 points bracket, the GPS and its accessories must be ordered from ERTF,

DUO MOUNTING ADVISES FOR BIKE

IMPORTANT :

antennas mounted, ready to receive the Iritrack.

competition@ertf.com

5 - Power cable of 3 metres

with fuse holder of 3A,

6 - Thermo-retractable girdles and wire protections.

Table of Contents

Do you have a question about the IriTrack and is the answer not in the manual?

Page 1 - Environment : operating from - 30° C à + 55°C and storage from -40°C to +65°C - Consuption under 12V for the Iritrack, stand by 300Ma, during transmission-reception 1100mA Reminder : The Touratech 6 points bracket, the GPS and its accessories must be ordered from ERTF,...
Page 2 The bracket has to be fixed in front of the pilote, in It is indispensable to have enough space to pass the fingers order to have the Iritrack buttons visible and accessible to be able to connect the wires : around 10cm.
Page 3 Put the protection supplied with girdles around every towards the bracket. cable. Département Rallye Raid 3, avenue des Erables - 94440 Santeny - France Tel : + 33 (0)1 45 10 37 54 - Fax : +33 (0)1 43 86 19 17 Email : rallye@tdcom.fr...
