Summary of Contents for Ledgerware 6 GPU Open Air Case

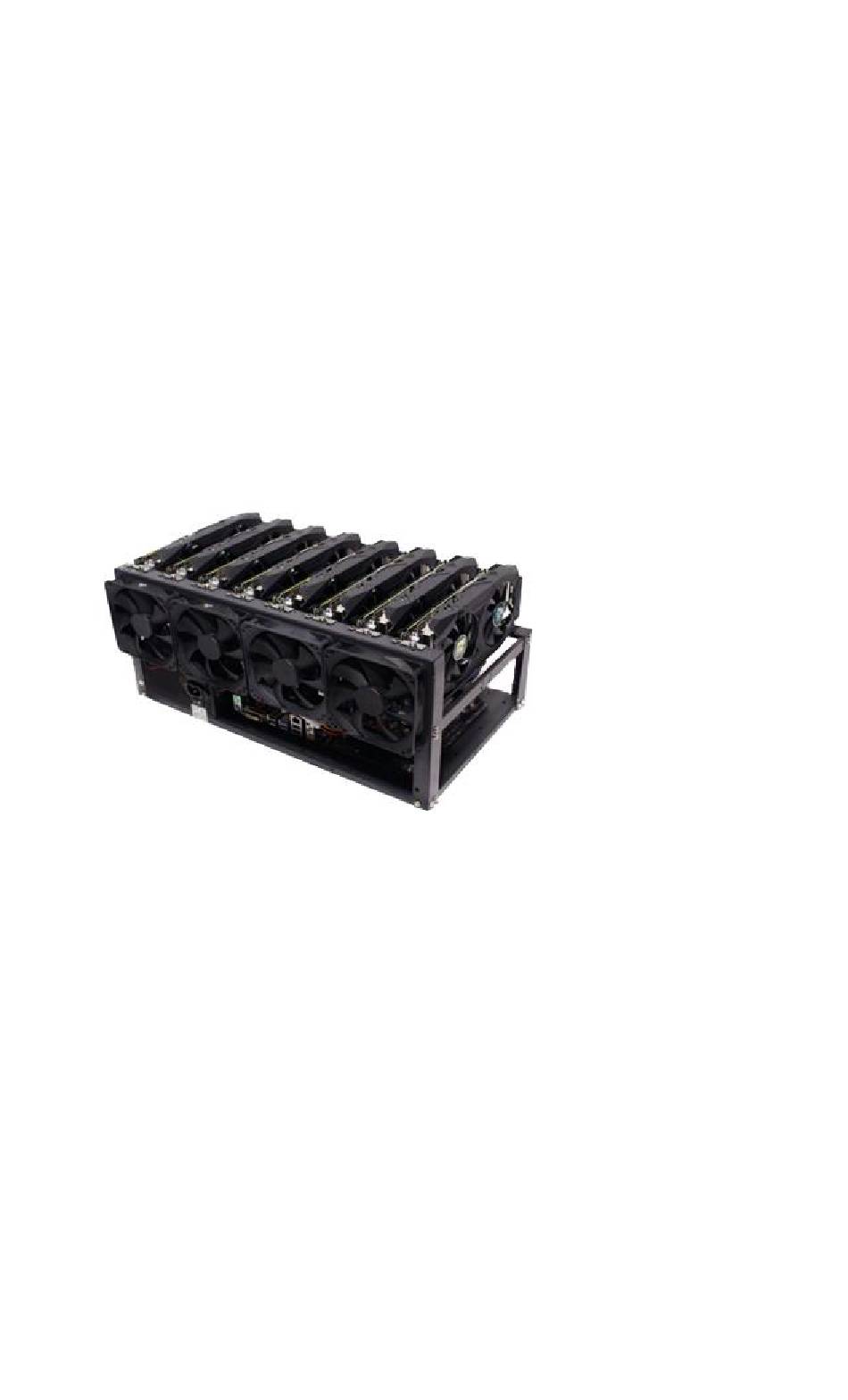

- Page 1 LEDG ERWAR E 6/8 GPU Open Air Case Assembly Instructions...
- Page 2 LEDG ERWAR E Components o 1 x Baseplate o 1 x Front support bar o 1 x Rear support bar o 2 x Side bars o 1 x PSU bracket o 1 x Mid bar (optional, only needed for short GPU’s) o 2 x Padded bar covers o 1 x Bag of screws...
- Page 3 Assembly Instructions 1. Base Plate Place base plate on flat surface. 2. GPU Support Bars Align support bar holes with the holes on the corner of the base. Use 3 screws in each corner to mount the support bars to the base. 6/8 GPU Open Air Assembly Instructions...
- Page 4 LEDG ERWAR E Ensure the shorter support bar is mounted to the rear of the base, closest to the slots. 3. Side Support Bars Using 4 screws for each side, attach the side support bars to the GPU support bars in the 2 holes on each side.
-
Page 5: Power Supply Bracket
4. Power Supply Bracket There are two PSU bracket locations on the front of the base. Using 2 screws, attach the power mount bracket to the holes on the front of the base as show below. The location on the left (as shown below) allows the PSU to sit lower and leaves more room for GPU’s (this is the recommended location). - Page 6 LEDG ERWAR E 5. Standoffs Screw in the motherboard standoffs included with the case. There are a number of different standoff positions available depending on the motherboard being used.
- Page 7 6. Fans There are 4 mounting locations for the fans provided. Using 10 of the self-tapping fan screws, mount the fans to the front support bar. 6/8 GPU Open Air Assembly Instructions...
- Page 8 LEDG ERWAR E Example Rig There are various component options to build mining rigs. The components used below are for reference only, this may change depending on the specifics of your build. Mount the motherboard to the appropriate standoffs. Install the RAM, CPU, and CPU heatsink. Be sure to wear an anti-static band.
- Page 9 Mount the power supply to the three located beside the mother board as show below. Carefully insert risers into the available riser ports on the motherboard. Plug the provided power switch into appropriate motherboard pins (refer motherboard manual to determine correct pins). 6/8 GPU Open Air Assembly Instructions...
- Page 10 LEDG ERWAR E Mount the first GPU to the front support bar using the holes provided. Continue to attach all GPU’s to the front support bar. Ensure GPU’s are evenly spaced to allow for optimal airflow. The support bar can accommodate up to 8 GPU’s.
- Page 11 6 GPU Rig: 8 GPU Rig: 6/8 GPU Open Air Assembly Instructions...
