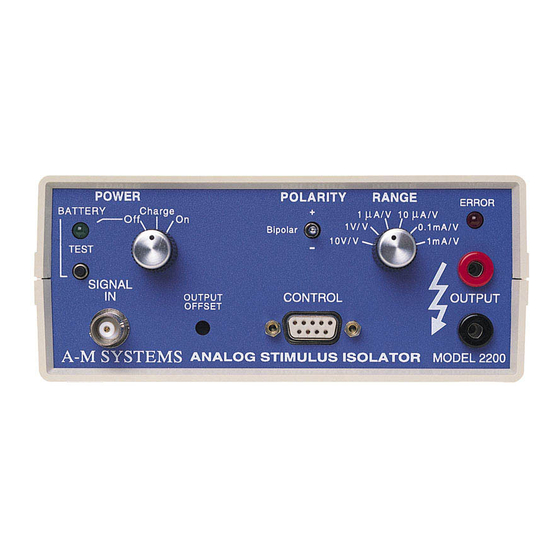

  • Page 2 INSTRUCTION MANUAL ANALOG STIMULUS ISOLATOR MODEL 2200 Serial #__________ Date____________ A-M Systems, Inc. PO Box 850 Carlsborg, WA 98324 U.S.A. ♦ 360-683-8300 800-426-1306 FAX: 360-683-3525 http://www.a-msystems.com Version 9.0 March, 2020...
  • Page 3: Table Of Contents

    Warranty and Service ...................... 14 Each Stimulus Isolator is delivered complete with: Battery Charger NOTE This instrument is not intended for clinical measurements using human subjects. A-M Systems does not assume responsibility for injury or damage due to the misuse of this instrument.
  • Page 4: General Description

    An internal battery tester is provided. A charger is supplied, and an oven-night charge cycle is all that is required to ready the 2200 for another day’s use. It is easy to swap a freshly charged pair of batteries if extended use is necessary.
  • Page 5: Operating Instructions

    Model 2200 output. Some kinds of connectors (e.g. BNC connectors) have exposed metal parts which may float at dangerous potentials unless externally connected to safety ground. For greatest safety, turn the Model 2200 off before handling connections to the output.
  • Page 6 For users requiring the lowest possible offset voltage or current, it maybe necessary to readjust the Offset. Use the small insulated screwdriver (supplied with the Model 2200) to zero the output while the input voltage is set to zero. It is best to do this with the Range switch set to the desired position.
  • Page 7 Figure 1. Bottom view of case: screw locations If for some reason it is necessary to store the 2200 for more than a few months, it is recommended that the unit be kept at a low temperature(5-10°C). Before storing for longer than a year, it is advisable to remove the batteries from the unit;...
  • Page 8 Do not connect the Battery/Test signal permanently low: this would reduce battery charge life, and prevent real output errors from being detected. Do not connect anything to pin 5 of DB-9 connector without consulting A-M Systems, or its representative. A-M Systems...
  • Page 9: Examples And Applications

    Power off, disconnect the 1kW resistor, and turn the Power back on. The output waveform should be much larger (flattening against the power supply rails), and the error LED should light up as the 2200 fails to drive up to 6500mA into the high impedance of the oscilloscope input/load.
  • Page 10: Combing Two 2200'S For Increased Output

    Combing Two 2200’s For Increased Output If you require up to twice the maximum output voltage, connect two 2200 units in a series. If you require up to twice the maximum current of a single 2200, connect the 2200’s in parallel.
  • Page 11: Problem Solving

    • In the lowest current range: stray electrical interference can degrade noise performance if it mostly couples into the A-M Systems PO BOX 850, Carlsborg, WA 98324 USA Telephone: 800-426-1306 * 360-683-8300 * FAX: 360-683-3525 E-mail: sales@a-msystems.com * Website: http://www.a-msystems.com...
  • Page 12 (Try operating the 2200 within a Faraday (electrostatic shielding) cage. Match or reduce the stray capacitance to each output pin. Shorted the output connections. If these are inadequate, reverse the output banana connector, and invert the signal polarity).
  • Page 13: Theory Of Operation

    The batteries used in the 2200 vary more from unit to unit than from fullly-charged to nearly-discharged, making it impractical to measure the charge state. It is recommended that you, the user, keep track of battery usage to ensure that the battery does not become exhausted at a critical time.
  • Page 14: Specifications

    Full scale output ±10V x Range setting Gain Within ±3% of setting at DC. Accuracy is reduced for high A-M Systems PO BOX 850, Carlsborg, WA 98324 USA Telephone: 800-426-1306 * 360-683-8300 * FAX: 360-683-3525 E-mail: sales@a-msystems.com * Website: http://www.a-msystems.com...
  • Page 15 (R in ohms). Bandwidth is decreased by the same factor. This is a function of the load impedance driven by a constant current source, not a static property specific to the Model 2200. Offset within ±0.002% of full scale (plus additional ±1nA offset in...
  • Page 16 Operating humidity 5-80% RH Storage temperature range 0-40°C Dimensions 6.35 cmH x 15.4 cmW x 15.9 cmD Weight 1.15kg A-M Systems PO BOX 850, Carlsborg, WA 98324 USA Telephone: 800-426-1306 * 360-683-8300 * FAX: 360-683-3525 E-mail: sales@a-msystems.com * Website: http://www.a-msystems.com...
  • Page 17: Warranty And Service

    For hardware sold prior to January 1, 2020, the warranty in effect at time of purchase applies, with the maximum warranty period of three (3) years for new purchases, and one (1) year for those that have been repaired by A-M Systems. For headstages manufactured by A-M Systems and sold prior to January 1, 2020, the maximum warranty period is one (1) year.
  • Page 18 What are the limits of liability for A-M Systems under this warranty? A-M Systems shall not be liable for loss of data, lost profits or savings, or any special, incidental, consequential, indirect or other similar damages, whether arising from breach of contract, negligence, or other legal action, even if the company or its agent has been advised of the possibility of such damages, or for any claim brought against you by another party.
  • Page 19 A-M Systems Model 2200 Manual DRW-5027300 rev 9 Revision History Date Description 1/18/19 DCR 202615 Review content, add content rev control. 3/19/20 DCR 203316. Update warranty. A-M Systems PO BOX 850, Carlsborg, WA 98324 USA Telephone: 800-426-1306 * 360-683-8300 * FAX: 360-683-3525...
