ACUCXTM2M Router
ACUCXTM2M Router
Quick Guide
Version 2.0
Acura Embedded Systems Inc.
Acura Embedded Systems Inc.
Quick Guide
ACUCXTM2M Router
1. Quick view
1.1. Appearance
(1) Dimension
SIM Card SLOT
(2) Converting cable
Device overview
Chassis: Metal plate case
Mounting: Removable wall‐fixing
panels or Din Rail mounting
SIM Locker: metal SIM locker
SIM slot: Flip‐out SIM card Slot
Interface
4G and 4G AUX antenna connector
GPS antenna Connector
LAN : Ethernet LAN connection
WAN/CON: Ethernet ports
RST: system hardware reset
Note: WAN/CON is only for Ethernet connection .
Updated in May 2017
Acura Embedded Systems Inc.
89.5
D/W：102.5×73.5×24.5mm / About 350g
Power plug DIA inner2.1mm / outer 5.5mm
Accessories: Power adaptor DC 12V/1.5A,

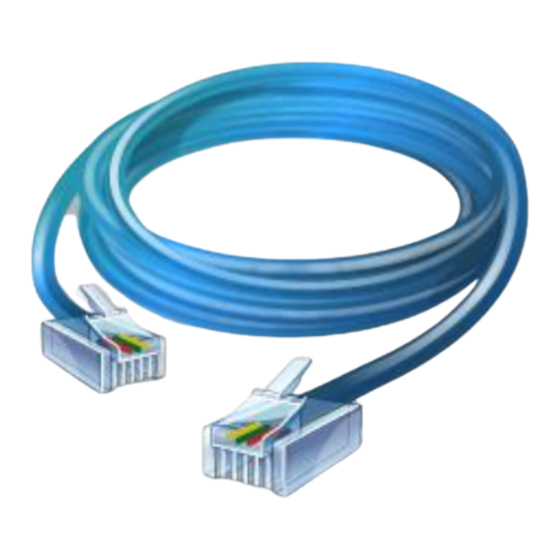

2 x Ethernet cables, Cell antennas ( 4G,4G
AUX, GPS )
LEDs : WLAN, WAN, LAN, NET
NET Red: poor signal
NET Orange: common signal
NET Green: strong signal
NET On: alive connection
NET Off: no connection
NET Flash: searching, registering networks
1
Updated in May 2017
Quick Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACUCXTM2M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Acura ACUCXTM2M

  • Page 1  NET On: alive connection WAN/CON: Ethernet ports  NET Off: no connection Acura Embedded Systems Inc. RST: system hardware reset NET Flash: searching, registering networks Note: WAN/CON is only for Ethernet connection . Acura Embedded Systems Inc. Updated in May 2017 Acura Embedded Systems Inc.

  • Page 2: Quick Install

    SIM Card 2.2. Connect LAN Use a Ethernet Cable to connect the Computer and LAN port of ACUCXTM2M Router . Then set the IP address. (Default Local IP:192.168.1.1) 2.3. Login web server Access web browser via router IP http://192.168.1.1, and the default user name and password are admin.
  • Page 3 2 RJ45 ports design, 1 fixed LAN and 1 optional port for WAN or LAN. 3.3 WLAN settings WLAN feature is only for models with WIFI. ACUCXTM2M supports 802.11 b/g/n 2.4GHz WiFi 1T1R, with AP, AP+WDS, wireless client, wireless Ethernet bridge, WDS working mode.
  • Page 4 3.6. Captive portal This feature is used for showing advertisements. When a client accesses the Internet through the ACUCXTM2M router, the captive portal will push a web page for authentication. After authentication,the clients can continue using the Internet connection. ...
  • Page 5 ACUCXTM2M Router Quick Guide ACUCXTM2M Router Quick Guide After creating Internet connection,ACUCXTM2M router will 3.9. Administration 3.8. Firewall synchronize the system time according NTP time server 3.9.1. System time automatically. So in order to get correct time, the administrator should select To prevent any accessing to some web pages, please block them in the firewall.
  • Page 6 3.9.5. Logging 3.9.3. ACUCXTM2M Server Platform Access ACUCXTM2M routers can support local logs and remote logs. The local logs will be deleted when the Product ID: This router name you input will be displayed in ACUCXTM2M Server platform. power is off. To get the all logs, please set the router to export logs automatically.
