Summary of Contents for Southworth PalletPal SR-44

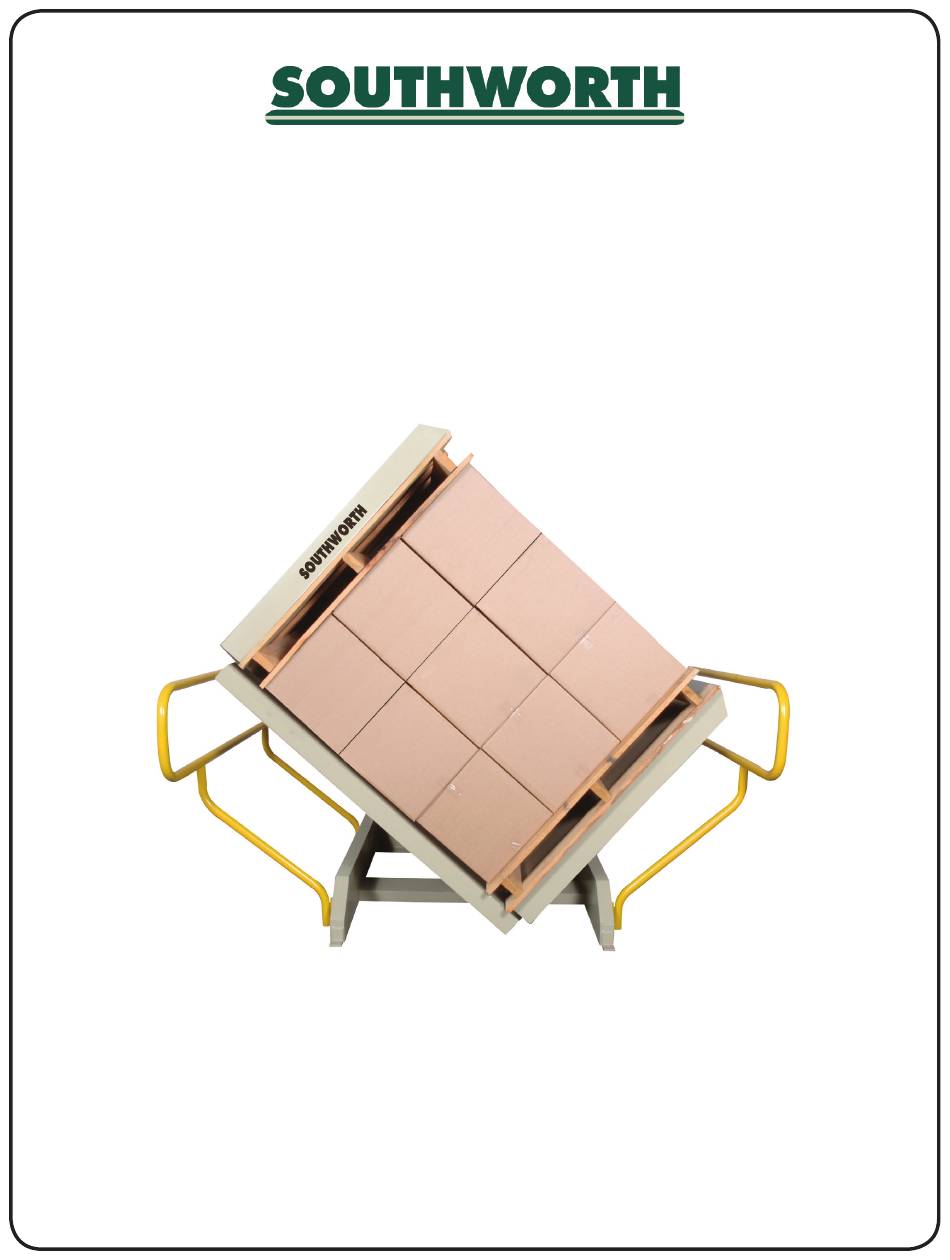

- Page 1 Owner’s Manual PalletPal Pallet Inverter/Rotator SOUTHWORTH PRODUCTS CORP PO Box 1380, Portland, ME 04104-1380 Telephone: 1-800-743-1000 • 207-878-0700 • Fax: 207-797-4734 www.SouthworthProducts.com service@SouthworthProducts.com February 2017...
- Page 2 Please note: This manual was current at the time of printing. To obtain the latest, most updated version, please contact Southworth’s Customer Service Department or go to our website: www. SouthworthProducts.com, under Parts & Service you will find a complete list of current owner’s manuals to print.
-
Page 3: Table Of Contents
Guardrail configuration ............14 Figure 4. Component location ............15 Figure 5. Hydraulic Pump and Down Valve ........16 Figure 6. Electrical connnections for 3 phase AC ....... 17 Figure 7. Hydraulic schematic for single phase AC ......18 Southworth PalletPal Pallet Inverter/Rotator... -
Page 4: Introduction
Southworth shall not be liable for any loss, injury or damage to persons or property, nor for any direct, indirect or consequential damage of any kind resulting from the lift table. -
Page 5: Responsibility Of Owners And Users
It is the responsibility of the user/purchaser to advise the manufacturer where deflection may be critical to the application. Repairs All repairs shall be made by qualified personnel in conformance with Southworth’s in- structions. Operators Only trained personnel and authorized personnel shall be permitted to operate the lift. -
Page 6: Safety Alert Symbols And Signal Words
NOTICE is used to address practices not related to physical injury. SAFETY INSTRUCTIONS (or equivalent) signs indicate specific safety- related instructions or procedures. NOTE: DANGER, WARNING or CAUTION should not be considered for property damage accidents unless personal injury risk appropriate to these levels is involved. Southworth PalletPal Pallet Inverter/Rotator... -
Page 7: Safety And Safety Considerations
All Southworth Pallet Rotators are fitted with industrial, high quality over-center valves to provide for smooth movement even when loads are abruptly introduced to the platform. All Southworth models are designed with a generous factor of three to one for all critical loading supporting elements. -
Page 8: Installation & Operating Instructions
1. Test the machine with the rated load. If the machine does not Positioning the lift move and you hear a loud squealing noise, this means the pres- sure relief valve is operating. Contact Southworth for instructions. 1. Remove the shipping material and unskid the machine. NOTICE 2. -
Page 9: Maintenance
FOR SAFETY’S The warning labels on the machine are there for the SAKE, if in doubt, please contact your dealer or Southworth Prod- safety of the operator. If the labels are worn or missing, ucts Corporation Customer Service Department at (207)878-0700 replace them. - Page 10 1. Adjust the clamping force to hold the load (See page 12). If the steps listed above do not solve the problem, please call the Customer Service Department at Southworth Products Corp. (207) 878-0700 or (800)743-1000. Southworth PalletPal Pallet Inverter/Rotator...
-
Page 11: Figure 1. Safe Servicing Of The Lift
Figure 1: Safe Servicing of the Lift Note: To safely perform maintenance, rotate the lift to 90 degrees and install both maintenance chains. Chain Locking Point Chain Labels and Precautionary Markings Southworth PalletPal Pallet Inverter/Rotator... -
Page 12: Figure 2A-C Label Placement
Figure 2a: Label Placement Figure 2b: Label Placement Southworth PalletPal Pallet Inverter/Rotator... - Page 13 Figure 2c: Label Placement Southworth PalletPal Pallet Inverter/Rotator...
-
Page 14: Figure 3. Guardrail Configuration
Figure 3: Guardrail Configuration Note: Guardrails must be installed on both sides before machine is put into operation. Southworth PalletPal Pallet Inverter/Rotator... -
Page 15: Figure 4. Component Location
Figure 4: Component Location Pressure gauge Rotator Electrical linkage control panel Clamp pressure adjustment (hoses not shown) Flow Valve control stack Cylinder Pump/motor assembly Oil filter Reservoir Southworth PalletPal Pallet Inverter/Rotator... -
Page 16: Figure 5. Hydraulic Pump And Down Valve
Figure 5: Hydraulic Pump and Down Valve Pre 8/22/2012 Post 8/22/2012 Southworth PalletPal Pallet Inverter/Rotator... -
Page 17: Figure 6. Electrical Connnections For 3 Phase Ac
Figure 6: Electrical Connections for Three Phase AC Southworth PalletPal Pallet Inverter/Rotator... -
Page 18: Figure 7. Hydraulic Schematic For Single Phase Ac
Figure 7: Hydraulic Schematic for Single Phase AC Southworth PalletPal Pallet Inverter/Rotator... -
Page 19: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS Southworth has carefully chosen the components in your lift to be the best available for the purpose. Replacement parts should be identical to the original equipment. Southworth will not be responsible for equipment failures resulting from the use of incorrect replacement parts or from unauthorized modifications of the machine. -
Page 20: Warranty
North America the warranty will be for replacement of defective parts only. Labor is not included. This is buyer’s sole remedy. Except as stated herein, Southworth Prod- ucts Corp will not be liable for any loss, injury or damage to persons or property, nor for direct, indirect, or consequential damage of any kind, resulting from failure or defective operation of said product.
