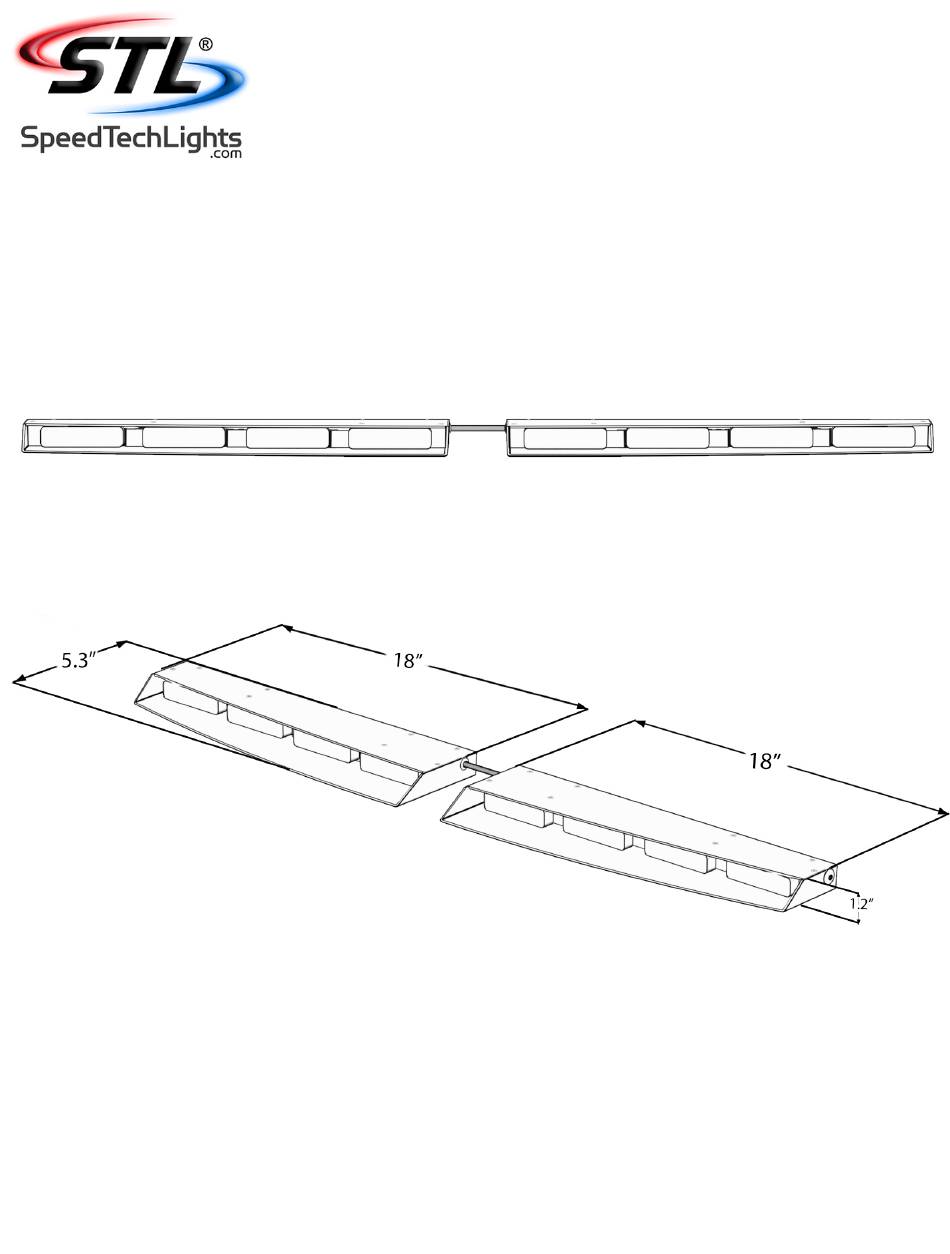

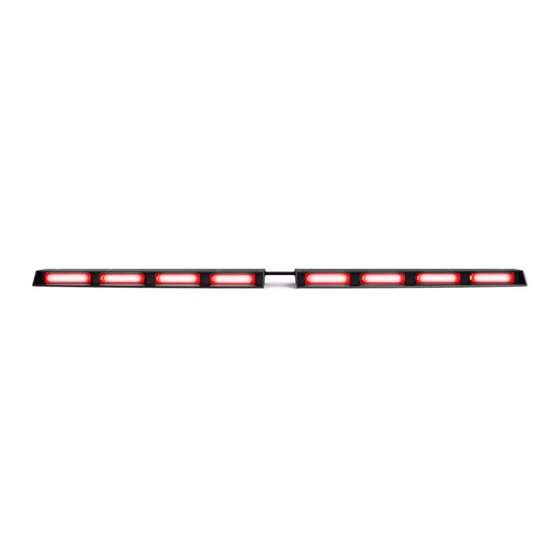

- Page 1 RAPTOR ® VISOR LIGHT BAR B-RTX8 B-RLX8 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2019...
- Page 2 SpeedTech Lights, Inc assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of the warning devices and safe operation of the emergency vehicle. Since the operator is under stressful environments the equipment must be properly wired and mounted to ensure effectiveness and safety.
-
Page 3: Maintenance
• Use Water (H2O) with a soft cloth to clean your Light Bar and lenses. • Yellowing of clear lenses may occur overtime. Lenses can be purchased by calling STL Customer Service at 800-757-2581. SpeedTech Lights, Inc © 2019... -
Page 4: Specifications
NOT cross connect wires. Use the reattached connector from the end of the main cable harness to plug into the control box. • NOTE: DO NOT leave connectors, cables, solder points exposed to heat, moisture, or debris. SpeedTech Lights, Inc © 2019... - Page 5 RAPTOR ® VISOR LIGHT BAR Available Visor Bracket Mounts Base Base Base Base Base SpeedTech Lights, Inc © 2019...
- Page 6 (4) Philips pan head short bolts • (4) Flat large diameter washers • (4) Split lock washers • (8) Philips pan head screws • (16) Flat small diameter washers • (8) Hex nuts • (2) Rubber protective strips SpeedTech Lights, Inc © 2019...
- Page 7 (2) hex nuts to secure. NOTE: Do not fully tighten at this point as adjusting will need to be done. 4. Repeat Steps 1 - 3 for each assembly. There will be a total of (4) assemblies. SpeedTech Lights, Inc © 2019...
- Page 8 3. Once the exact positioning of the brackets is determined, remove each assembly from the Raptor base to fully tighten the visor bracket and base bracket together. Reattach each assembly back to the Raptor base (as in Step 1). SpeedTech Lights, Inc © 2019...
- Page 9 2. Repeat Step 1 for the Passenger Side Vehicle Specific visor bracket and the (2) Center Vehicle Specific visor brackets. There will be a total of (4) assemblies. Driver Side Center Center Passenger Side SpeedTech Lights, Inc © 2019...
- Page 10 Driver side outter most hole. NOTE: Do not fully tighten at this point as adjusting will need to be done. 4. Repeat Step 3 for the Passenger Side Vehicle Specific visor bracket. Driver Side Center Center Passenger Side SpeedTech Lights, Inc © 2019...
- Page 11 2. Repeat Step 1 for the Passenger Side Vehicle Specific visor bracket. 3. Repeat Step 1 for the (2) Center Vehicle Specific visor brackets. Driver Side Passenger Side Center Center SpeedTech Lights, Inc © 2019...
-
Page 12: Spacer Installation
(2) hex nuts to secure. NOTE: Do not fully tighten at this point as adjusting will need to be done. 5. Repeat Steps 1 - 4 for each assembly. There will be a total of (4) assemblies. SpeedTech Lights, Inc © 2019... -
Page 13: Flash Pattern List
SpeedTech Lights, Inc, except for non-commercial purposes as permitted by United States copyright law. Customers of SpeedTech Lights, Inc, may download and print this Instruction Manual for use with products sold to the customer by SpeedTech Lights, Inc. However, no part of this Instruction Manual may be otherwise or subsequently reproduced, downloaded, disseminated, published, or transferred, in any form or by any means, except with the prior written consent of SpeedTech Lights, Inc.
