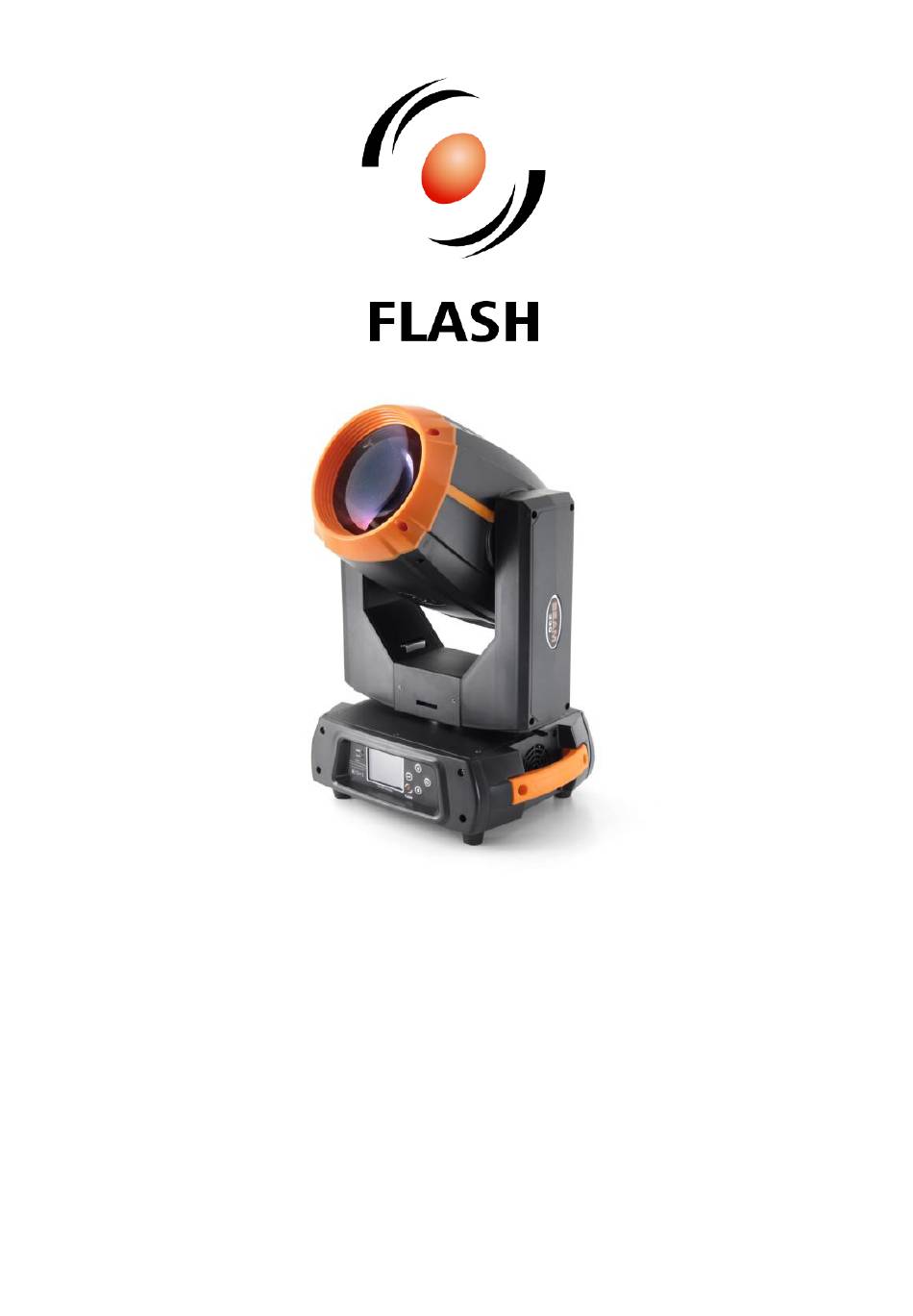

- Page 1 2x Moving Head 15R BEAM FL-330 + Case F7100106 USER MANUAL / INSTRUKCJA OBSŁUGI...
-
Page 2: Table Of Contents
2x Moving Head 15R BEAM FL-330 + Case F7100106 Table of contents Introduction ..............................2 Safety information ............................2 Maintenance ..............................2 Product specification ............................2 Installation ................................ 3 Connections ..............................3 Connecting DMX signal..........................3 Voltage specification ..........................4 DMX channel list ............................ -
Page 3: Introduction
FROST filter: Yes FOCUS: Electronic GOBO wheel: 13 patterns + open, gobo shake PAN range: 540° TILT range: 270° Number of DMX channels: 18 DMX standard: DMX 512 Control interface: 4 buttons www.flash-butrym.pl... -
Page 4: Installation
2x Moving Head 15R BEAM FL-330 + Case F7100106 Operating modes: DMX512, Auto, Sound-controlled Features: Touchscreens Additional information: 16-bit PAN/TILT AC IN: powerCON DMX IN: XLR - 3 pin DMX OUT: XLR - 3 pin ... -
Page 5: Voltage Specification
96-99: Color 3 + color 4 100-103: Color 2 + color 3 104-107: Color 1 + color 2 108-127: White + color 1 128-191: Forward from slow to fast 192-255: Reverse from slow to fast 0-0: Off CH 2 Strobe 1-50: Shutter open www.flash-butrym.pl... - Page 6 2x Moving Head 15R BEAM FL-330 + Case F7100106 51-240: Strobe from slow to fast 241-255: Shutter open CH 3 Dimmer 0-255: 0-100% 0-6: Open 9-17: Gobo 1 18-27: Gobo 2 28-35: Gobo 3 36-44: Gobo 4 45-53: Gobo 5...
-
Page 7: Wprowadzenie
Barwa: Tarcza kolorów - 13 + biały ZOOM: Nie Kąt świecenia (min): 0° Kąt świecenia (max): 4° Ściemnianie: Płynne: 0 - 100% Pryzmat: 2 pryzmaty: 8-ścienny, obrotowy, 24-ścienny, obrotowy Filtr FROST: Tak Regulacja ostrości (FOCUS): Elektroniczna www.flash-butrym.pl... -
Page 8: Instalacja
2x Moving Head 15R BEAM FL-330 + Case F7100106 Tarcza GOBO: 13 wzorów, gobo shake Zakres ruchu - PAN: 540° Zakres ruchu - TILT: 270° Ilość kanałów DMX: 18 Standard DMX: DMX 512 Sterowanie: 4 przyciski ... -
Page 9: Specyfikacja Zasilania
92-95: Kolor 4 + Kolor 5 96-99: Kolor 3 + Kolor 4 100-103: Kolor 2 + Kolor 3 104-107: Kolor 1 + Kolor 2 108-127: Biały + Kolor 1 128-191: Obrót w przód – wolno-szybko 192-255: Obrót w tył – wolno-szybko www.flash-butrym.pl... - Page 10 2x Moving Head 15R BEAM FL-330 + Case F7100106 0-0: Przysłona zamknięta 1-50: Przysłona otwarta CH 2 Strobo 51-240: Strobo – wolno-szybko 241-255: Przysłona otwarta CH 3 Jasność 0-255: 0-100% 0-6: Otwarte 9-17: Gobo 1 18-27: Gobo 2 28-35: Gobo 3...
