Marbletrend flinders Installation Manual

flinders shower panel
6
10
1
13
6
7
9
10
11
STEP 1
A) Place wall jamb (2) on wall make sure jamb is plumb and mark
holes
B) Drill 4 x 6mm holes to a depth of 35mm in wall and insert 6mm
anchors (3)
C) Fix wall jamb using 4mm stainless steel washers (4) and 4 x
3.5x35mm screws (5)
STEP 2
A) Insert fixed panel (1) into wall jamb (2)
B) Drill 4 x 3.2mm holes and fix panel to wall jamb using 4 x
3.9x8mm screws (6) and fit plastic screw caps (7) over screw
heads
STEP 3
A) Place support arm in position on top of fixed panel and mark
position on wall. Drill 8mm hole to a depth of 35mm and insert
8mm anchor (11)
9
9
10
11
12
1 Fixed panel
4
5
1 Wall jamb
6
7
4 φ 6mm Anchors
5 /
φ 4mm(φ ") Stainless Steel Washer
32
9 /
8
2
1
12
6
3
3 /
B) Fix support arm using 5x45mm stainless steel screws (12)
C) Tighten grub screw to fixed panel ensuring panel is level and
plumb
STEP 4
A) Place wall jamb cap (8) on wall jam and cover (9) for fixed panel
STEP 5
A) Apply silicone sealant around wall jam band fixed panel on external
joints only
B) Allow 24hrs for silicone to set bfore using shower
SSSP26CHCLP
SSSP34CHCLP
INSTALLATION GUIDE
2
11
7

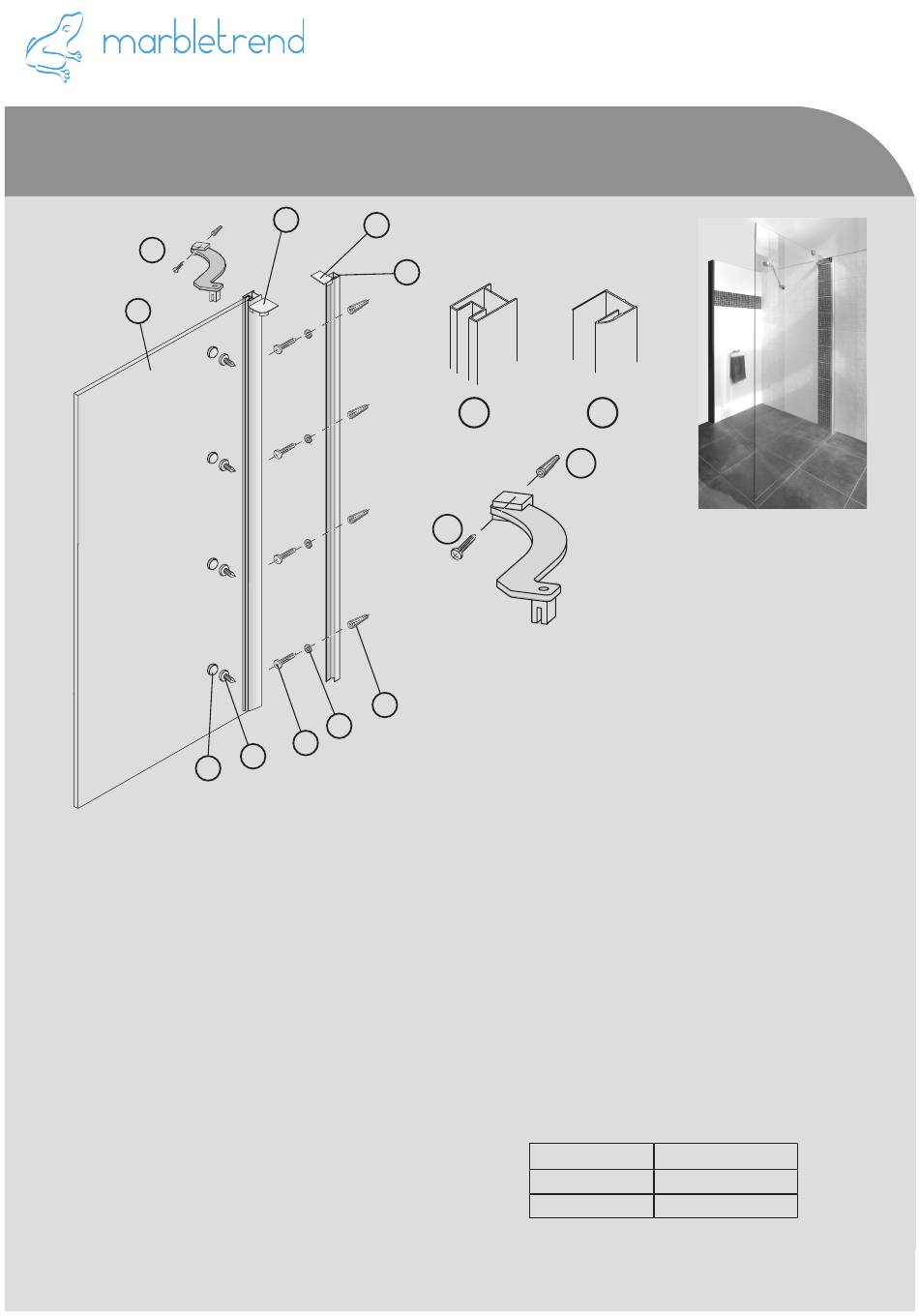

COMPONENT LIST
1. 1 x Fixed panel with jamb
2. 1 x Wall jamb
3. 4 x 6mm anchors
4. 5 x 4mm SS washers
5. 4 x 3.5x35 SS screws
6. 4 x 3.9x8 SS screws
7. 4 x Screw caps
8. 1 x Wall jamb cap
9. 2 x Side panel covers(L/R)
10. 1 x Support arm assembly
11. 1 x 8mm anchors
12. 1 x 5x45 SS screw
SHOWER PANEL MODELS
Model Size
2000 x 851 (+25)
2000 x 1165 (+25)
