- Page 1 Public Entry Station Converter AH8-WA802 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1. OVERVIEW..........1 2. - Page 3 5.3.4 Door & Lock Settings......16 5.3.5 System Settings........16 5.3.6 System Information .
-
Page 4: Overview

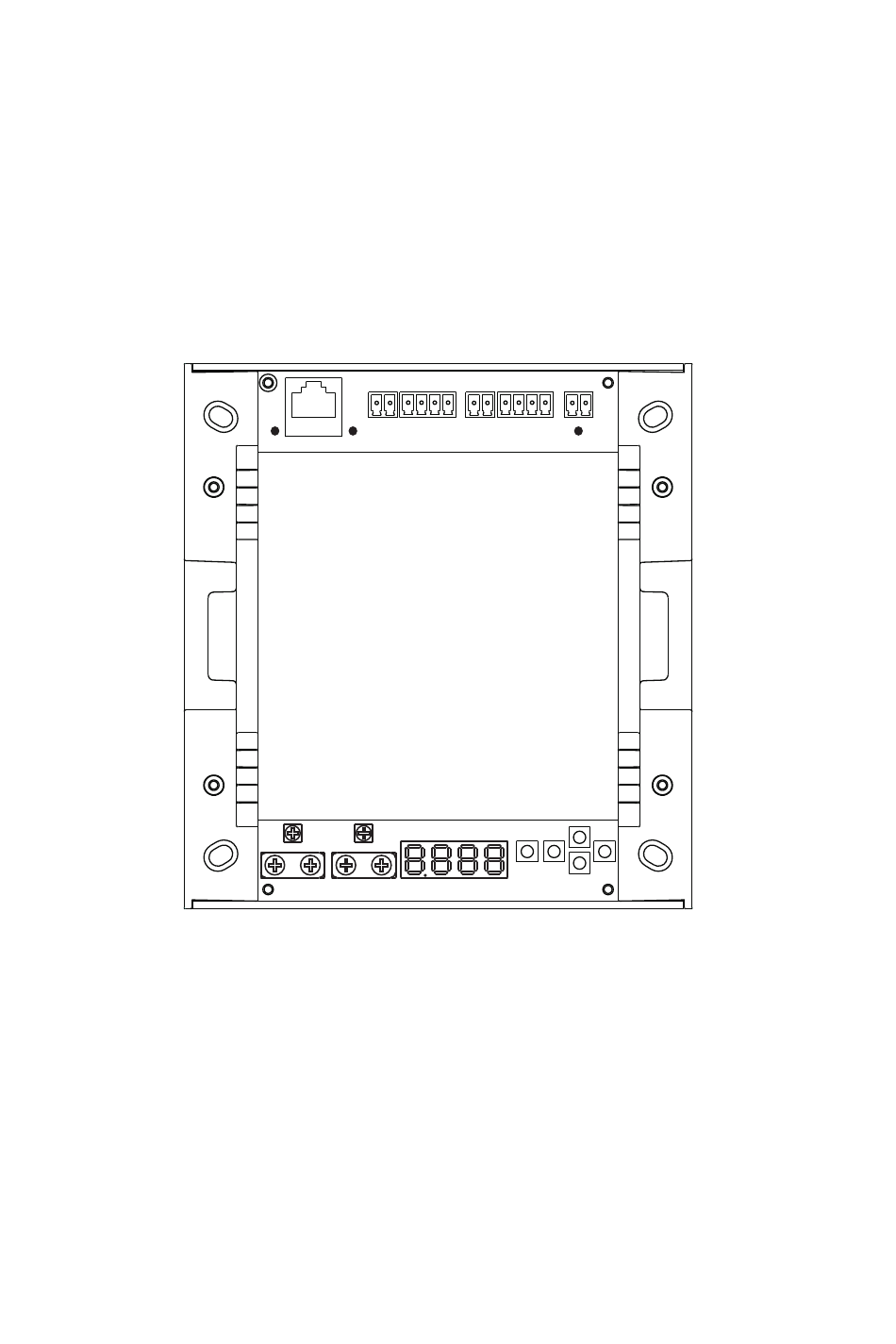

1. OVERVIEW Public Entry Station Converter AH8-WA802, installed at public entry, is an auxiliary device for connecting Public Entry Station into AH8000 system, assisting in realizing video intercom, surveillance and alarm. 2.TECHNICAL SPECIFICATIONS ≤200mA Input Voltage DC18V Standby Current ≤300mA Ambient Temperature -10℃～+55℃... - Page 5 PORT REFERENCE J_LAN TCP/IP to LAN to power port (+) on Secondary Entry Station 2 to power port (-) on Secondary Entry Station 2 to Port A+ on Secondary Entry Station 2 to Port A- on Secondary Entry Station 2 CAN communication port (H) CAN communication port (L) to power port (+) on Secondary Entry Station 1...
-
Page 6: Diagram
4. DIAGRAM 4.1 System Diagram 摘 机 报 警 Indoor Terminal1 Indoor Terminal N Admin Unit Center Server UTP5 UTP5 UTP5 UTP5 UTP5 RVV6* 0.5 RVV6*0. 5 RVV2* 0.5 TCP/IP DC18V v+ v- V+ V- J_LAN Power Supply REST FUN TK1 _V TK2_V DISPLAY... -
Page 7: Public Entry Station Converter & Public Entry Station
4.2 Public Entry Station Converter & Public Entry Station RVV6*0.5 Public Entry Station Converter Public Entry Station 1 TK1_V VD VG V+ V- OUT+ OUT- L+ L- 18V+ 18V- 12V+ 12V- SYV75-3 Fig.3 Note: when only one General Secondary Entry Station is connected into Public Entry Station Converter, a 120Ω... - Page 8 Press to locate a location Location where the device is installed and then Sec.Entry press to set the device as Secondary Prim.Entry / Primary Entry Station. When " Sec. Entry"is selected Device No Enter the Secondary Entry Station ID (1～8) . Stairway No: 0000 Enable riser: Y Device No.
- Page 9 Device No Press to activate Device No: 1 /deactivate riser No. and then press Enable riser:Y Network Enter the IP address of the Public Device IP： Entry Station Converter and then press 000.000.000.000 Network Enter the Subnet Mask and then Subnet Mask: press 000.000.000.000...
-
Page 10: Settings On Secondary Entry Station
Network Enter the IP address of RTSP Server RTSP: and then press to finish the settings. 000.000.000.000 Notes: 1. During step 8-12, you can use to move the cursor. 2. The above parameters should be set correctly to guarantee the normal work of Public Entry Station connected. -
Page 11: Password Settings
After “Add A Card” is selected in Step Add card: Add A Card press to select an apartment; or press to delete the Apt. No.: 0000 apartment number and enter a new one. Card No.： b. enter a 6-digit card number; or 123456 present a card to card reader. -
Page 12: Resident Settings
After “Add Unlock PWD” is selected in Step Add unlock password: Add Unlock PWD Press to select an Apt. No.: 0000 apartment; or press to delete the number and enter a new one . Password： *****_ b. Enter a 6-digit unlock password. Note: Unlock p assword(s) added after apartment number “0000”will not be attached to any apartment. -
Page 13: Door & Lock Settings
Resident Enter the number of total storeys in Total Storeys： the riser and then press Resident Enter the number of total apartments Apts/floor: per floor and then press Resident Edit resident’s name: Press to select an Apt. No.: 0101 apartment and then enter the resident’s Resident：... -
Page 14: System Settings
After “Door Settings” is selected in Step Activate door open alarm Door Open Alarm Press to locate Yes and then press *To cancel the operation, select No instead. Activate alarm sound Alarm Sound Press to locate Yes and then press *To cancel the operation, select No instead. -
Page 15: Security Settings
5.2.6.3 Security settings After “Security” is selected in Step Security Press to locate an item PIN Access and then press Alarm Settings Snapshot 5.2.6.3.1 Set a way of PIN access After “PIN Access” is selected in Step PIN Access Press to locate a way of PIN access and then press PIN+Apt. -
Page 16: Set Snapshot
5.2.6.3.3 Set snapshot After “Snapshot” is selected in Step Activate snapshot when visitor calls Visitor calls Press to locate Activate Activate and then press * To cancel the operation, select Deactivate Deactivate instead. Activate snapshot when wrong PIN WrongPIN entered entered Press to locate Activate... -
Page 17: System Information
5.2.7 System Information After “System Info” is selected in Step System Info Press to view system AH8000 Secondary information. Entry Station 01011# System Info Press to view system Device: V1.0 information. N.C.: V1.0 Free C. M.: 000500 5.2.8 Restore Factory Settings After “Restore”... -
Page 18: Password Settings
After “Add A Card” is selected in Step Add A Card Add card: Card No.： Enter a 6-digit card number; or present a card to card reader. 12345_ *Access cards added on Primary Entry Station are not attached to any apartment. -
Page 19: Door & Lock Settings
Notes： 1. 10000 groups of unlock passwords can be set, ranging from 0000 to 9999. 2.You may attach multiple unlock passwords to a group. E.g., set the unlock password owned by residents in one building under a same group. After “Del Unlock PWD” is selected in Step Del Unlock PWD Delete the unlock password in a group: No. -
Page 20: Settings On Public Entry Station Converter
5.4 Settings on Public Entry Station Converter You should carry out the below settings on Public Entry Station Converter. * The relative settings information will be displayed on the Digital Indicator. 5.4.1 Time Settings 1. Press and hold FUN Button for above 3 seconds, then release the button to access time settings;... -
Page 21: Other Indications On Digital Indicator
5.4.6 Other Indications on Digital Indicator STATUS DISPLAY INDICATION boot boot startup startup cern kernel startup EEEE network disconnected device number error IP address of device not set subnet mask not set standby IP address of gateway not set IP address of Admin Unit not set IP address of Center Server not set XXXX(4 digit) device number... -
Page 22: Dimensions & Installation
6. DIMENSIONS & INSTALLATION unit: mm 4 3 . 9 1 4 5 1 2 2 . 3 Fig. 5 Fig. 4 7. APPENDIX Letter arrangement on keypad WXYZ PQRS Fig. 6... - Page 24 WARNING & STATEMENT ● The installation and commissioning of this product should be carried out by professional installers for its proper performance. ● Please follow the instructions to install this product and ensure the correct wiring of the whole system before power on. ●...
