SEC-APW10
WIRELESS ALARM

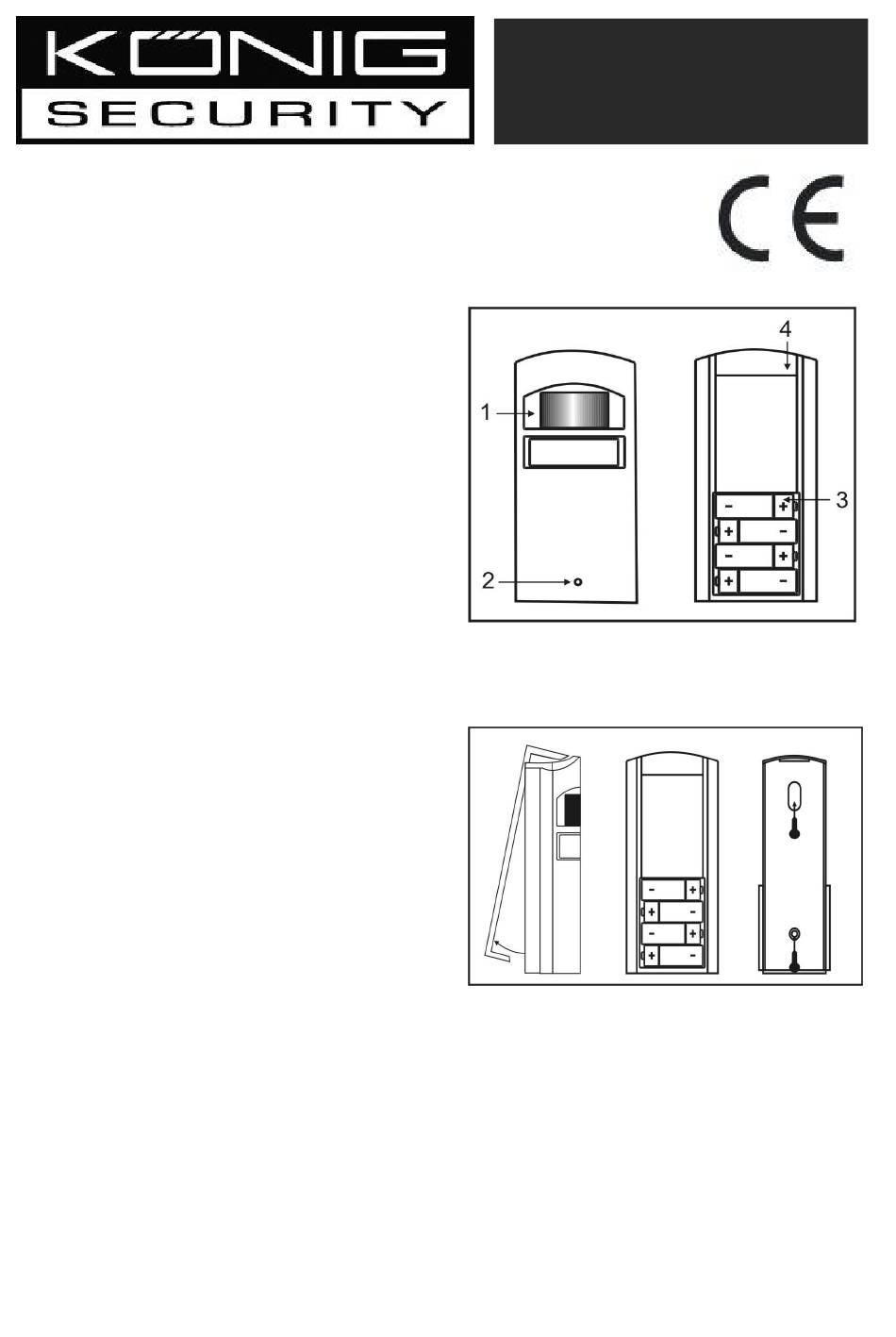

Description PIR sensor:
1.
PIR Sensor
2.
Battery LED Indicator
3.
Battery Compartment
4.
AC Adapter Socket
Battery installation:
1. The battery compartment is
accessed from the rear of the
PIR sensor by removing the
screw from the bottom and lifting
the back cover.
2. Insert 4x AA size batteries
(not included) according the
correct polarity and replace the
back cover.
Wall Mounting:
1. Remove the back plate.
2. Mount the back plate to the desired position to the wall.
3. Clip the unit to the back plate.
4. Secure the PIR sensor to the back plate by fastening the screw
on the bottom.
ENGLISH
INSTRUCTIONS
Advertisement
Related Manuals for König SEC-APW10
Summary of Contents for König SEC-APW10
- Page 1 ENGLISH INSTRUCTIONS SEC-APW10 WIRELESS ALARM Description PIR sensor: PIR Sensor Battery LED Indicator Battery Compartment AC Adapter Socket Battery installation: 1. The battery compartment is accessed from the rear of the PIR sensor by removing the screw from the bottom and lifting the back cover.
- Page 2 Description alarm: 1. Siren 2. Switch for alarm/chime 3. Mounting hole 4. AC Adapter Socket 5. Battery Compartment Battery Installation: 1. Slide the cover off from the backside of the alarm. 2. Insert 3x AA batteries in the battery compartment following the polarity diagram inside of the battery compartment.
- Page 3 To change the security code of the PIR sensor: 1. Open the back plate of the PIR sensor. 2. Locate the switch in the battery compartment (see figure A). 3. Set the switch in desired position. 4. Close the back plate. To change the security code of the alarm: 1.
