Summary of Contents for Tack life PMS03

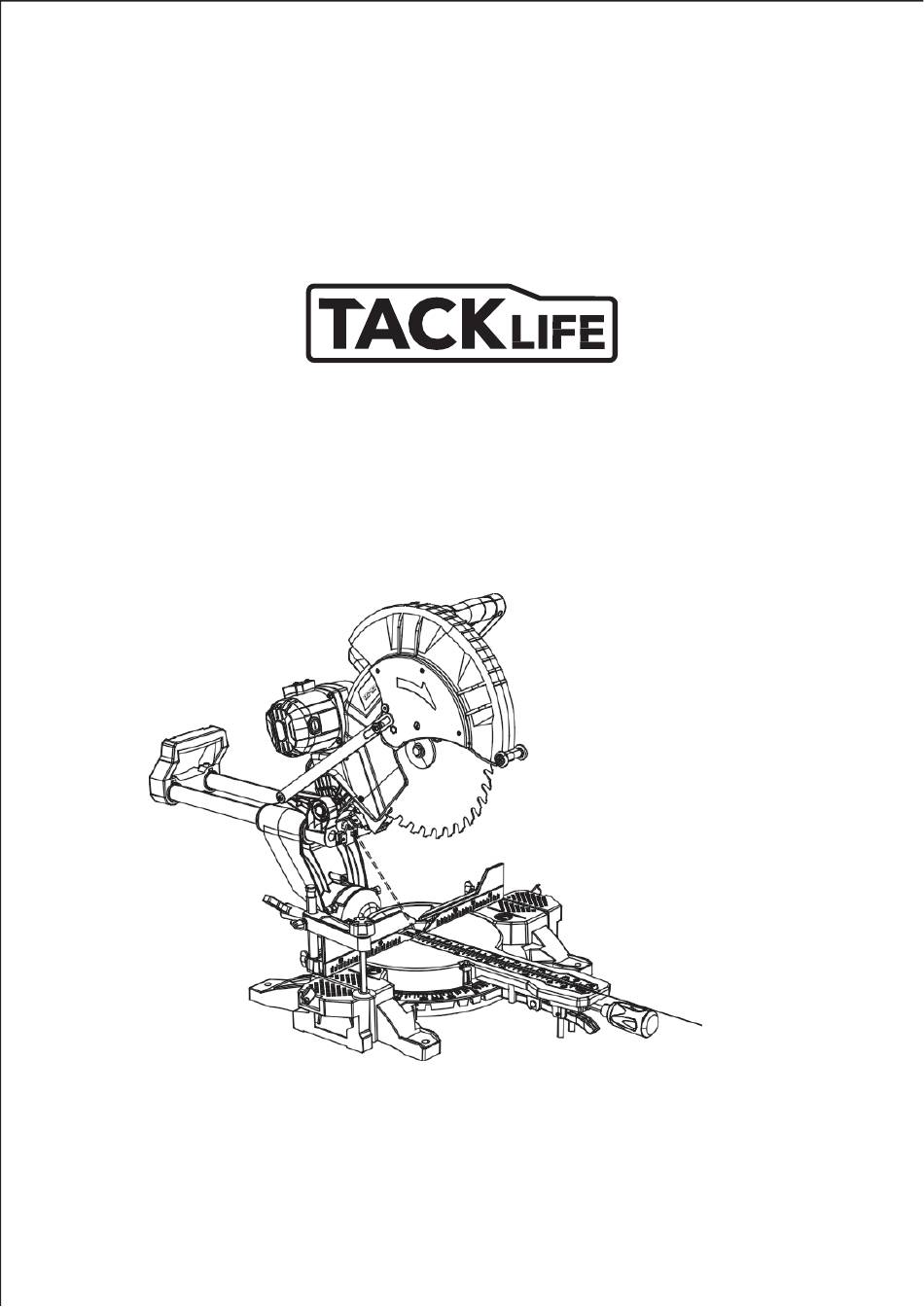

  • Page 1 User Manual Miter Saw LASER GUIDE Model: PMS03...
  • Page 2 13 8 - 01 -...
  • Page 3 - 02 -...
  • Page 4 - 03 -...
  • Page 5 - 04 -...
  • Page 6 - 05 -...
  • Page 7 - 06 -...

  • Page 8: Table Of Contents

    - EN - Table of contents 1. Description of symbols 2. Machine components 3. Accessories 4. Machine components (A1/4) 5. Proper usage 6. General Safety instructions 7. Special safety instructions 8. Before starting 9. Transport 10. Assembly 11. Working with the crosscut and mitre saw 12.

  • Page 9: Accessories

    - EN - 3. Accessories This CROSSCUT AND MITRE SAW WITH DRAG FUNCTION is supplied with the following accessories: ● Saw blade with 40 teeth (fitted) ● Chip bag ● Clamping device ● Side support (2x) ● Hexagonal wrench 4. Machine components (A1-4) 1.

  • Page 10: Proper Usage

    - EN - 5. Proper usage This machine is designed for crosscutting wood and plastic in sizes commensurate with the machine size. It is not suitable for cutting firewood. Use only saw blades which are suitable for the machine. Do not use cutting discs. The manufacture assumes no liability whatsoever for improper use or if the machine has been tampered with.

  • Page 11: Special Safety Instructions

    - EN - ● When using a cable drum, unwind it entirely in order to prevent the cable from heating up. The minimum wire gauge is 1.5 mm2. ● When working outside, the receptacle must be equipped with a residual current circuit- breaker.
  • Page 12 - 10 -...

  • Page 13: Before Starting

    - EN - ● Protect the saw blade from impacts and shocks. Do not exert any lateral pressure onit. ● Caution. The saw blade will continue to turn after the machine has been switched off. ● The saw blade will become very hot during use. Do not touch it until it has cooleddown. ●...
  • Page 14 - EN - Release the vertical angle lock (16) and set the sawing arm (5) to a vertical angle of 0° (in other words the saw blade is at an angle of 90° to the mitre bench). Tighten the vertical angle lock (16).

  • Page 15: Working With The Crosscut And Mitre Saw

    - EN - 11. Working with the crosscut and mitre saw WARNINGS Do not look directly into the laser beam. Never direct the laser beam at people or objects other than the workpiece. Do not deliberately point the laser beam at people. Only point the laser beam at insensitive workpieces with a dull surface.
  • Page 16 - EN - curves inwards is placed against the guide rail, the board may snap and jam the saw blade. 3) When sawing long boards, support the end of the board level with the saw bench using the side supports (35), a roller frame or a worktop. 4) If possible use the clamping device (10) to clamp the workpiece securely.

  • Page 17: Maintenance And Care

    - EN - 5. COMBINED MITRE CUTS The mitre angle and the vertical angle must both be set for combined mitre cuts. This process is used, for example, to make picture frames, for cutting strips and for making crates using angled side walls and also for roof trusses. Always test the cut first using a piece of waste wood before you cut the actual material.
  • Page 18 - EN - 9) Tighten the screw with the hexagonal wrench (19) (turn it anti-clockwise). Move the moving bottom safety hood (12) and the saw blade screw cover (14) into the correct position and tighten the securing screws. Check whether the safety hood functions correctly and covers the saw blade when the sawing arm is lowered.

  • Page 19: Technical Data

    - EN - 13. Technical data This machine has double insulation. It has two independent insulations to protect you from electric shocks. Voltage: 220-240 V ~/50 Hz 120V/60Hz Idling speed: 3800 rpm / 3500 rpm Saw blade: Ø 305 mm x Ø 30 x 2,8 mm, 40 T Angle of mitre bench: -45°/0°/+45°...
  • Page 20 Shenzhen Take Tools Co., Ltd. Web: www.tacklifetools.com Facebook: www.facebook.com/Tacklife.US E-mail: support@tacklife.net ADD: No.B714,Niulanqian Building, Minzhi Road, Longhua District, Shenzhen, Guangdong, China 518000...
