Summary of Contents for Advanced Wireless Communications AWR-D7000

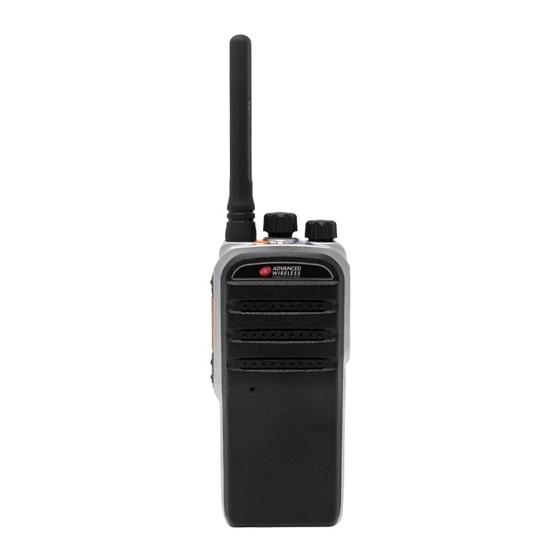

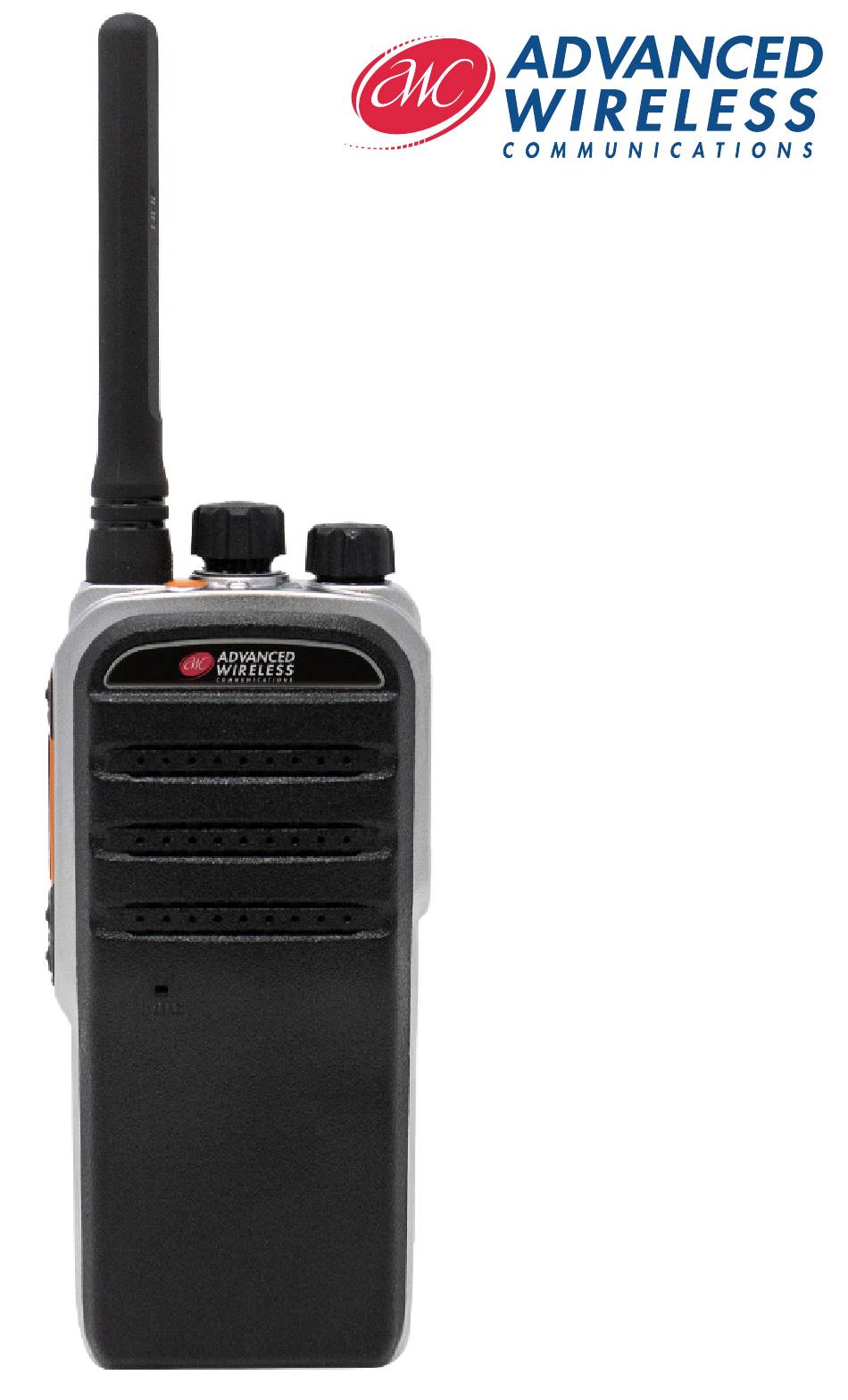

- Page 1 User Manual AWR-D7000 Digital Portable Radio...
- Page 2 Thank you! Thank you for purchasing this AWR-D7000 Digital two-way radio by Advanced Wireless Communications (AWC). This product is designed and developed according to FCC/IC/EU and advanced international standards. Our products are tested using strict and rigorous test procedures with advanced test instruments and equipment to internationally recognized standards.
- Page 3 The raining material below includes useful information about RF exposure and helpful instructions. Your Advanced Wireless Communications two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to RF electromagnetic energy. In...
- Page 4 FCC RF exposure guidelines. FCC License Information Your Advanced Wireless Communications radio operates on communications frequencies which are subject to FCC (Federal Communications Commission) Rules & Regulations. FCC Rules require that all operators using Private Land Mobile radio frequencies obtain a radio license before operating their equipment.
- Page 5 Advanced Wireless Communications Radio Quality Warranty and Liability The warranty range and limitation Advanced Wireless Communications (AWC) is committed to quality and stands behind its products. AWC will, during the warranty period specified for each product, repair or replace components that fail as a result of poor workmanship or materials.
-
Page 6: Table Of Contents
CONTENTS Packing list ..................1 Radio controls................. 1 LED indicators ................1 Battery information ................2 Battery charge ................2 Battery protection ................2 Battery usage ................. 3 Programmable keys................ 3 Programmable functions..............4 Function and basic operation ............. 5 Turning the radio on / off .............. -
Page 7: Packing List
Packing List The following items are contained in the box. If any item is missing or damaged, please contact your dealer. Please note that the packing list is for a complete retail box. Orders may consist of all or a portion of the items noted. Consult with your purchasing department. -
Page 8: Battery Information
4. The LED charging indicator on the charger will indicate the charging status. Battery information Battery protection Advanced Wireless Communications’ (AWC) radios use lightweight, environmentally friendly lithium-ion batteries as a power source. The following battery tips will help you to get the best performance and prolong the battery life of your equipment. -
Page 9: Battery Usage
4. Batteries that are stored and unused discharge over time. Programmable Keys There are four programmable keys available on the AWR-D7000. These keys are denoted as K1, K2, K3, and TK (Emergency Key). Each key has two modes, short press and long press. -
Page 10: Programmable Functions
Programmable Functions The programmer may assign the keys with one of the functions as noted in the following table. -
Page 11: Function And Basic Operation
Basic Operation • Turn On: Turn the Volume/Power knob clockwise to turn the radio on. A power-on tone and voice announcement may be programmed. • Turn Off: Turn the Volume/Power knob counter clockwise to turn the radio off, you will hear a sound when the radio is turning off. •... -
Page 12: Fault Handling Guide
General Guide for Fault Handling Note: If the above methods fail to solve your problem, or you confront different malfunctions, please contact your local dealer or appointed maintenance station. Maintenance and Cleaning To ensure the best performance and prolong the working life of the radio, please acquaint yourself with the following for maintenance and cleaning. -
Page 13: Cleaning
Cleaning • Please clean the device regularly using a dry clean cloth or soft brush to wipe dust on the surface and from the charging contacts. • The control knobs, buttons and housing of the device may get dirty from use. Please use non-woven wipes to clean them. - Page 14 (952) 469-5400 / Toll Free: (800) 475-5852 20809 Kensington Blvd Lakeville, MN 55044-8353 www.AdvancedWireless.com ©2019 Advanced Wireless Communications. All rights reserved. 501171...
