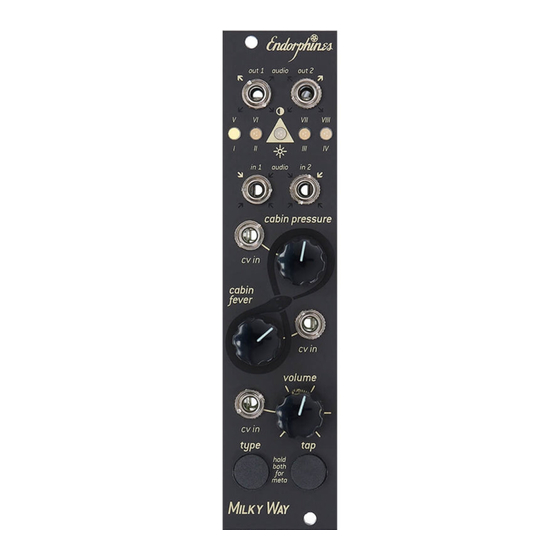

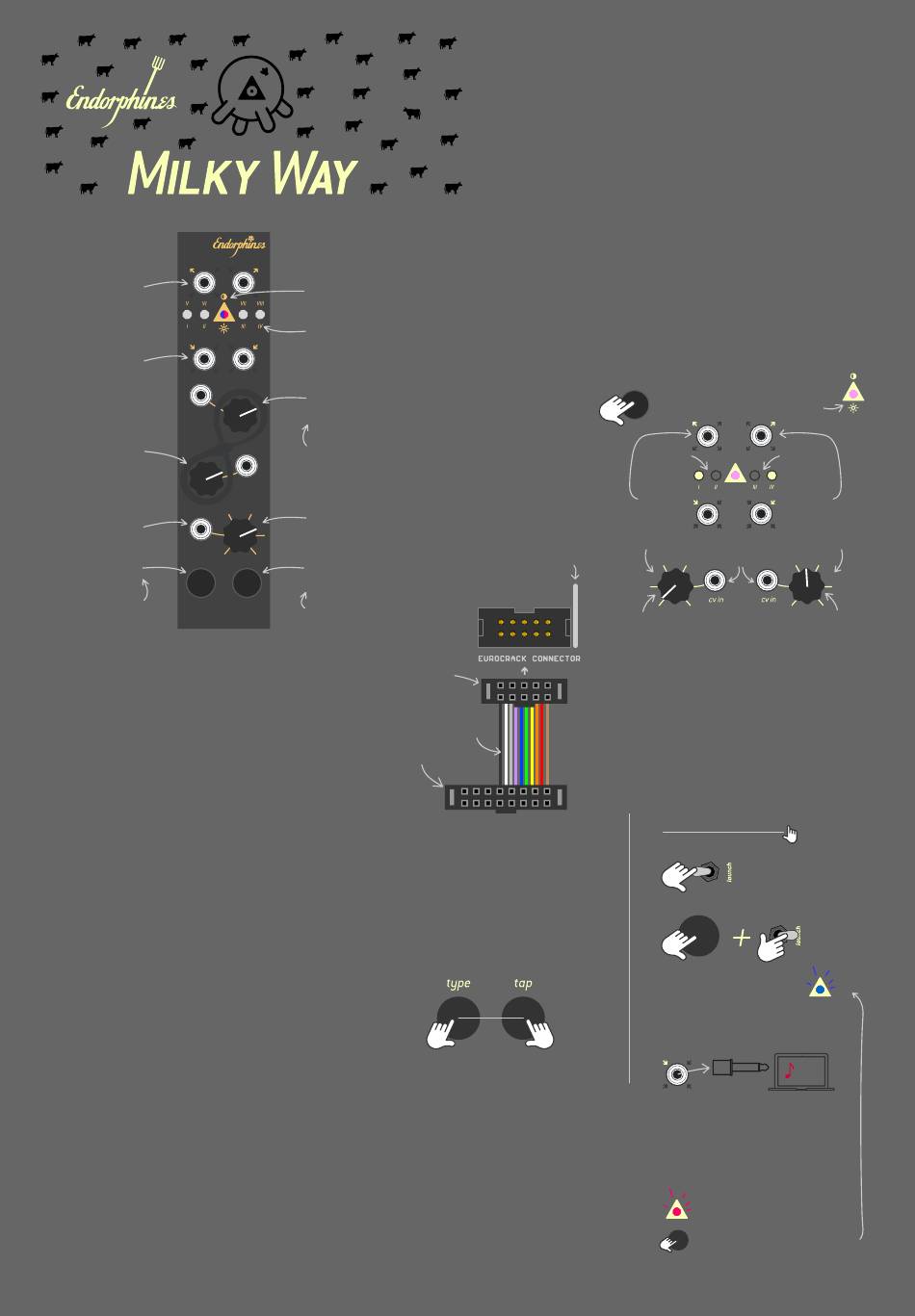

Endorphines Milky Way Quick Start Manual

Effect outputs
Audio inputs:
input 1 internally
connected to input 2,
if nothing is
plugged into input 2
cv in
cabin
fever
Cabin fever control and CV
adjusts secondary
effect parameter:
decay of the reverb,
feedback of the delay, etc.
Unattenuated CV input
for VCA control, range 0...+5v
cv in
type
Pressing the TYPE button shortly
cycles thru all effect types.
Short press TYPE+TAP changes
M
ILK Y
the active bank of effects.

WARRANTY

RTFM – be so kind and read the manual. It will provide you with the
information you need to fully indulge the module you just
purchased – for which we like to thank you.
Enjoy your sound experiences, dear sonic traveller.
Beginning from the product's purchase date a 1-year warranty is
guaranteed for each product
in case of any manufacturing errors or other functional
deficiencies during runtime.
The warranty does not apply in case of:
• damage caused by misuse
• mechanical damage arising from careless treatment
(dropping, vigorous shaking, mishandling, etc.)
• damage caused by liquids or powders penetrating the device
• heat damage caused by overexposure to sunlight or heating
• electric damage caused by improper connecting
The warranty covers replacement or repair, as decided by us.
Please contact us via email for a return authorization before
sending anything. Shipping costs of sending a module back for
servicing is paid by the customer.
Device complies with all EU regulations concerning RoHS lead-free
manufacturing and WEEE disposal
Endorphin.es are made in Barcelona, Spain
out 1 audio out 2
Status LED: shows bank
change, update, entering
secondary parameters, etc.
4 white LEDs show currently
chosen one of 8 effects
• when LED is semi LIT, then it
in 1 audio in 2
shows one of V...IV chosen effect types
• when LED is full LIT, then it
shows one of I...IV chosen effect types
cabin pressure
'Cabin pressure' control and CV
adjusts the dry (fully CCW) and
wet (fully CW) level or the effect
Manual 'cabin pressure'
and 'fever' knobs act
as attenuators when
the plugs are inserted.
cv in
volume
Final manual
volume control
tap
Holding 'tap' button for longer
hold
than 1 sec. enters secondary effect setting
both
for
(depeding on the effect type)
meta
W
AY
Pressing 'tap' + 'type'for longer than
1 second enables FX meta scanning.
CHASING THE MILKY WAY
• Simple and effective 6hp stereo effect module
• Comes with 16 types of effects, organized in two banks of 8
• Meta cv effect scanning and VCA
• 48 kHz 16 bit digital audio stereo processing
Depth: 30mm (with plugged ribbon cable)
Power requirements: +12V: 120 mA
-12V / red stripe
polarity marking
Rear side of the module
Connect to
the module
from the
backside.
Red/brown pair
or wires correspond
to a negative -12V
power connector.
Connect to the
power bus board.

POWER CONNECTION

RESET THE MODULE

The soft reset that adjusts all parameters
to their default values.
This also clears all effect memories.
Press both 'type'and 'tap' buttons simultaneously
and hold for more than 5 seconds.
You may hear a short blip and then you
will see the effect will be set to the first one.
hold for 5 seconds to reset
Visit us:
http://endorphin.es
https://youtube.com/user/TheEndorphines
https://facebook.com/TheEndorphines
https://www.instagram.com/endorphin.es/
Drop us a line:
info@endorphin.es
FURTH BARCELONA, S.L.
VAT ID:ES B66836487
-12V: 15 mA

SPATIAL MOVEMENT

type
Pressing the 'type' button for longer than
1 second will enable panning/xfade mode
and LED inside the triangle will light up fuchsia.
out 1 out 2
audio out
Brightness of
LEDs I and II
indicates the
output level of
in 1 in 2
'in 1' and 'in 2'
at the 'out 1'
audio in
Default knob
CV input range:
value: full CCW
-5...+5V, mixed
cabin fever
with manual offset
'Cabin fever' control with CV 'Cabin pressure' control with CV
will adjust crossfade (blending) will adjust final panning of both
between 'in 1' and 'in 2' as they appear 'in 1' and 'in 2' to the 'out 1' and 'out 2'
in separate 'out 1' and 'out 2' (full CCW) after the blending stage.
or in both outputs (noon)
or in reversed outputs (full CW).

FIRMWARE UPDATE

download latest firmware/bank
when available from:
http://airways.endorphin.es
Power OFF you modular system:
Hold 'mode' while powering your system again:
tap
You will see status LED
will blink blue:
Connect the audio output from your computer
headphones output to one of the audio inputs
of the module with simple mono or stereo cable.
in 1
audio in
Press PLAY and wait 1.5 minutes.
Use and file player that does not apply
audio compression to the file.
During the update process you should
observe that the BLUE light is blinking
faster than initialy.
The module will reboot automatically
after the new firmware was installed
Make sure you don't input any extra
sounds during update process
(reminder signals from your calendar,
etc.). When status LED flashes RED –
that means signal is too low or too high
– just reset the firmware aquire process
tap
by pressing MODE once.
Brightness of
LEDs III and IV
indicates the
output level of
'in 1' and 'in 2'
at the 'out 2'
Default knob
value: noon
cabin pressure
WAV
