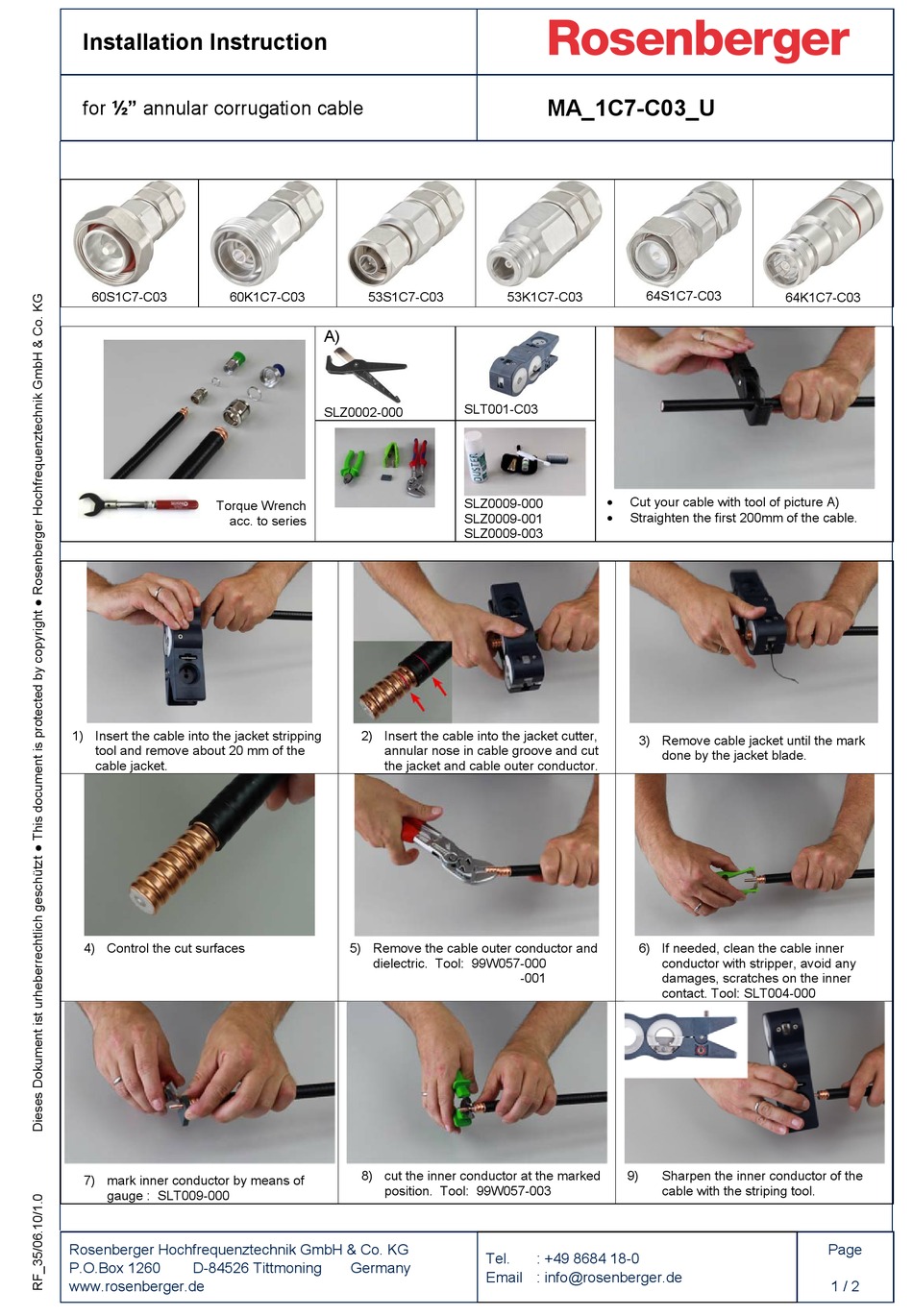

Rosenberger 60S1C7-C03 Installation Instruction

Installation Instruction
for ½" annular corrugation cable

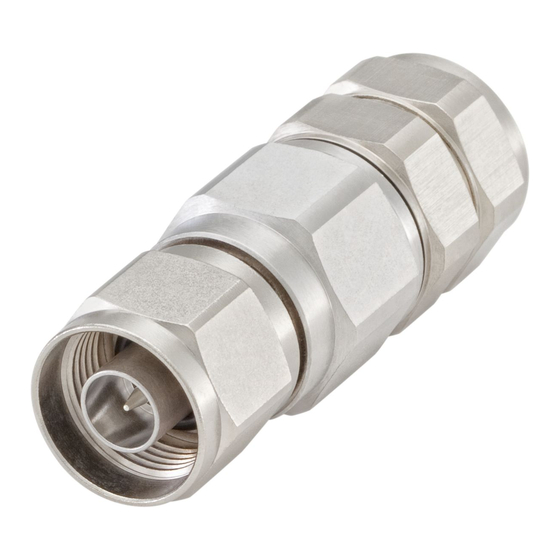

60S1C7-C03 60K1C7-C03
Torque Wrench
acc. to series
1) Insert the cable into the jacket stripping
tool and remove about 20 mm of the
cable jacket.
4) Control the cut surfaces
7) mark inner conductor by means of
gauge : SLT009-000
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260 D-84526 Tittmoning
www.rosenberger.de
53S1C7-C03
A)
SLT001-C03
SLZ0002-000
SLZ0009-000
SLZ0009-001
SLZ0009-003
2) Insert the cable into the jacket cutter,
annular nose in cable groove and cut
the jacket and cable outer conductor.
5) Remove the cable outer conductor and
dielectric. Tool: 99W057-000
8) cut the inner conductor at the marked
position. Tool: 99W057-003
Tel.
Germany
Email : info@rosenberger.de
MA_1C7-C03_U
64S1C7-C03
53K1C7-C03

Cut your cable with tool of picture A)

Straighten the first 200mm of the cable.
3) Remove cable jacket until the mark
done by the jacket blade.
6) If needed, clean the cable inner
conductor with stripper, avoid any
-001 damages, scratches on the inner
contact. Tool: SLT004-000
9) Sharpen the inner conductor of the
cable with the striping tool.
: +49 8684 18-0
64K1C7-C03
Page
1 / 2
