- Page 1 · installation guide V190918...
- Page 2 6.8kg (15lbs) counter weight mast base with male slip power wire to 150W fit connection plug in transformer 1470 Venables Street Vancouver, B.C.
- Page 3 small cloud mobile anatomy anodized aluminum mobile structure main support cable small cloud pendant main electrical wire medium cloud pendant small cloud pendant 1470 Venables Street Vancouver, B.C. Canada V5L 2G7 t +1 604 696 250 f +1 604 685 0342 info@molodesign.com www.molodesign.com...
- Page 4 anatomy of cloud pendant within mobile canopy plate electrical wire support cable carbon rods shade chicago bolt aluminum armature with LED ribbon 1470 Venables Street Vancouver, B.C. Canada V5L 2G7 t +1 604 696 250 f +1 604 685 0342 info@molodesign.com www.molodesign.com...

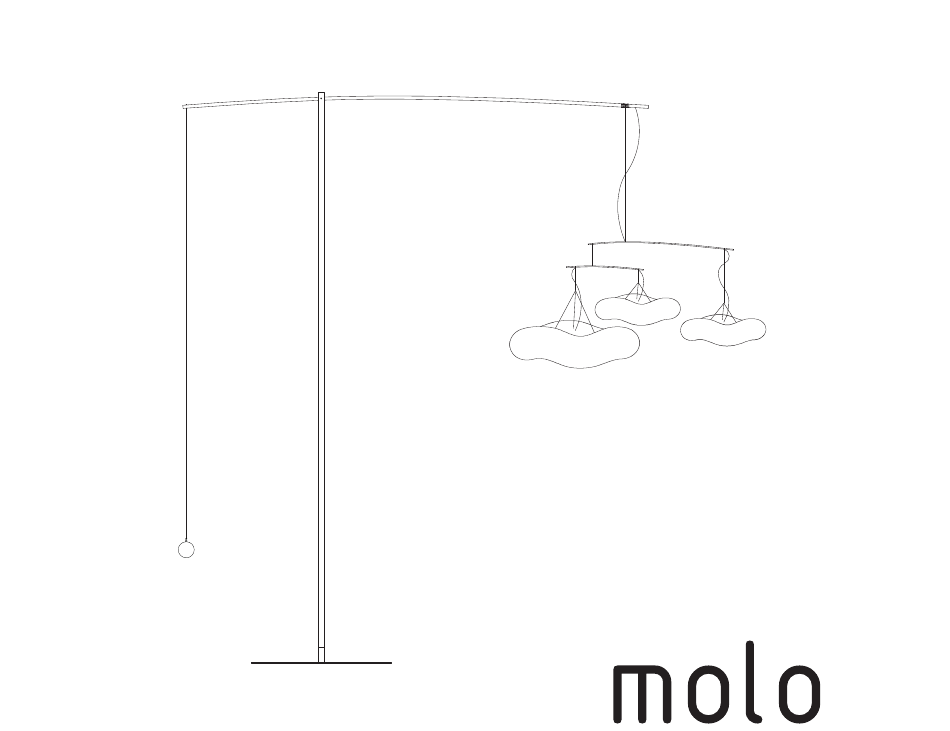

- Page 5 3m (10ft) main electrical wire cloud mobile 9m (30ft) (see next page) counter weight support cable 2.8m (9ft) vertical tube 3.6m (12ft) mast base 910mm (3ft) diameter 1x 6.8kg (15lbs) counter weight with snap hook...
- Page 6 small cloud mobile parts main electrical wire (attcached to mast boom) main support cable (attached to mast boom) small pendant support cable anodized aluminum mobile structure small pendant medium pendant electrical wire electrical wire medium pendant small pendant support cable support cable small pendant electrical wire...
- Page 7 2 anodized aluminum mob large clou step 3 step 7 step 4 main support cable main electrical wire step 1: Place the mast base as close to its end position as possible and lay out all mast parts in the position that they will be assembled (horizontal boom balance point near the slotted top of the 3.6m (12’) vertical tube, bottom of the vertical tube near the center of the...
- Page 8 cloud pendant assembly fasten with provided step 2 step 3 step 1 chicago bolt wide edge of shade facing out flat side of shade facing up If cloud is stuck in this postion, gently push up on centre of shade until it step 4 settles into place step 1: Start with the medium cloud shade.
- Page 9 cloud pendant assembly wrap electrical wire support cable loosely around support cable key ring step 6 step 7 step 8 step 6: Use split ring pliers to open the key ring attached to main support cable and attach step 8: Close the shade around the armature by grabbing 20+ layers of the outer fins and pulling the the three support cables from cloud pendant.
