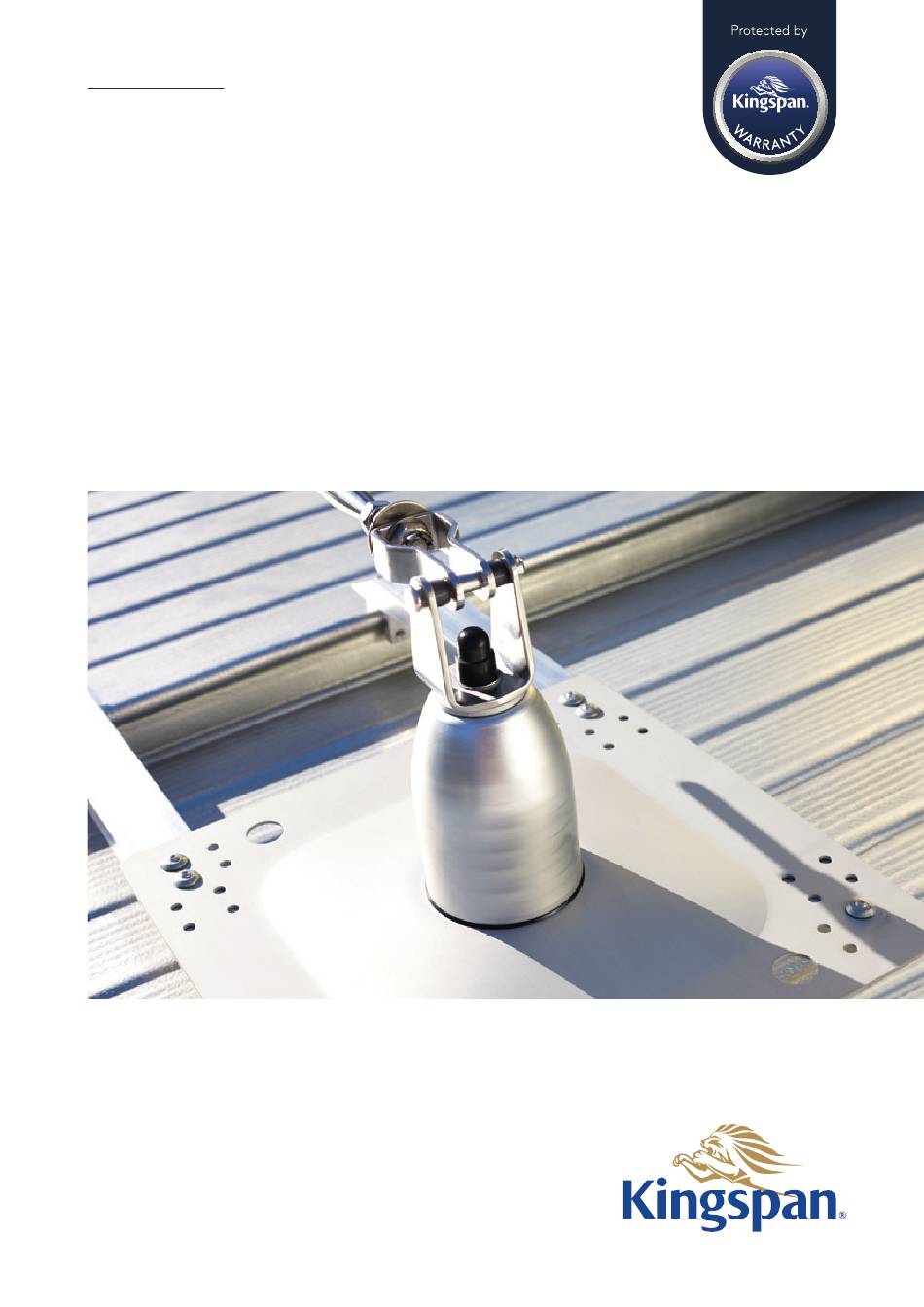

- Page 1 Fabrications, Safety & Lighting solutions UK & Ireland Kingspan SafePro 2 Anchor and Cable System User Instruction Manual...
-
Page 2: Table Of Contents
12.1 The Kingspan SafePro 2 Cable System The SafePro 2 Anchor 12.2 Installation 2.1 The Kingspan SafePro 2 Anchor 12.3 Fixings 2.2 Positioning of the Kingspan SafePro 2 Anchor 12.4 Packaging 2.3 Anchor Activation 12.5 Quality System Design, Installation And 13.0 Precautions, Requirements &... -
Page 3: Foreword (Anchor)
Section 1.0 Thank you for purchasing a Kingspan SafePro 2 Anchor. The SafePro 2 Anchor is designed to eliminate or substantially reduce the risk of a fall which would otherwise lead to injury or death to operatives working at height. Therefore it is vitally important that it is installed, maintained and used correctly. -
Page 4: The Safepro 2 Anchor
• CEN TS 16415:2013 Type A The SafePro 2 Anchor provides a secure anchor point for a worker at height, close to an exposed edge or other fall hazards, when used in conjunction with associated PPE, such as a full body harness and safety lanyard. -
Page 5: Positioning Of The Kingspan Safepro 2 Anchor
® ® When positioning the SafePro 2 Anchor System there are two styles of placement to consider. When positioning the 3M DBI-SALA RoofSafe Anchor System there are two styles of placement to consider When positioning the 3M DBI-SALA RoofSafe Anchor System there are two styles of placement to consid Important Note. -
Page 6: System Design, Installation And Other Characteristics (Anchor)
3.5 Quality – The requirement for access and task to be performed – Availability of structural anchors Kingspan operates a quality system to ISO9001 and offers full product traceability for all components. – Ground clearance All Kingspan products are tested in accordance with current –... -
Page 7: Regulations, Quality, Precautions & Exclusions (Anchor)
The following precautions, requirements and exclusions apply to the SafePro 2 Anchor: – The anchor must be installed by a Certified Kingspan Installer or competent person trained by Kingspan or Kingspan’s representative –... -
Page 8: Inspection, Maintenance, Servicing & Warranty (Anchor)
Warranty 5.1 Inspection and General Maintenance 5.2 Servicing The Kingspan SafePro 2 Anchor has been designed to be used In accordance with manufacturers recommendations and under a variety of conditions. It uses high-grade components current national standards, an Anchor that is in regular use that are corrosion resistant. -
Page 9: Pre-Use & In Use Checks (Anchor)
- including swing fall (pendulum fall) hazards. If any of the above is questionable do not use the Anchor and report to a Certified Kingspan Installer. Kingspan ExoFit NEX™ Harness Kingspan SafePro 2 Single Point... -
Page 10: Compatibility Of Components
Do not use equipment that is not compatible. Contact Kingspan if you have any questions about compatibility. Kingspan connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions. See B. In a manner that would result in a load on the gate. -
Page 11: Attaching To The Anchor
User Instruction Manual Kingspan SafePro 2 Anchor and Cable System 6.0 Pre-Use & In Use Checks 6.4 Attaching to the Anchor Access to the Anchor should be gained from a position of safety. If necessary the user should use other safety equipment, such as a twintailed lanyard or access platform, to facilitate safe access to the safety system. -
Page 12: Following Installation (Anchor)
Anchor and where this information can be found – The next service date. 7.2 Training The Certified Kingspan Installer should provide the end user with training on how to use the Anchor and user equipment.This may involve an additional cost. -
Page 13: Typical Anchors (Anchor)
User Instruction Manual Kingspan SafePro 2 Anchor and Cable System r and Cable System 8.0 Typical Anchors 3M™ DBI-SALA 3M™ DBI-SALA RoofSafe Anchor and Cable System RoofSafe Anchor and Cable System ® ® Typical Anchors Typical Anchors Section 8.0 Section 8.0... -
Page 14: Maintenance Check List (Anchor)
Check cable condition for fretting, corrosion, signs of contamination and damage Cable tension OK Check SafePro 2 Tensioners for correct thread engagement and ensure lock nuts are tight Check inline energy absorbing elements are intact Check intermediate brackets are not deployed and nylon shear pins are intact... -
Page 15: Foreword (Cable)
Thank you for purchasing a Kingspan SafePro 2 Cable System. The SafePro 2 Cable System is designed to eliminate or substantially reduce the risk of a fall which would otherwise lead to injury or death to operatives working at height. Therefore it is vitally important that it is installed, maintained and used correctly. -
Page 16: The Safepro 2 Cable System
The SafePro 2 Cable System consists of a 8mm (5 / 16”) Stainless Steel horizontal mounted lifeline. The system is fixed to the structure via SafePro 2 Anchors. The lifeline may be supported at regular intervals by intermediate brackets. The intermediate brackets help to... -
Page 17: System Design, Installation & Fixings (Cable)
– The requirement for access and task to be performed 12.5 Quality – Availability of structural anchors Kingspan operates a quality system to ISO9001 and offers full – Ground clearance product traceability for all components. All Kingspan products – Obstacles beneath the work area are tested in accordance with current regulations and verified by –... -
Page 18: Precautions, Requirements & Exclusions (Cable)
– In the unlikely event that a fall does occur the system should not be used until it has been inspected by a Kingspan certified Installer – Do not use the Anchor(s) if it is not clearly labelled –... -
Page 19: Inspection, Maintenance, Servicing & Warranty (Cable)
All servicing requirements should be directed to Kingspan or their Certified Installer. 14.3 Warranty Full details of the warranty terms and exclusions are available under the SafePro 2 Cable System warranty, which is available as a separate document. -
Page 20: Pre-Use & In Use Checks (Cable)
Kingspan certified Installer. 3M Fall Protection recommend that only the supplied 3M Fall Protection carabiner be used with the UniGrab. Do not use equipment that is not compatible. Contact Kingspan Kingspan recommend that only the supplied Kingspan carabiner if you have any questions about compatibility. -
Page 21: Using The System (Cable)
In the event of a fall all equipment should be removed from service and inspected by a Kingspan certified Installer before it can be possibly returned to service. -
Page 22: Working On Both Sides Of The Kingspan System
UniGrab should be facing towards the side you want to walk on. want to walk on. 6.4 Working on both sides of the Kingspan System 16.4 16.4... -
Page 23: Following Installation (Cable)
(This may be provided as an additional service for which the installer is entitled to charge.) The Kingspan certified Installer should provide the end user with training on how to use the System and user equipment. -
Page 24: System Layout (Cable)
® Section 18.0 required for installation. Detailed below are examples of typical components used in a Kingspan SafePro 2 Anchor system along with the tools required for installation. It is advisable to read through these instructions before beginning the installation. -
Page 25: System Components (Cable)
User Instruction Manual Kingspan SafePro 2 Anchor and Cable System 19.0 System Components SYSTEMEYE/PIN TENSIONER8mm GUIDE8mm SafePro 2 System Eye & Pin 8mm 0.8 kN Hex Swage Tensioner 8mm Intermediate Guide CORNER90 CORNER45 VARIGUIDE 8mm 90° Corner 8mm 45° Corner... -
Page 26: Maintenance Check List (Cable)
Check cable condition for fretting, corrosion, signs of contamination and damage Cable tension OK Check SafePro 2 Tensioners for correct thread engagement and ensure lock nuts are tight Check inline energy absorbing elements are intact Check intermediate brackets are not deployed and nylon shear pins are intact... -
Page 27: Rescue & Emergency Procedure
A sensible strategy is to employ two workers for the task at height, so if one falls, the other can assist in the rescue, or can summon help. High visibility clothing, whistles, and personal alarms are all items worthy of consideration. Please contact Kingspan for more details or visit our web page: www.kingspanpanels.com... - Page 28 Suggestions for, or description of, the end use or application of products or methods of working are for information only and Kingspan Limited and its subsidiaries accept no liability in respect thereof. 06/2018...
