Crestron onCue BPC-HPLIR Do Manual

DO GUIDE
BPC-HPLIR

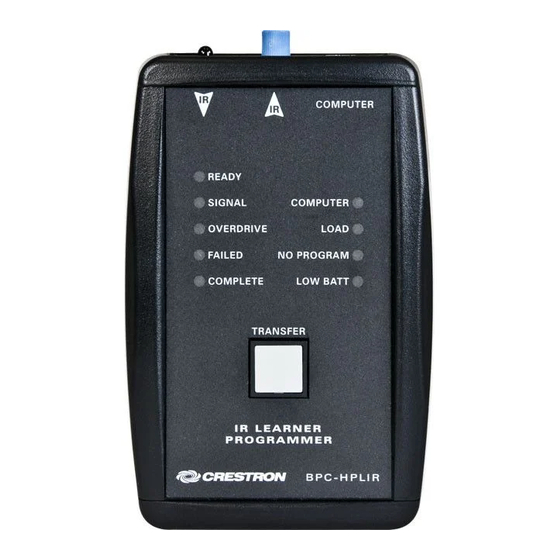

onCue IR Learner & Programmer
®
DO Install the Battery
1. Remove the battery cover on the back of the BPC-HPLIR.
2. Insert the included 9-volt battery, observing the correct polarity.
+
DO Connect the Device
Connect the BPC-HPLIR to a PC
Position the BPC-HPLIR on a level surface, and then connect it to a PC using a USB cable
(included), as shown below:
USB
BPC-HPLIR
DO Check the Box
QTY PRODUCT
1 Cable, TOSLINK
1 Cable, USB 2.0, A- B, 6' (1.83m)
1 Battery, 9V, Alkaline
Connect the Included Fiber Cable to the BPC-HPLIR:
1. Loosen the blue coupler knob (turn counterclockwise).
2. Insert the cut end of the fiber cable into the coupler.
3. Secure the cable in place by tightening the knob finger tight (turn clockwise).
IR output coupler:
IR receiver:
For optical cable to
To learn IR
access port on BPC-8
commands from
basic presentation
third-party remotes
controller
COLOR PART NUM.
2029089
2014966
2001048
COMPUTER:
USB port for USB
cable from PC to load
con guration les
