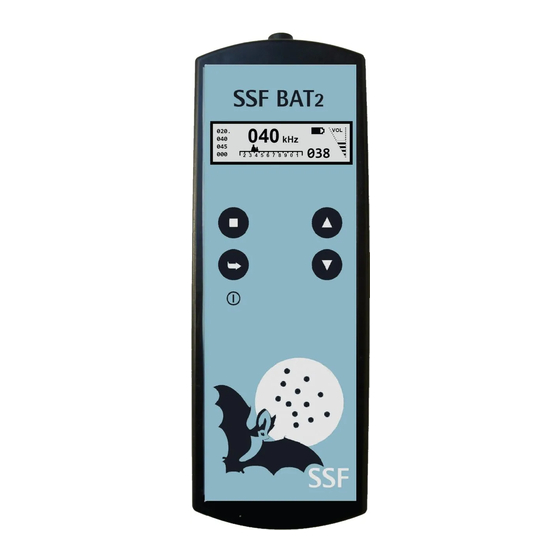

SSF BAT
Ultrasonic detector

Characteristics

• 2 parallel working ways of detection
1. manually operated: mixer mode (Heterodyne)
2. automatically operated: scanner with frequency
indicator and spectrogram of bat calls (frequency
devisor) – so no bat call gets lost anymore!
• Applicable for expert as well as for beginners
• Frequency range 15 kHz to 130 kHz infinitely
adjustable in steps of 1 kHz
• Continuous display of maximum values while scan-
ning, ideal for easy bat detection
• Up to 4 fixed frequency programmable for fast
accessing of known bat species
• Easy to handle, adjustments are saved
• Very good sensibility, because of special ultrasonic
microphone in combination with a high quality pre-
amplifier stage
• High quality of sound and volume, brilliant clear
and differentiated transfer of bat call through inte-
grated 1,5 W speaker
• Modern microprocessor technology, LCD with
adjustable backlight (which can be switched off)
• Auto shut-off for battery protection (adjustable from
1 min to ∞)
• Optimally suitable for use in eavesdrop boxes
• Indication of status of battery charge
• 3,5 mm earphone jack plug

Technical details

• power supply: 4x AA Mignon alkaline battery or rechargeable NiMH bat-
tery
• battery life according to mode of operation up to 40 hours
• power consumption ca. 30 mA
• weight including battery ca. 230 g
• dimensions ca. length=185mm, width=65 mm, height=28 mm
2
microelectronic VOLKMANN
020.
040
VOL
kHz
040
045
038
000
2 3 4 5 6 7 8 9 0 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAT 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SSF BAT 2

  • Page 1: Characteristics

    SSF BAT Ultrasonic detector Characteristics • 2 parallel working ways of detection 1. manually operated: mixer mode (Heterodyne) 2. automatically operated: scanner with frequency indicator and spectrogram of bat calls (frequency devisor) – so no bat call gets lost anymore! •...

  • Page 2: Disposal Of Electrical And Electronic Products

    Disposal of electrical and electronic products The implementation of European law in national laws and directives obliges you to dispose of consum- able goods appropriately. This serves to protect both persons and the environment. Batteries, electrical and electronic products no longer required must be disposed of separate from do- mestic waste.

  • Page 3: Table Of Contents

    Table of contents Characteristics ______________________________________________ Technical details _____________________________________________ Disposal of electrical and electronic products _____________________ Table of contents ____________________________________________ 1. Technical manual _________________________________________ Earphone access _______________________________________ Batteries ______________________________________________ 2. Quick guide _______________________________________________ Adjustments- and On-/Off- button ________________________ Up-/Down-button ______________________________________ Frequency-button ______________________________________ 3.

  • Page 4: Technical Manual

    1. Technical manual Microphone (front)  Button for changing LCD-Graphic- peak frequency and fixed Display frequency  020. 040  045  2 3 4 5 6 7 8 Up-/Down-button On-/Off-button, for frequency, volume, adjustments volume Earphone access (on the side) Speaker Battery case for 4x AA (Mignon) (back) Earphone access...

  • Page 5: Quick Guide

    2. Quick guide Adjustments- and On-/Off-button Device is switched off: short push device is switched on Device is switched on: (Also see chapter „4. Settings“ on page 8) 1x short push menu Volume (volume) 2x short push menu Store (frequency save/delete) 3x short push menu Light (LCD backlight)

  • Page 6: Handling

    3. Handling Switch On/Off Switch-On Einschalten: Taste:   Press adjustments- and On-/Off-button , and afterwards UP button within 1 sec., otherwise device automatically switches off. This procedure serves to avoid an accidential switch on of the device e. g, in a bag. After switching on device is ready for use.

  • Page 7: Volume Setting

    Adjustment of frequency is continuously variable from 15 kHz to 130 kHz. Use of frequency division & heterodyne Parallel to mixer-mode the SSF BAT2 is also scanning the whole spectrum for ultrasonic frequencies using frequency division. The located frequency will be displayed in a graphic.

  • Page 8: Settings

    Volume, Store, Light, Off. Function ends automatically after 5 sec. with no input. (Exception: „Store“ – ends after 10 sec.) SSF BAT2 saves settings after switch off. Volume Arrow keys adjust volume in 16 stages. 020.

  • Page 9: Light

    Note: Only 3 frequencies can be deleted. Light (backlight of the display) Use the arrow keys for adjustment of LCD- 020.  040  backlight in 4 levels. 045  L i g h t  1 At level 0 backlight is switched off. Note: Less backlight is good for a longer battery lifetime.

  • Page 10: Supplement

    5. Supplement Technical specifications Microphone-frequency range The graph shows the sensitivity of the built-in ultrasound microphone in the range of interest for bat calls. Maximum sensitivity is around 50 kHz. The maximum sensitivity of the elektret-microphones normally used in more simple detectors is from15 to 20 kHz.

  • Page 11: Block Diagram

    Block diagram...

  • Page 12: Overview Of Operation

    Overview of operation short push mixer frequency +/- 1 kHz page 7 long push mixer frequency fast run page 7 short push adoption of scanner frequency page 7 long push adoption of fixed frequency page 7 Settings Device is switched off: Switch on through push of button page 6 long push...
  • Page 13 Development of SSF BAT2 A special thanks goes to all the people who helped with time, input and testing. (in alphabetical order) Ulrike Binkle (without her the project would have been impossible) Dr. Wolfgang Fiedler (Vogelwarte Radolfzell) Dr. Michael Klinger (BUND)

  • Page 14: Important Information Concerning The Microphone

    In these cases the problem can be fixed only by the exchange of the microphone. With newer SSF-BAT2 devices whose serial numbers end with "S" or are marked with a green dot (the serial number is in the battery compartment), the microphone is now a plug-in device and can easily be exchanged by the customer.

  • Page 15: Instructions For A Microphone Exchange

    Instructions for a microphone exchange The work is done at your own risk. Success can not be guaranteed. If you don’t feel confident with this, please send in the detector for repairs. Step by step: You need the following tools: •...

  • Page 16: Battery Regulation

    Battery Regulation In connection with the sale of devices that need batteries or rechargeable batteries, we are obliged to give you the following information: The new regulation obliges battery manufacturers and importers to take back, sort and dispose of all old batteries. The consumer is obliged to give back used batteries in retail stores or in municipal collection points.
